5081043A
FOR OPTIMUM PERFORMANCE
BUILDINGS, VEHICLES, AND OTHER
AIRCRAFT SHOULD BE LOCATED AT
RIGHT ANGLES TO OR BEHIND THE
ANTENNA.
FOR ACCEPTABLE PERFORMANCE
OTHER AIRCRAFT SHOULD BE >3X
DISTANCE FROM TEST SET. BUILDINGS
SHOULD BE AT OBLIQUE ANGLES
OCCUPYING <20° BEAMWIDTH.
IFR-6000 TEST
SET AND
ANTENNA.
BUILDING
BUILDING
HANDLE
TNG CONNECTION
CABLE TO
TEST SET
FLAT ANTENNA
ANTENNA
PATTERN
BEAMWIDTH
± 20° VERTICAL
± 25° HORI
ZONTAL

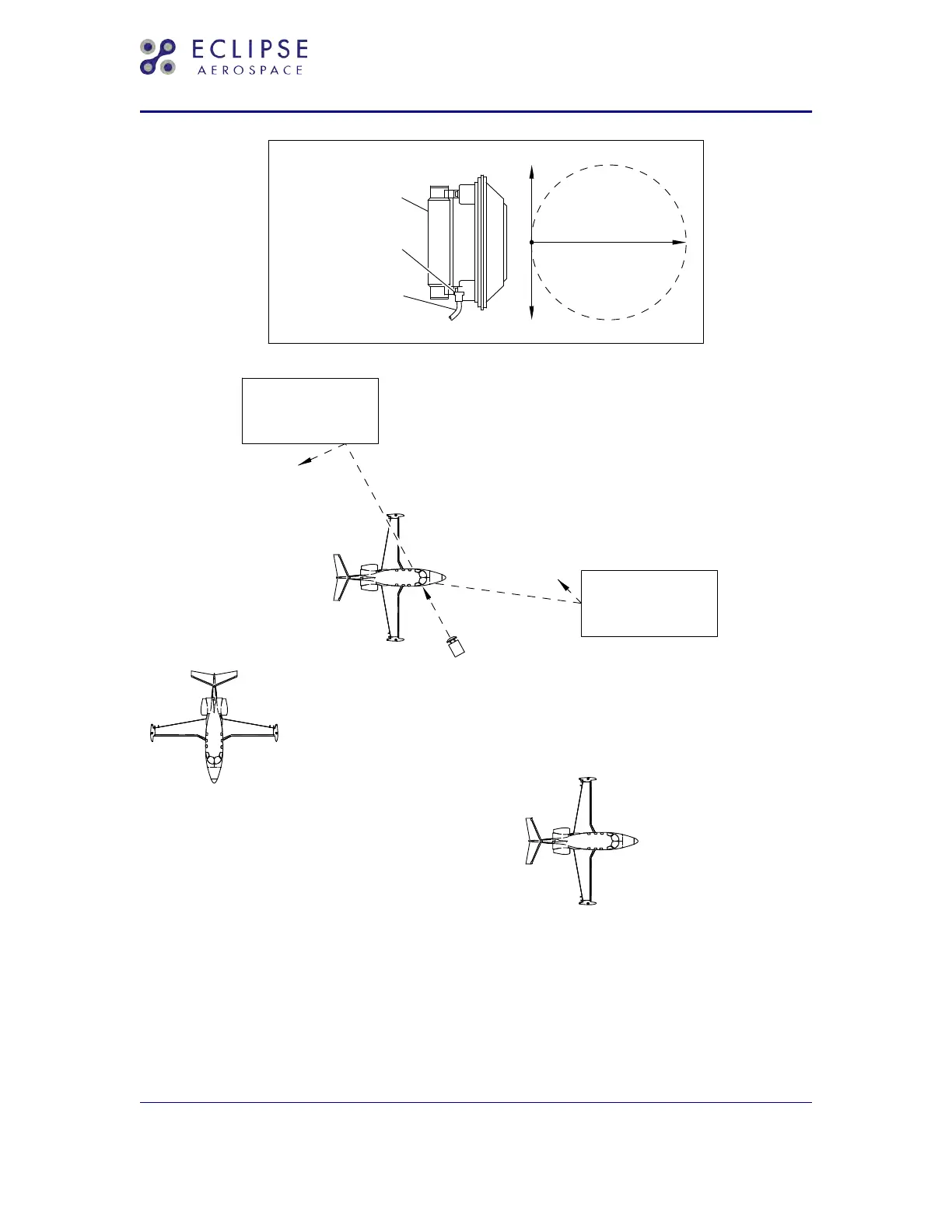

Transponder - Adjustment/Test
Figure 502 (Sheet 1 of 1)
EA500 Aircraft Maintenance Manual — 06-117751
Temporary Revision No. 34-21
EFFECTIVITY: 0001-0104, 0113-0115, 0120, 0123-0124
POST SB 500-99-002; AND 0105-0112,
0116-0119, 0121-0122, 0125-0262 PRE SB
500-99-005
34-50-20
CONFIG B
Page 538
Sep 30/20
© 2020 Eclipse Aerospace, Inc.
