STRUCTURE AND EQUIPMENT
REMOVED FOR CLARITY
NOTE:
WING
INSP
R ENGL ENG
WING

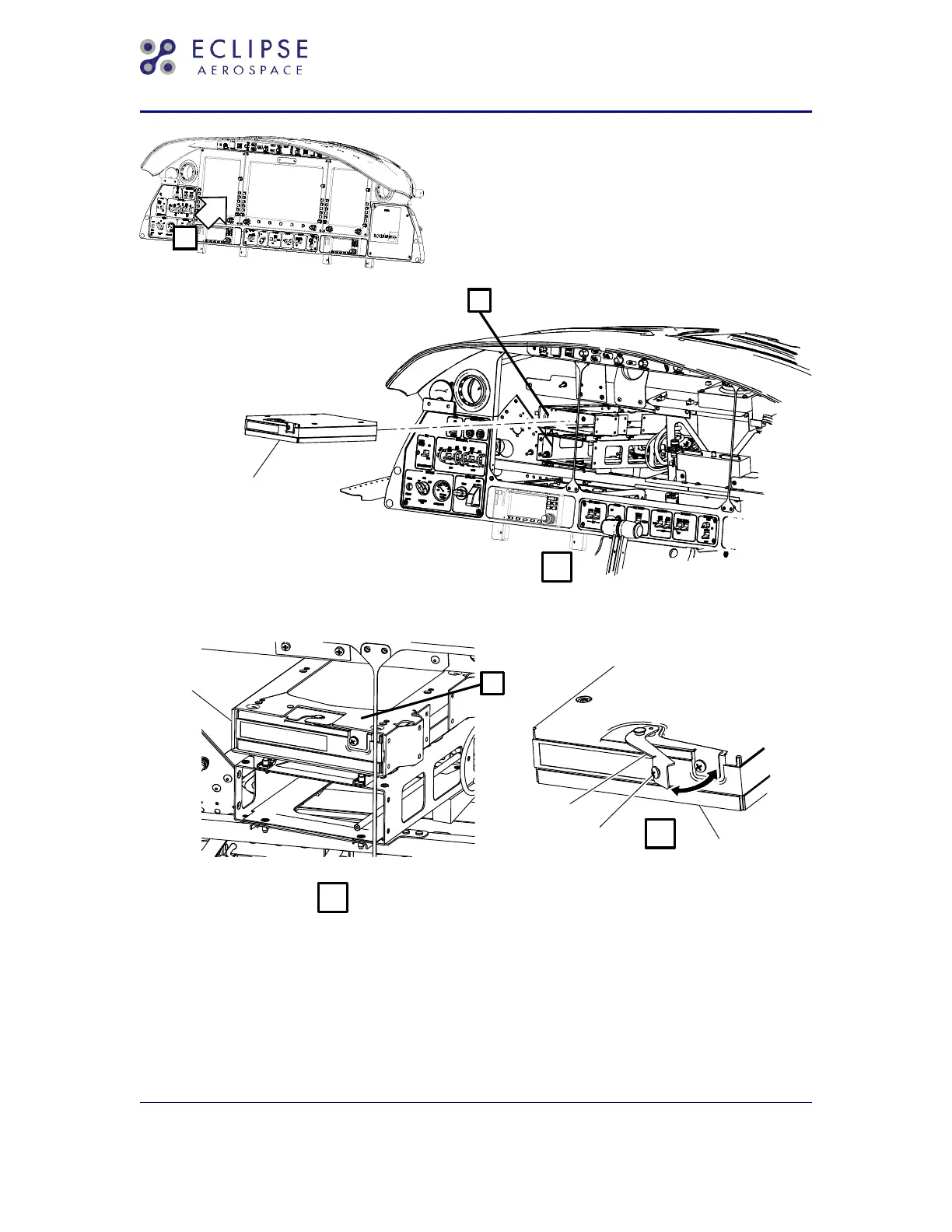

Transponder - Removal/Installation (Avio NG +1.5 display shown)
Figure 401 (Sheet 1 of 1)
EA500 Aircraft Maintenance Manual — 06-117751
Temporary Revision No. 34-21
EFFECTIVITY: ALL
34-50-21
Page 403-Inst
Sep 30/20
