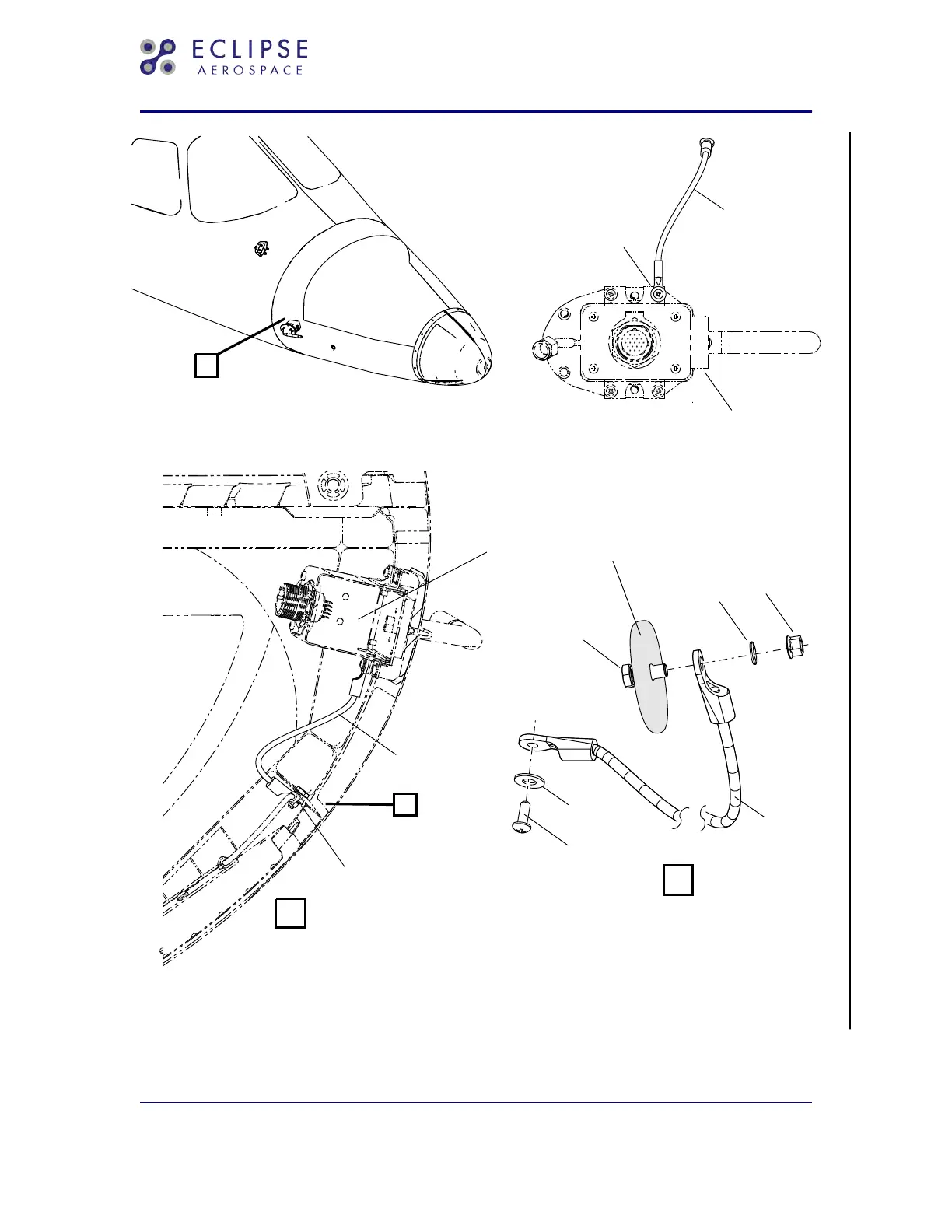

Pitot/AOA Probes - Removal/Installation
Figure 401 (Sheet 3 of 4)
EA500 Aircraft Maintenance Manual — 06-117751
Temporary Revision No. 34-21
EFFECTIVITY: ALL, POST MB 500-34-027 AND MB
500-34-028
34-10-10
CONFIG C
Page 405-Rem
Sep 30/20
© 2020 Eclipse Aerospace, Inc.
44
46
Table of Contents
Flight Environment Data - Adjustment/Test
5
General
5
Component Test Matrix
5
Equipment and Materials
6
Special Tools and Equipment
6
Job Set-Up
7
Pitot and Static System Leak Test
8
Standby Pitot/Static Probe System Leak Test
14
Outside Air Temperature Test
35
Job Close-Up
35
Pitot/Aoa Probes - Removal
41
Pitot/Aoa Probe - Installation
49
Stormscope - Description and Operation
59
Stormscope - GPS 400W Display
60
Stormscope - Adjustment/Test
63
Cardinal Bearings Test
68
Heading Input Check
69
Procedure – Upper over Fin Fairing – INSTALLED
70
WX-PA Antenna Alignment
77
Positioning the WX-PA Antenna on the over Fin Fairing
78
WX-PA Antenna Attachment
79
Stormscope — GPS 400W Display
80
Gps - Description and Operation
95
GPS — Combination Antenna Location
97
Gps - Maintenance Practices
99
General Operating Information
100
Power
100
Menus
100
Power on and Reset GPS 400W
101
GPS 400W Panel – Layout
109
GPS 400W Panel – MAIN ARINC 429 CONFIG Settings
110
GPS 400W Panel – MAIN RS232 CONFIG Settings
111
GPS 400W Panel – MAIN SYSTEM CONFIG – Fuel Settings
112
GPS 400W Panel – MAIN SYSTEM CONFIG – Terrain Settings
113
GPS 400W Panel – MAIN SYSTEM CONFIG – Discretes Settings
114
GPS 400W Panel – MAIN INPUTS 1 Display
115
GPS 400W Panel – MAIN LIGHTING Settings
116
GPS 400W Panel – GPS VERTICAL OFFSET Settings
117
GPS 400W Panel – STORMSCOPE CONFIG Settings
118
GPS 400W Panel – aux Page Group & CROSSFILL Settings
119
GPS 400W Panel – AIRSPACE ALARMS Settings
121
GPS 400W Panel – CDI / ALARMS Settings
122
GPS 400W Panel – UNITS / MAG VAR Settings
123
GPS 400W Panel – POSITION FORMAT / MAP DATUM Settings
124
GPS 400W Panel – DATE / TIME Settings
125
GPS 400W Panel – DISPLAY Settings
126
GPS 400W Panel – NEAREST AIRPORT CRITERIA Settings
127
GPS 400W Panel – SBAS SELECTION Settings
128
GPS 400W Panel – DATA FIELD CONFIGURATION Settings
129
GPS 400W – Standby Altitude/Airspeed Indication Option
130
Gps 3- Maintenance Practices
131
GDL 8X Install Tool: Unit Information
134
Gps - Adjustment/Test
139
Gps 3- Removal
141
Gps - Removal
143
Gps - Installation
145
GPS - Removal/Installation
147
Gps 3 - Installation
149
GPS 3 - Removal/Installation
150
Gps 3 Mount - Removal
155
GPS 3 Mount - Removal/Installation
156
Gps 3 Mount - Installation
159
Gps 2 Antenna Splitter - Removal
163
GPS 2 Antenna Splitter - Removal/Installation
164
Gps 2 Antenna Splitter - Installation
165
Transponder - Description and Operation
167
Transponder with Ads-B out – Maintenance Practices
171
Test Setup
174
Transponder - Adjustment/Test
179
