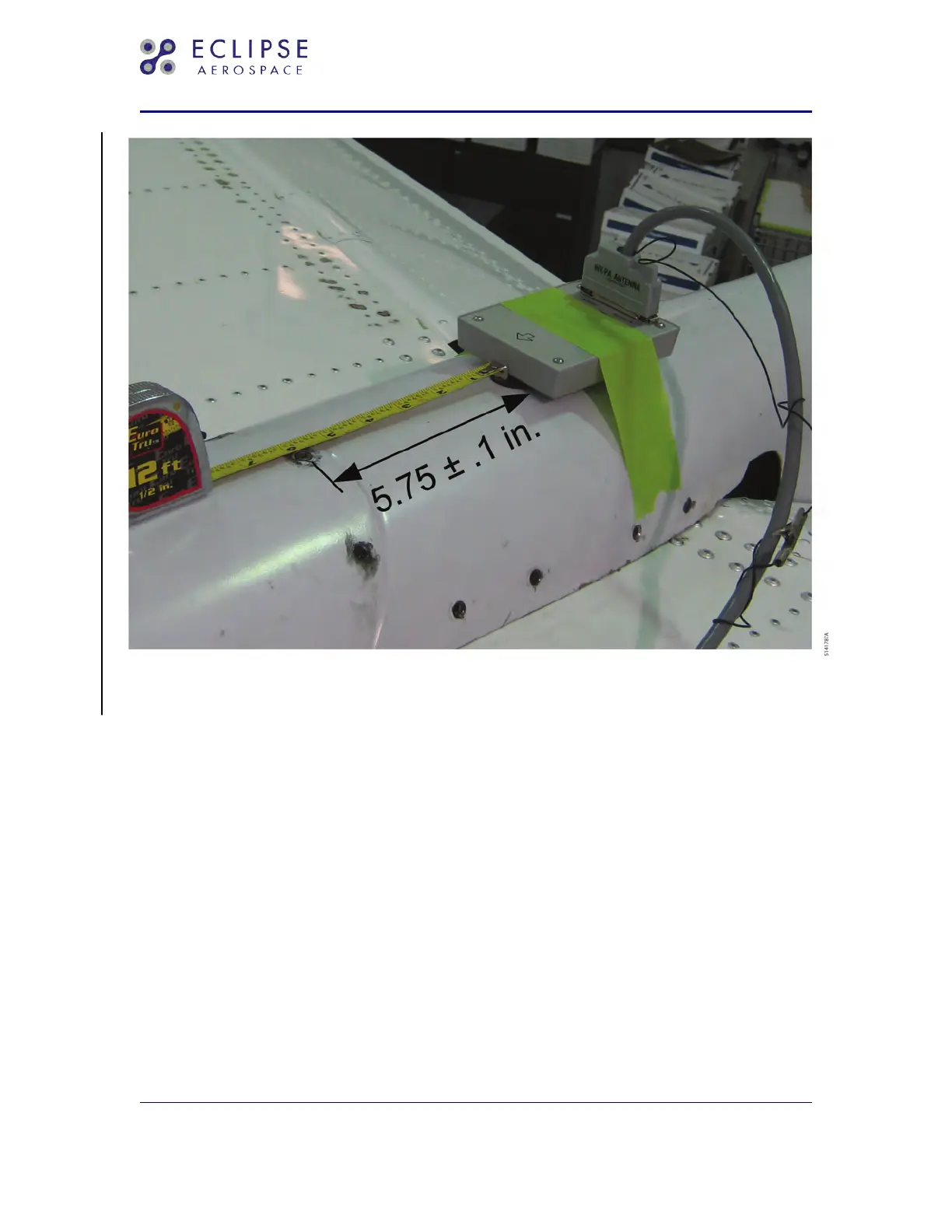

Positioning the WX-PA Antenna on the Over Fin Fairing
Figure 502 (Sheet 1 of 1)
EA500 Aircraft Maintenance Manual — 06-117751
Temporary Revision No. 34-21
EFFECTIVITY: 0001 - 0008, 0010 - 0050, 0052, 0054 -
0267 POST SB 500-31-024
34-40-50
CONFIG B
Page 512
Sep 30/20
© 2020 Eclipse Aerospace, Inc.
