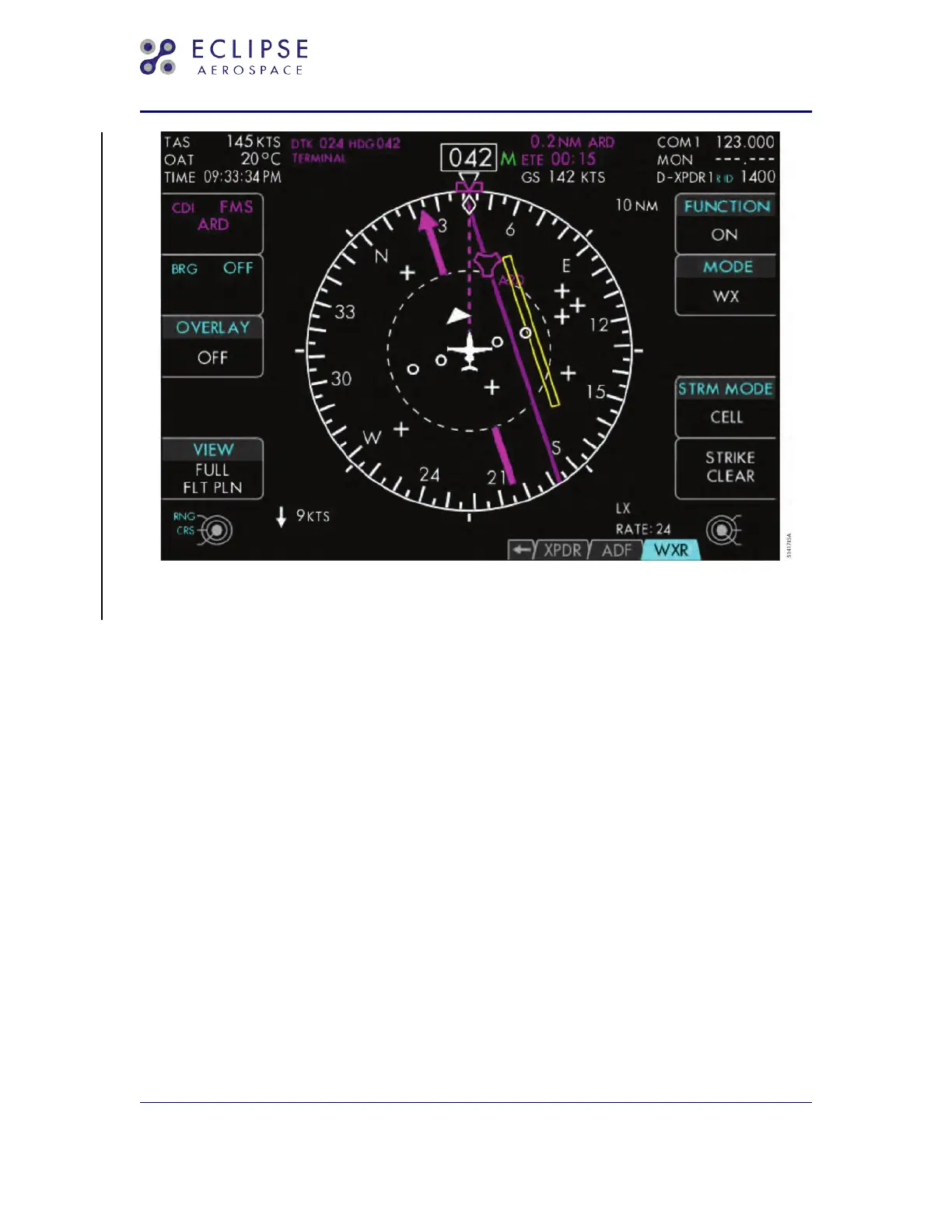

PFD Stormscope Overlay (Cell Mode / Strike Mode)
Figure 504 (Sheet 1 of 1)
EA500 Aircraft Maintenance Manual — 06-117751
Temporary Revision No. 34-21
EFFECTIVITY: 0001 - 0008, 0010 - 0050, 0052, 0054 -
0267 POST SB 500-31-024
34-40-50
CONFIG B
Page 514
Sep 30/20
