Eco HCAT TE 0121 - Equivalent Corresponding Length, 90° Curve and Complete Siphon; Gas Content; Intake Piping; Size and Position of Connections

HCAT TE - HCAN TE
9English 04/03
EQUIVALENT CORRESPONDING LENGTH, 90° CURVE AND COMPLETE SIPHON
90° curve m eq. 0,40 0,42 0,48 0,50 0,60 0,80 1,00 1,20
Siphon m eq. 1,60 1,68 1,92 2,00 2,40 3,20 4,00 4,80
Pipe diameter Øi / Øe 8/10 10/12 14/16 16/18 20/22 26/28 33/35 39/42
Differenza di carica tra tubazione invernale ed estiva
Kg. 0,900 0,900 0,900 0,900 0,900 1,600 1,600 1,600 1,600 2,500 2,500
Size 0011 0021 0025 0031 0041 0051 0061 0071 0091 0101 0121
NOTE: GAS CONTENT
If the length of pipe in the heat pump unit generates a dif-
ference between the winter and summer gas content
greater than the quantities indicated in the table, include a
supplementary liquid receiver in the liquid pipe.
INTAKE PIPING
Flared couplings are used for all models.To connect, proceed
as follows:
1. Prepare the end of the pipe, creating the correctly shaped
flare.
2. Connect the prepared pipe to the intake pipe shut-off

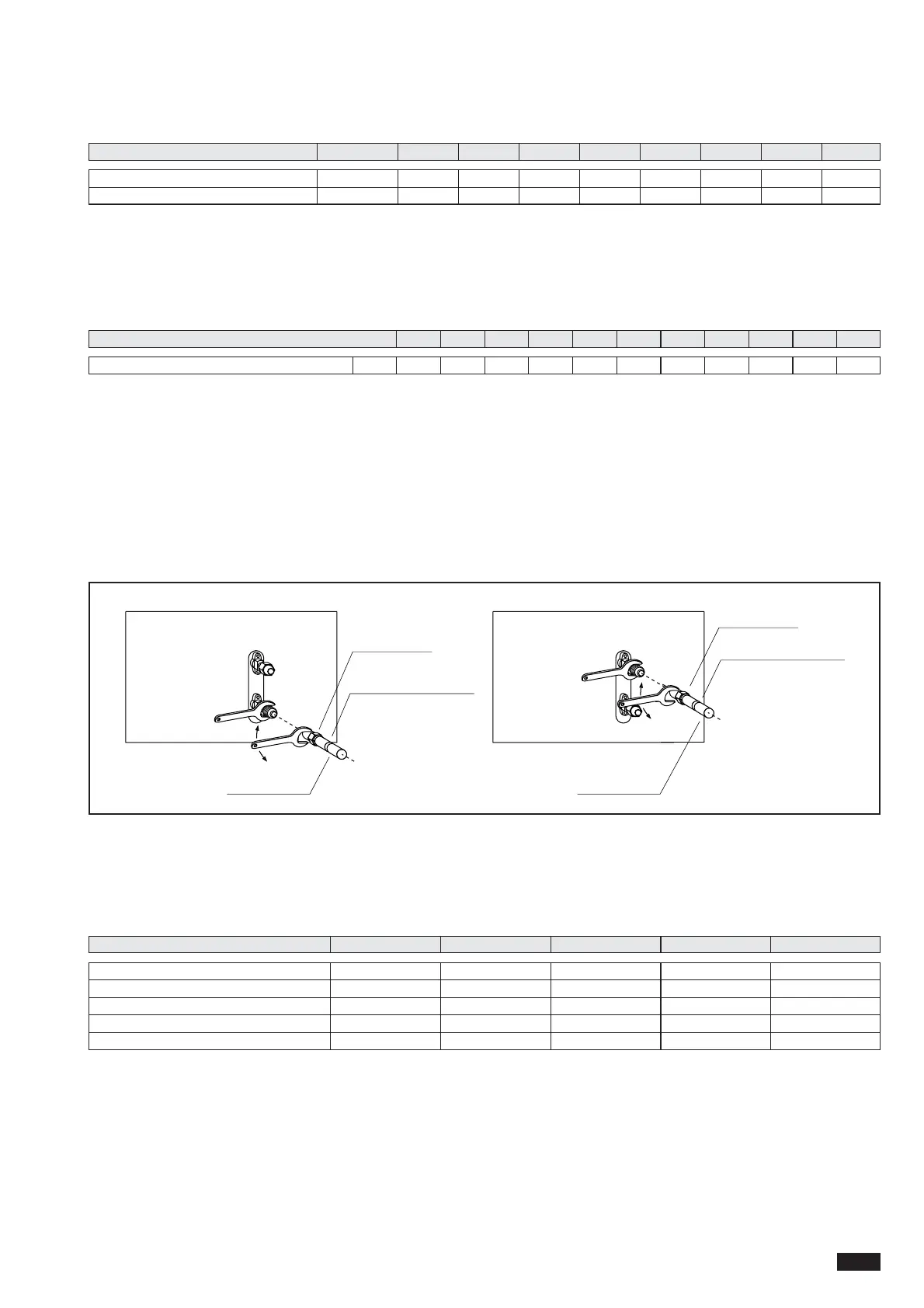

valve using two spanners as shown in the figure below.
Liquid piping
Flared couplings are used for all models.To connect, proceed
as follows:
1. Prepare the end of the pipe, creating the correctly shaped
flare.
2. Connect the prepared pipe to the liquid pipe shut-off
valve using two spanners as shown in the figure below.
NB: The use of a flare connected directly to the piping lim-
its impurities inside the pipe. All pipes must be perfectly
clean (clean piping with nitrogen or dry air before con-
necting to the two units) and free from moisture to allow
efficient venting.
Union
Flanged stub pipe
Gas line Liquid line
Union
Flanged stub pipe
SIZE AND POSITION OF CONNECTIONS
Size 0011÷0031 0041 0051-0061 0071-0091 0101÷0121
A (mm) 91,5 91,5 91,5 93 45
B (mm) 102 102 102 140 153
C (mm) 202 202 202 240 100
gas connection (mm/inch) 15,9-5/8” 19,05-3/4” 19,05-3/4” 15,90-5/8” 18
liquid connection (mm/inch) 9,52-3/8” 9,52-3/8” 12,7-1/2” 22,22-7/8” 28
