HCAT TE and HCAN TE condenser units can be identi-
fied by the:
Packaging label
Giving the data identifying the product.
Rating plate
Giving the technical and performance data of the unit.
If lost, ask the After Sales Service for a duplicate.
Tampering with or
the removal or
absence of rating plates or
other means enabling the
unit to be identified causes
problems during installa-
tion and maintenance.
IDENTIFICATION
MODEL:
VOLTAGE:
CODE:
De' Longhi S.p.a. - 31100 Treviso / Italia
Via L.Seitz, 47 - tel. 04224131 fax 0422413659
COOLING CAPACITY ------------------- kW
HEATING CAPACITY ------------------- kW
REFRIGERANT TYPE -------------------
REFRIGERANT CONTENT ------------------- Kg
MAXIMUM PRESSURE ------------------- bar
MAIN ELECTRICAL POWER SUPPLY ------------------- V---Hz
AUXILIARY ELECTRICAL POWER SUPPLY ------------------- V---Hz
MAX. ABSORBED POWER ------------------- kW
MAX. ABSORBED CURRENT ------------------- A
START-UP CURRENT ------------------- A
ELECTRICAL WIRING DIAGRAM ------------------- N°
OPERATING WEIGHT ------------------- Kg
YEAR OF FABRICATION -------------------

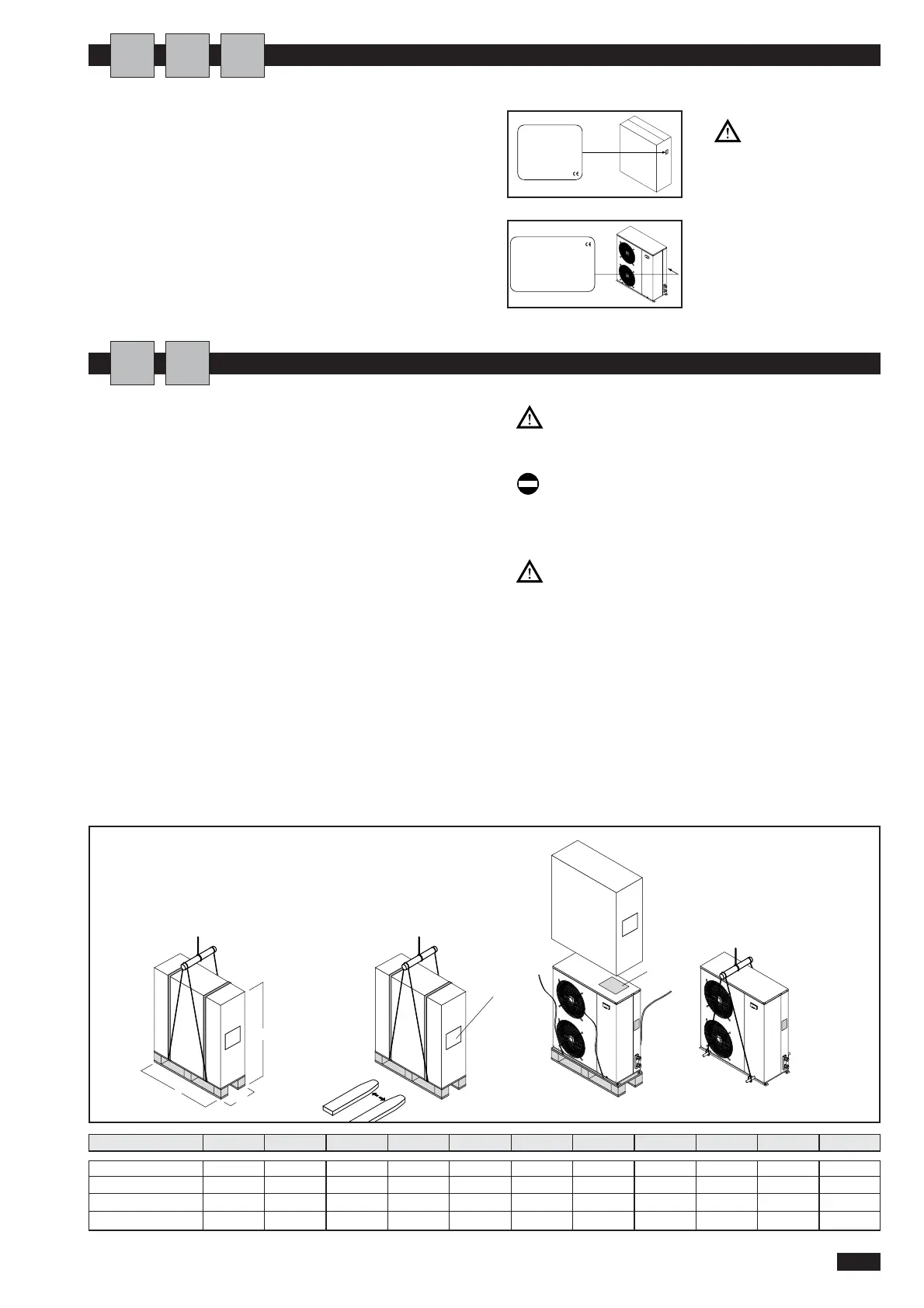

RECEIVING AND HANDLING THE PRODUCT
HCAT TE and HCAT TE condenser units are supplied
accompanied by:
- instruction manual;
- guarantee certificate;
-CE declaration;
These are contained in a plastic bag (A) attached to the
top of the unit.
The unit should always be handled by qualified personnel
using equipment adequate for the weight of the condenser
unit. If a forklift truck is used, insert the forks under the
bed plate, spacing the forks as wide apart as possible.
If a crane is used, pass the cables through the bottom of
the bed plate, making sure they do not exert pressure on
the unit. Once the packaging has been removed, the unit
can be lifted and moved by inserting two metal tubes (max.
diameter: 1/2") into the feet provided for this purpose and
using suitable handling equipment.
The instruction manual is an integral part of the
unit and should thus be read and kept carefully.
Do not dispose of packaging materials in the
environment or leave them within reach of children
as they may represent a hazard.
The weight of the condenser unit is biased
towards the compressor side (side of the packaging
with the bar code, see figure at the foot of the page).
During transport, the condenser unit must be
kept in the vertical position.
H
P
L
A
U
A
I
I
A
BAR CODE
Dimension L 1060 1060 1060 1060 1060 1060 1060 1450 1450 1450 1450
Dimension P 460 460 460 460 460 510 510 550 550 550 550
Dimension H 880 880 880 1130 1130 1380 1380 1200 1200 1700 1700
Gross weight 80 83 85 99 114 131 138 225 228 288 291
Size 0011 0021 0025 0031 0041 0051 0061 0071 0091 0101 0121
