Eco HCAT TE 0121 - First Time Start-Up Procedure; Unit Activation and Deactivation

HCAT TE - HCAN TE
26 English 04/03

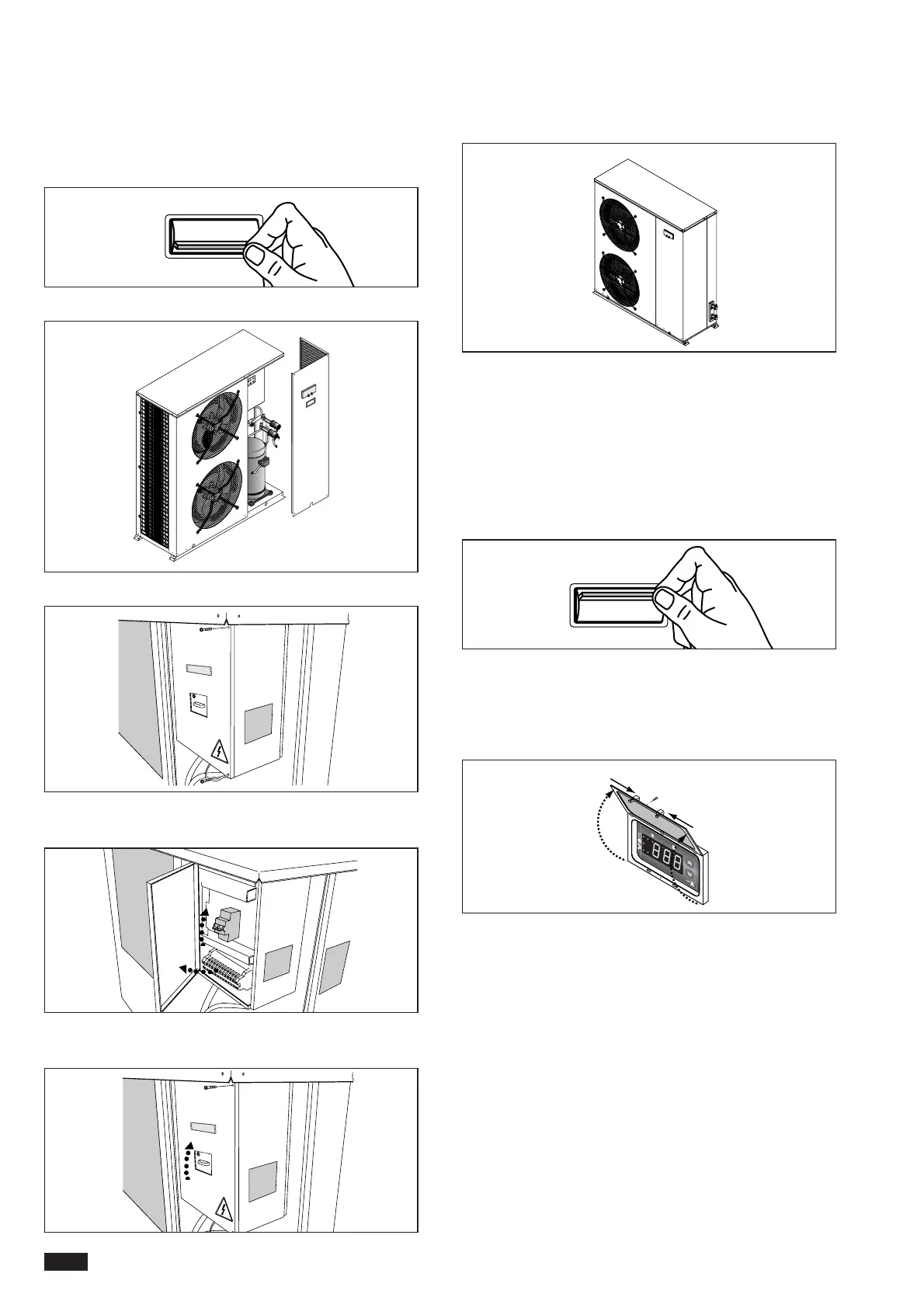

STARTING UP FOR THE FIRST TIME (after two hours)
Before activating the condenser unit:
-
Make sure the remote mains switch QF1 is in the OFF position;
- Remove the inspection panel;
- Remove the door of the electrical panel,setting QS1 to OFF
- Place the compressor thermal overload switch QM1 in
the ON position;
-Close the electrical panel door and fasten the screws
-
Place the main switch QS of the appliance in the ON position
- Replace the inspection panel
-Place the main switch of the unit QF (outside of the unit)
in the “ON” position
ACTIVATING AND DEACTIVATING THE UNIT
- Place the remote switch SA1 (if present) in the ON position;
- Set the remote keyboard A6 (if present) to ON.
- The ACTIVATION and DEACTIVATION operations are
controlled by the combined HED SE or HEN S internal unit.
To access the control panel, open the door:
- remove the screw 1;
- press the points (2) simultaneously and lift the door (3)
