Installing the clamping ring version
1. Insert the transducer into the flow fitting or welded-on ring and tighten using the
clamping rings.
2. Establish the equipotential bonding between the wall-mounted transmitter housing
(stud bolt M4) and the piping system (e.g. clamping ring screw on the transducer).
Installing the flange version
1. Insert the transmitter with integrated transducer into the flow fitting or welded-on
flange in the case of tank wall installation and secure with 4 screws.
2. Establish the equipotential bonding between the wall-mounted transmitter housing
(stud bolt M4) and the piping system (e.g. flange screw on the transducer).

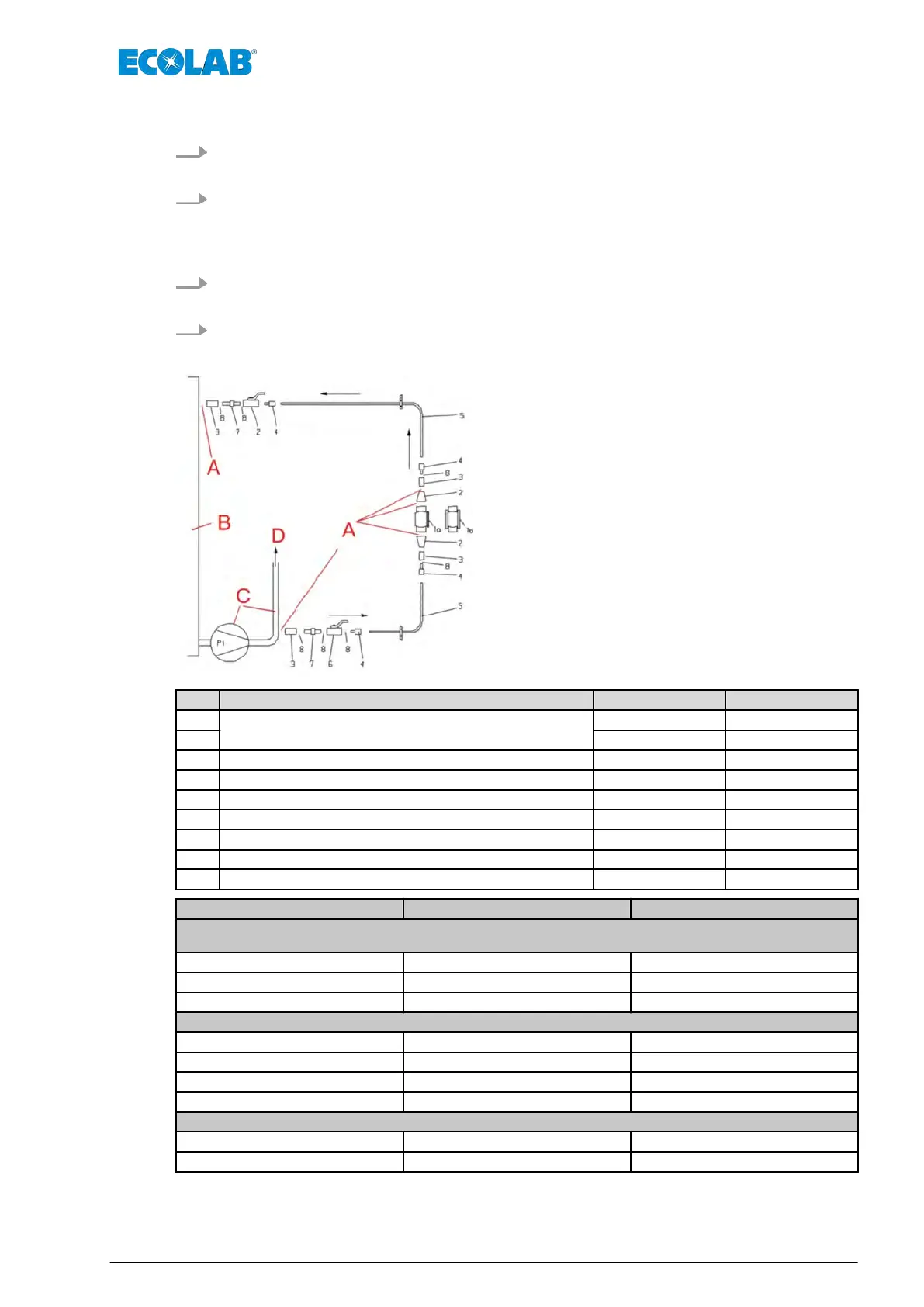

Layout of the measuring point in bypass
A To be welded during assembly
B Stackable solution tank
C Delivery pump and pipes, provided on-site
D Cleaning circuit
Item Designation Art. no. EBS No.
1a
1 x Flow housing DN 40 (clamping ring attachment)
415501223 10001735
1b 415501261 on request
2 2 x Reduction d 42,6-26,9 mm concentric, V2A 415508884 on request
3 4 x Weldable connecting sleeve, G ½, V2A 415203424 on request
4 4 x Cutting ring screw connection, G ½ for pipe 12 x 1.5 415101885 on request
5 4 x Pipe 12 x 1.5 mm V2A 415031164 on request
6 2 x Ball shut-off valve, G ½, V4A 415502024 10006957
7 2 x Double nipple, ½, V2A 415203604 10001947
8 1 x Teflon sealing tape (roll) 417100813 10000597
Description Art. no. EBS No.
Process controller: (2-point controller for maintaining a constant concentration via conductivity
measurements)
PR 01- controller 230 V AC 187101 10001436
PR 01- controller 115 V AC 187102 on request
PR 01- controller 24 V AC 187103 on request
Limit monitor SPC 3: (Continuous monitoring of three independently set limit values)
SPC3, 230 V AC 187192 on request
SPC3, 24 V DC 187191 on request
SPC3, 24 V AC 187194 on request
SPC3, 115 V AC 187193 on request
Measured value display PD 01 (External display of measured values for conductivity and temperature)
PD 01, 230 V AC 187201 on request
PD 01, 115 V AC 187202 on request
Installation
25 417101558 Rev. 06-06.2021
