4.1 Notes for installation
In order to avoid inclusions of air, the meter should be installed in a vertical
metering line and vented ("bled"). The use of a filter / strainer is necessary
if crystallizing products are to be metered.

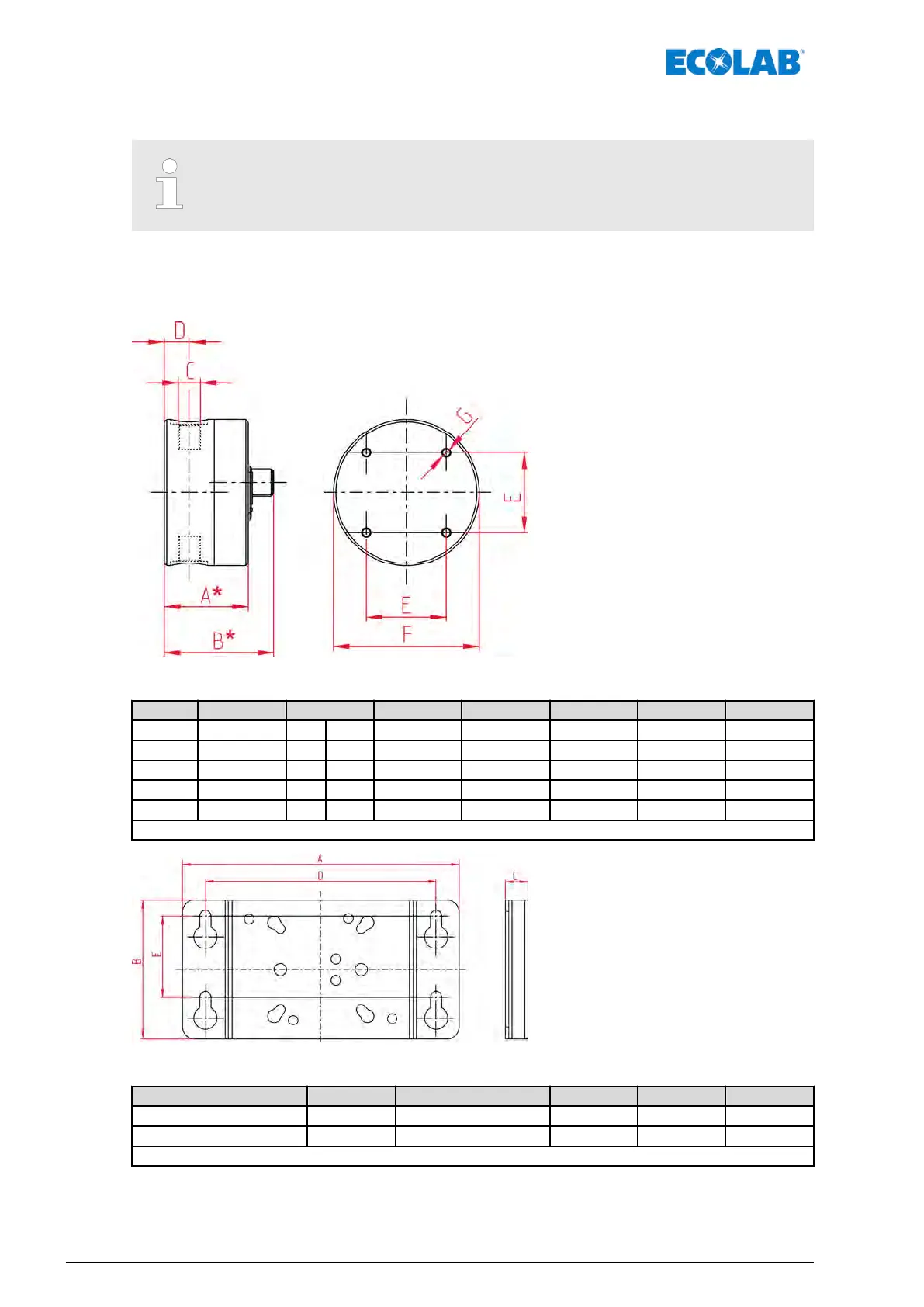

4.2 Dimensions
Fig. 2: OGM
Type A B C D E F G
00112 41 52 66 G 1/8“ 13 35 64 M4
00540 45 56 74 G 1/4" 17,8 40 73 M5
01200 53 64 82 G 3/4" 19 40 80 M5
02100 76 88,7 106,7 G 1 ¼" 30,5 60 108 M8
04500 76 88,7 106,7 G 1 ¼" 30,5 60 108 M8
* with / without angular-type connector for connecting cable
Fig. 3: Bracket
Type A [mm] B [mm] C [mm] D [mm] E
00112/00540/01200 120 60 10* 100 35
02100/04500 150 80 10 135 55
* Dimensions are not valid for PP version
Installation
10417102601 Rev. 1-12.2019
