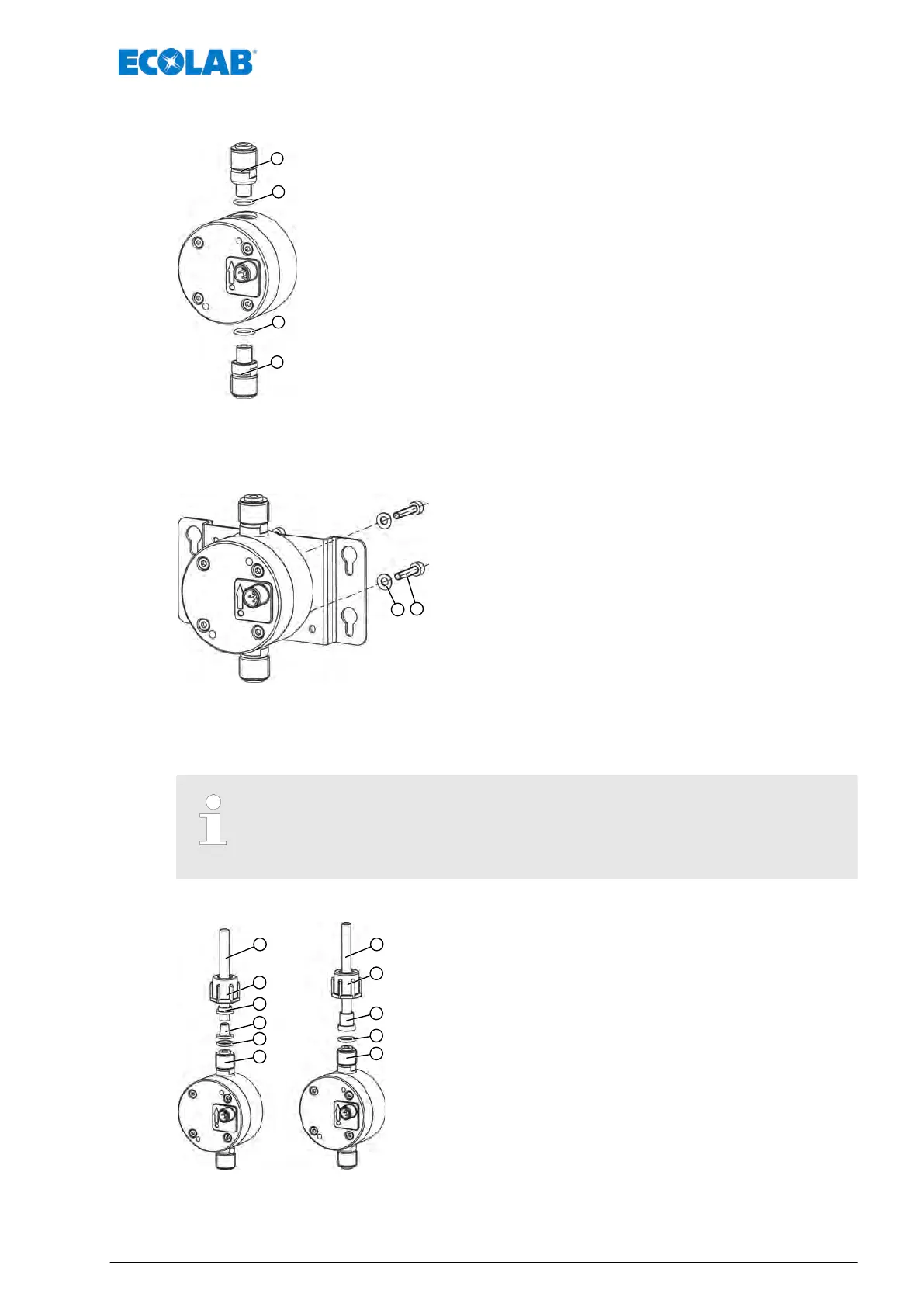

4.3 Installation of connecting adapter
1
2
1
2
Mount the connection adapters (pos. 1) available for the OGM
PLUS
in the accessories to
the input side and
output side of the oval wheel meter. See ‘accessories’ in the
operating instructions (
Ä
Chapter 1.1 ‘Notes on instructions’ on page 2).
Particular care must be taken to ensure that the associated O-rings (Item 2) are
installed in the correct position.
Instead of the hose connection fittings, a pipe can also be connected directly with an
appropriate insert.
4.4 Install bracket
1
2
1 Shims
2 Screw
The OGM
PLUS
on the console available as an accessory
(see chapter ‘accessories’ in the operating instructions
(
Ä
Chapter 1.1 ‘Notes on instructions’ on page 2) with suitable
screws (pos. 2) and washers (pos. 1).
The OGM
PLUS
can also be attached directly to a "mounting wall"
without a bracket.
4.5 Installation of hose or pipe
The OGM
PLUS
does not include the necessary hose connectors and must
be ordered from the accessories according to the size (type designation).
(see chapter
‘accessories’ of the operating instructions (
Ä
Chapter
1.1 ‘Notes on instructions’ on page 2).
1
2
3
4
5
6
1a
2
3a
5
6
1 Hose
1a pipe
2 Union nut
3 Clamping element
3a Insert element
4 Cone
5 O-Ring
6 Connecting adapter
Installation
11 417102601 Rev. 1-12.2019
