Chapter 2
17
H110M-C3V/H110M-C3D USER MANUAL

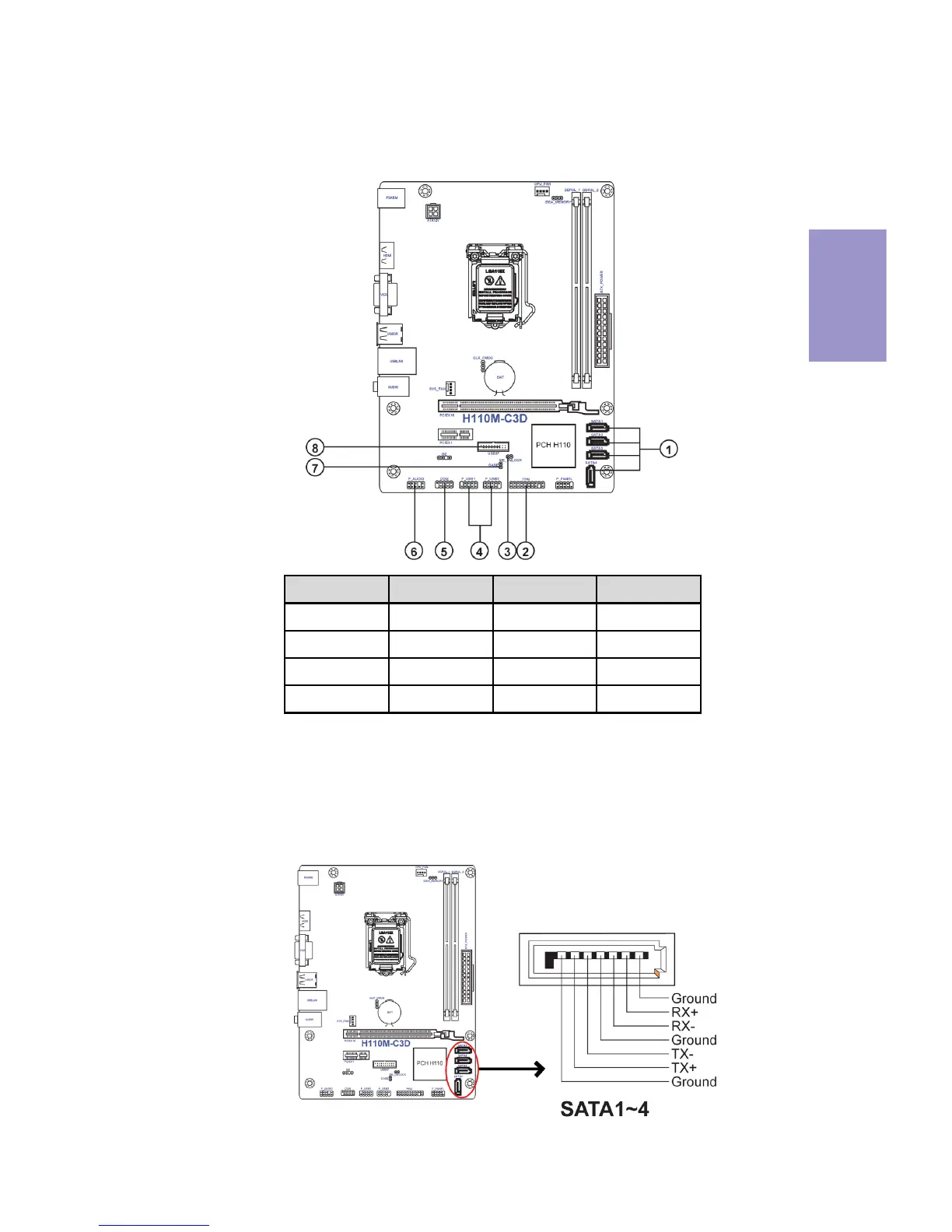

2-4-5. Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
No. Components No. Components
1 SATA1~4 5 COM
2TPM6F_AUDIO
3ME_UNLOCK7 CASE
4 F_USB1~2 8 USB3F
SATA1~4 connectors are used to support the Serial ATA 6Gb/s device, simpler disk
drive cabling and easier PC assembly. It eliminates limitations of the current
Parallel ATA interface. But maintains register compatibility and software
compatibility with Parallel ATA.
1. SATA1~4: Serial ATA III Connectors
