Chapter 3

H110M-C3V/H110M-C3D USER MANUAL

Power Management Setup

This page sets up some parameters for system power management operation.

Resume By PME (Disabled)

The system can be turned off with a software command. If you enable this item, the

system can automatically resume if there is an incoming call on the PCI/PCI-E

Modem or PCI/PCI-E LAN c

ard. You must use an ATX power supply in order to use this

feature. Use this item to do wake-up action if inserting the PCI/PCI-E card.

Resume By USB (Disabled)

This item allows you to enable or disable the USB device wakeup function from S3

mode.

EUP Function (Enabled)

This item allows user to enable or disable EUP support.

Press <Esc> to return to the Advanced Menu page.

Resume By RING (Disabled)

An input signal on the serial Ring Indicator (RI) line (in other words, an incoming call

on the modem) awakens the system from a soft off state.

Power LED Type (Dual Color LED)

This item shows the type of the Power LED.

Resume By PS2 MS (Disabled)

This item enables or disables you to allow mouse activity to awaken the system

from power saving mode.

Resume By PS2 KB (Disabled)

This item enables or disables you to allow keyboard activity to awaken the system

from power saving mode.

Main Advanced Chipset Tweak Security Boot Exit

+/- : Change Opt.

Enter/Dbl Click : Select





: Select Screen

/Click: Select Item

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit

ESC/Right Click: Exit

About Resume by Ring

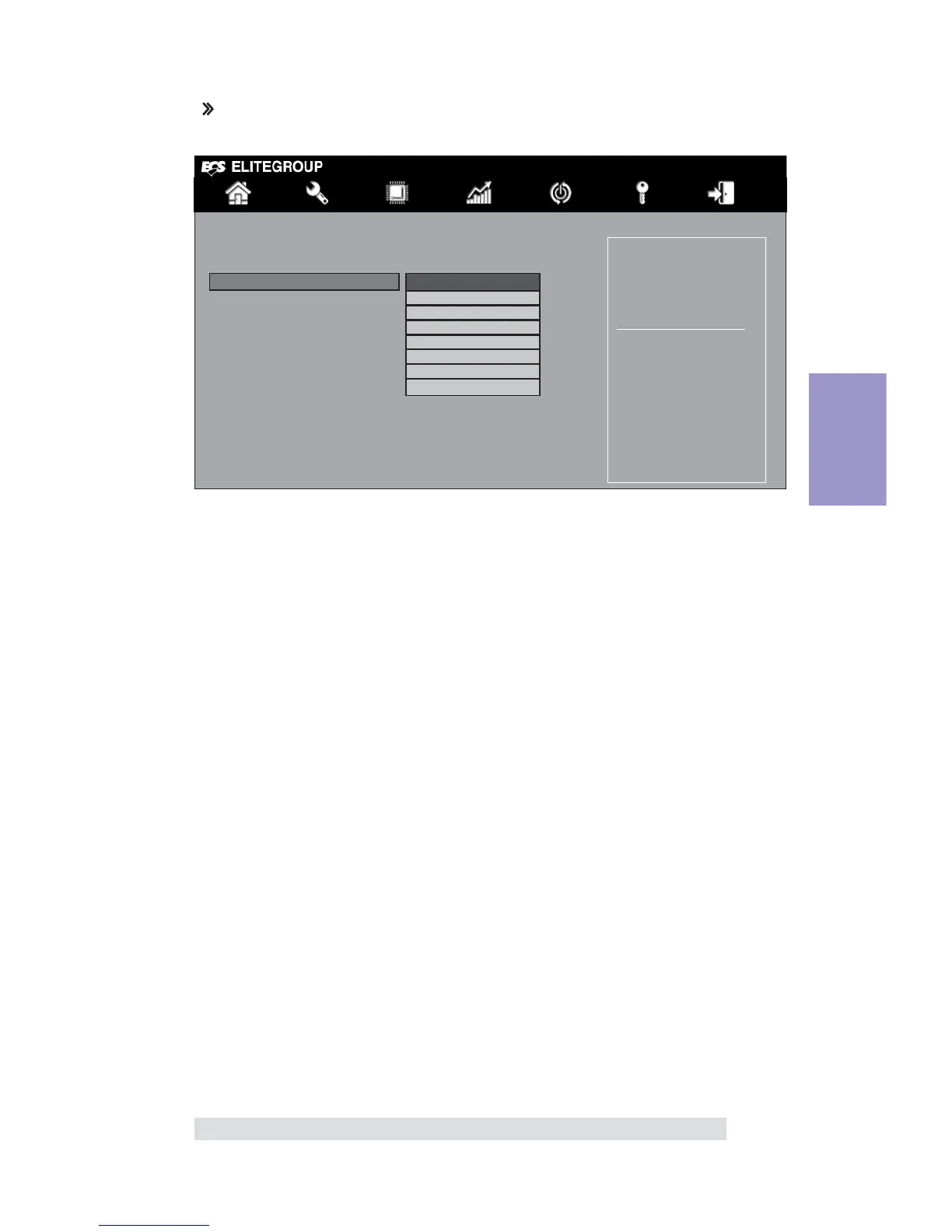

Power Management Setup

Resume By RING Disabled

Resume By PME Disabled

Resume By USB Disabled

Resume By PS2 KB Disabled

Resume By PS2 MS Disabled

Resume By RTC Alarm Disabled

EUP Function Enabled

Power LED Type Dual Color LED

Resume By RTC Alarm (Disabled)

The system can be turned off with a software command. If you enable this item,

the system can automatically resume at a fixed time based on the system’s RTC

(realtime clock). Use the items below this one to set the date and time of the

wake-up alarm. You must use an ATX power supply in order to use this feature.

Questions and Answers:

Need help?

Do you have a question about the ECS H110M-C3D and is the answer not in the manual?

ECS H110M-C3D Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR3L-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1600, 1866, 2133 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
DirectX version	12.0
USB 2.0 connectors	2
Number of SATA III connectors	4
Number of Parallel ATA connectors	-
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	SATA III
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
BIOS type	AMI
BIOS memory size	64 Mbit
Certification	CE/FCC, ErP/EuP, WHQL, WHCK
Component for	PC
Motherboard chipset	Intel® H110
Audio output channels	- channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Bundled software	CyberLink Media Suite, eBLU, eDLU, eSF
LAN controller	Realtek RTL8111H
