ECS H110M-C3D User Manual

Chapter 3
H110M-C3V/H110M-C3D USER MANUAL
34
The Advanced menu items allow you to change the settings for the CPU and other
system.
Advanced Menu
LAN Configuration
Parameters
Main Advanced Chipset Tweak Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit

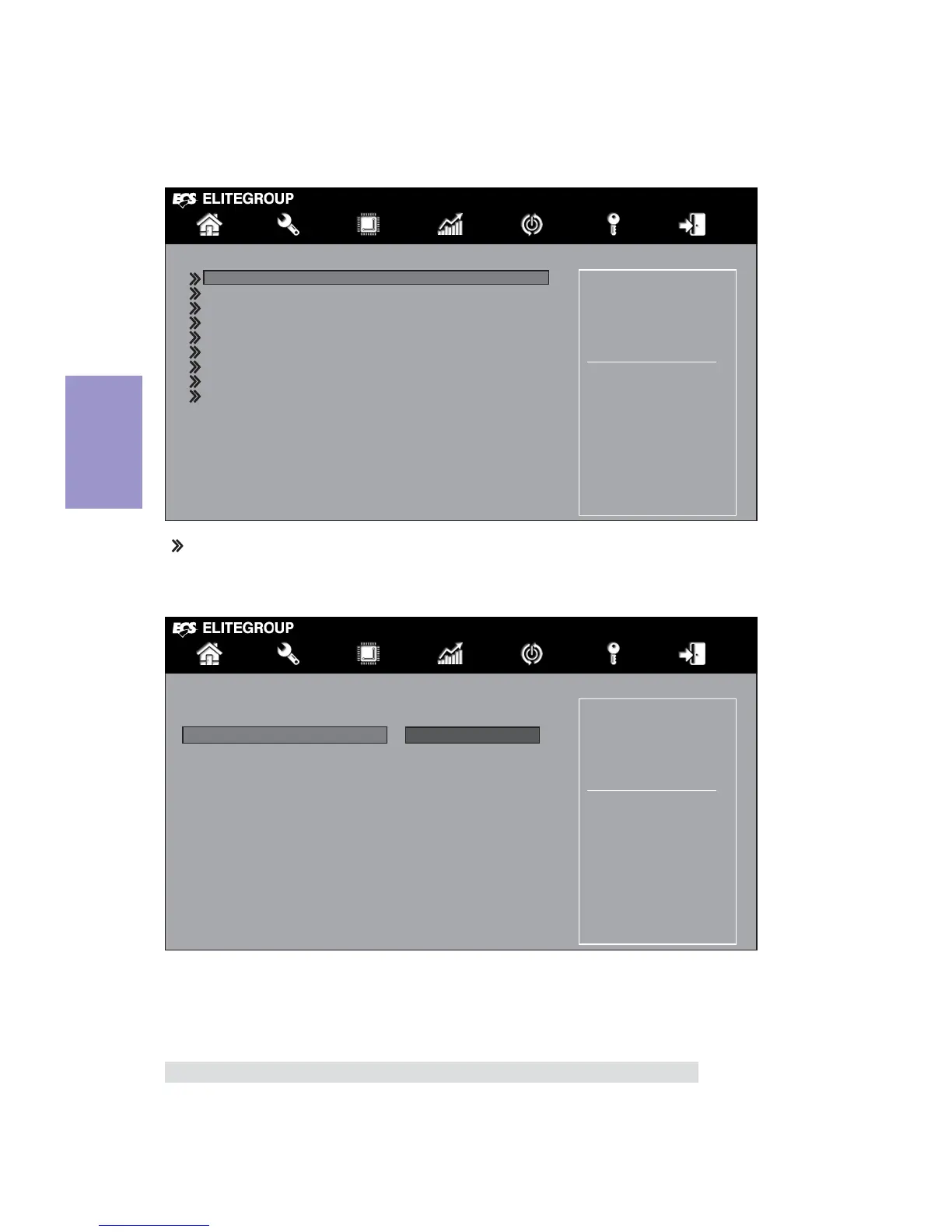

LAN Configuration
PC Health Status
Power Management Setup
ACPI Settings
CPU Configuration
SATA Configuration
USB Configuration
Super IO Configuration
Trusted Computing
LAN Configuration
The item in the menu shows the LAN-related information that the BIOS
automatically detects.
Onboard LAN Controller (Enabled)
Use this item to enable or disable Onboard LAN controller.
Press <Esc> to return to the Advanced Menu page.
Main Advanced Chipset Tweak Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
LAN Configuration
Onboard LAN Controller Enabled
Enabled/Disabled Onboard
LAN Controller

ECS H110M-C3D Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR3L-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1600, 1866, 2133 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
DirectX version	12.0
USB 2.0 connectors	2
Number of SATA III connectors	4
Number of Parallel ATA connectors	-
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	SATA III
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
BIOS type	AMI
BIOS memory size	64 Mbit
Certification	CE/FCC, ErP/EuP, WHQL, WHCK
Component for	PC
Motherboard chipset	Intel® H110
Audio output channels	- channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Bundled software	CyberLink Media Suite, eBLU, eDLU, eSF
LAN controller	Realtek RTL8111H

Weight and Dimensions

Depth	170 mm
Width	225 mm
