SATA Configuration
Use this item to show the mode of serial SATA configuration options.
SATA Mode (AHCI)
Use this it
em to select SATA mode.
Press <Esc> to return to the Advanced Menu page.
SATA Port 1~4 (Not Present)
This motherboard supports four SATA channels and each channel allows one SATA
device to be installed. Use these items to configure each device on the SATA channel.
Spin up Device (Disabled)
On an edge detect from 0 to 1, the PCH starts a COMRESET initialization sequence
to the device.
External SATA (Disabled)
Use this item to enable or disable External SATA Support.
Determines how SATA
controller(s) operate.
Main Advanced Chipset Tweak Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit

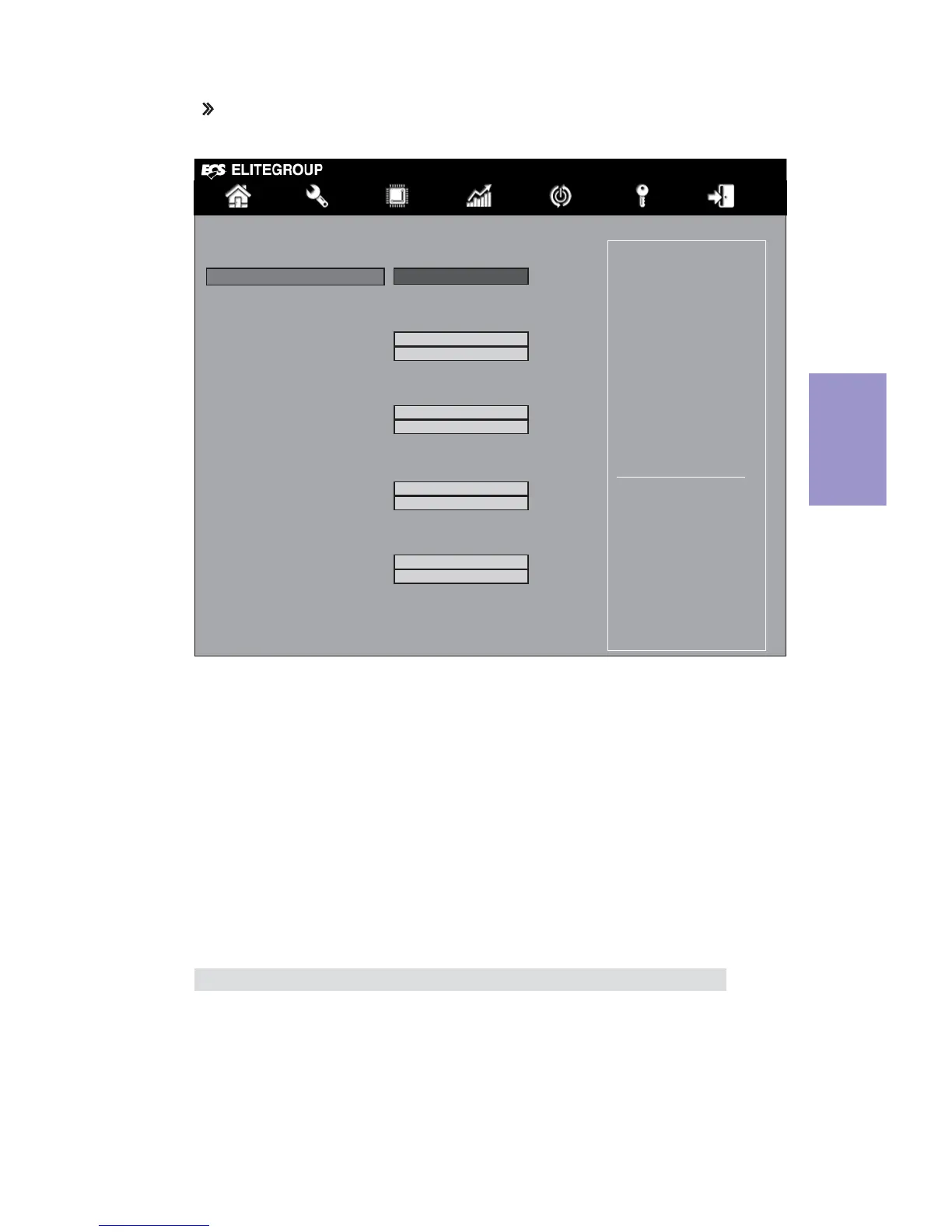

SATA Configuration
SATA Mode AHCI
SATA Port1
Not Present
Spin Up Device Disabled
External SATA Disabled
SATA Port2
Not Present
Spin Up Device Disabled
External SATA Disabled
SATA Port3
Not Present
Spin Up Device Disabled
External SATA Disabled
SATA Port4
Not Present
Spin Up Device Disabled
External SATA Disabled
