H110M-C3V/H110M-C3D USER MANUAL
The motherboard has two USB 2.0 headers supporting four USB 2.0 ports.
Additionally, some computer cases have USB ports at the front of the case. If you
have this kind of case, use auxiliary USB connector to connect the front-mounted
ports to the motherboard.

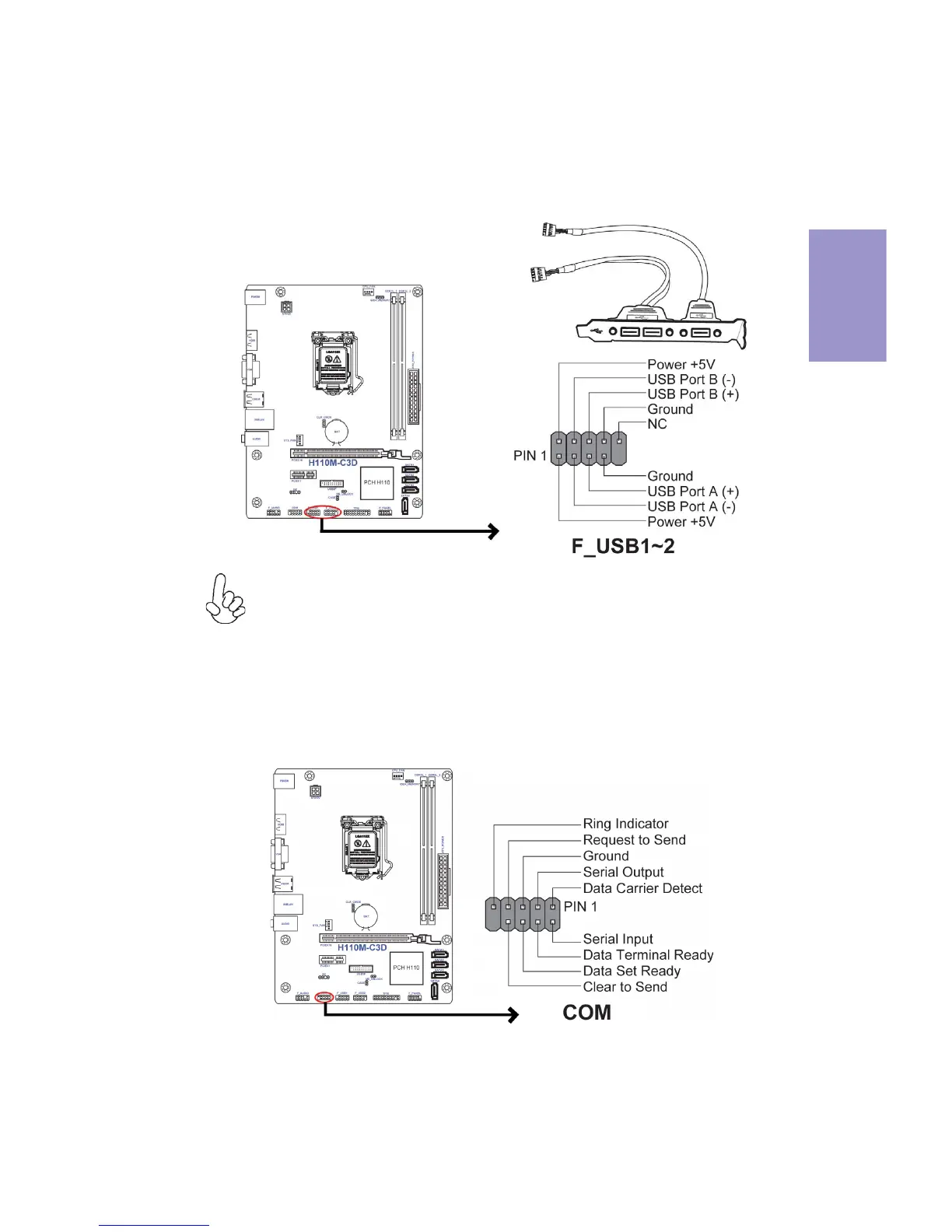

4. F_USB1~2: Front Panel USB 2.0 headers
Please make sure that the USB cable has the same pin assignment as
indicated above. A different pin assignment may cause damage or system
hang-up.
5. COM: Onboard Serial Port Header
Connect a serial port extension bracket to this header to add a serial port to your
system.

ECS H110M-C3D Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR3L-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1600, 1866, 2133 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
DirectX version	12.0
USB 2.0 connectors	2
Number of SATA III connectors	4
Number of Parallel ATA connectors	-
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	SATA III
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
BIOS type	AMI
BIOS memory size	64 Mbit
Certification	CE/FCC, ErP/EuP, WHQL, WHCK
Component for	PC
Motherboard chipset	Intel® H110
Audio output channels	- channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Bundled software	CyberLink Media Suite, eBLU, eDLU, eSF
LAN controller	Realtek RTL8111H

Weight and Dimensions

Depth	170 mm
Width	225 mm
