Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Imaging
- 34 -

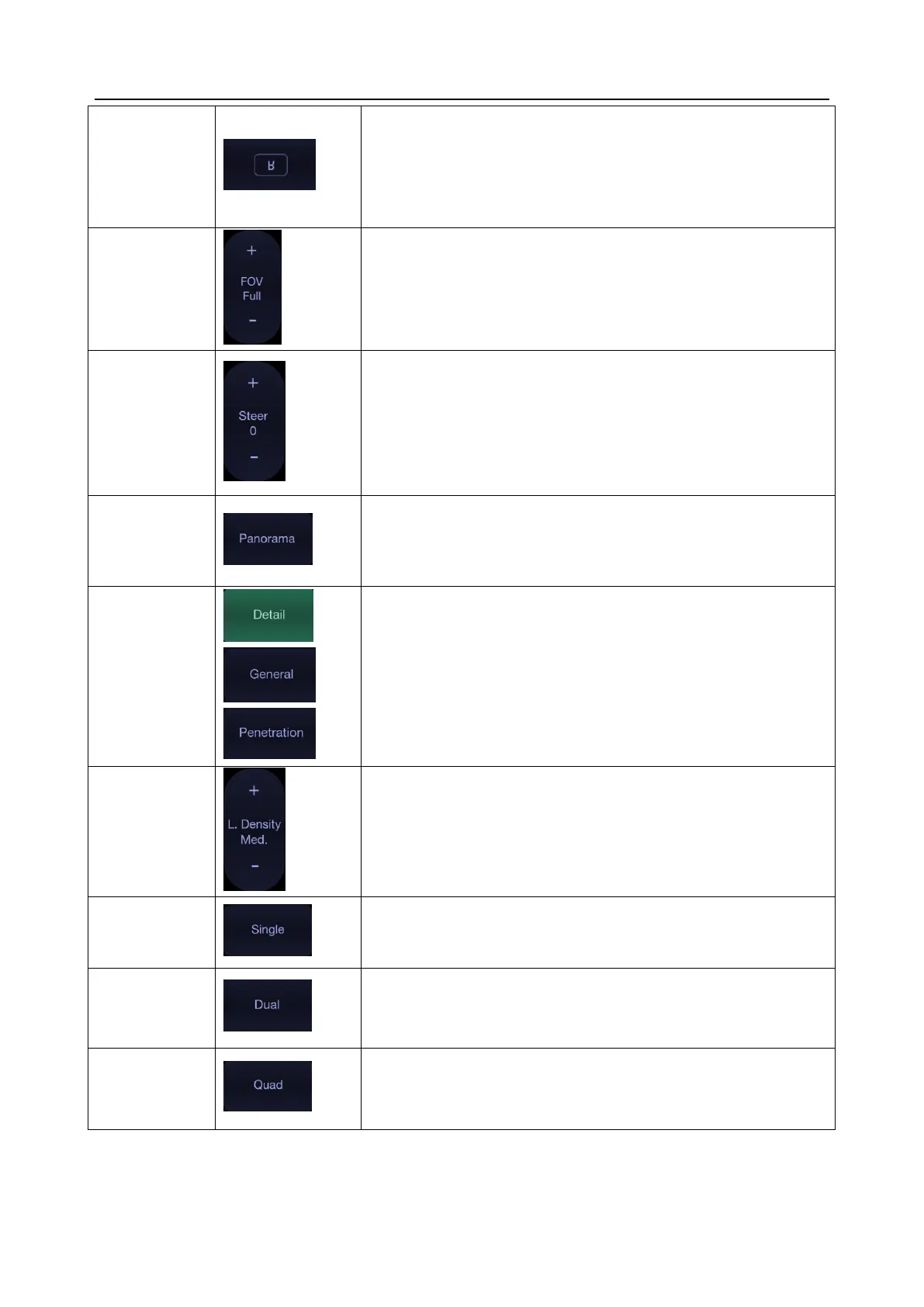

The Up/Down invert control is indicated by an upside-down R
and is used to toggle the up/down orientation of the image. The
TGC curve is also re-oriented with Invert On, so that the top of
the TGC curve corresponds to the top of the image on the
screen.
The Field of View control adjusts the image width. Full, Large,
Med. and Small settings are available. As the image becomes
narrower, the frame rate increases.
The Steer control is only available for linear transducers and
steers the B-mode image left or right, without moving the
transducer. This function can be particularly useful when
visualizing needles or other objects that are enhanced by a
perpendicular beam. Steer is not available if Spatial
Compounding, Extended FOV or Panorama is turned on.
The Panorama control invokes the Panorama function. See
section 5.10 for details.
B-mode supports presets for Detail, General, and Penetration.
Adjusts the line density to optimize the lateral resolution for the
best possible image. The higher the line density, the higher the
lateral resolution, but the lower the frame rate.
Press to display the currently active side of Dual image as a
single image.
Press to activate dual imaging mode. See section 7.3.1 Dual
Imaging for details.
Press to activate quad imaging mode. Refer to section 7.3.2
Quad Imaging for details.
