Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Measurements and Reports
- 121 -
WARNING
1. Auto IMT measurement can only be activated on a frozen image.
2. Select the Right or Left, Near or Far vessel wall, and vessel segment before generating IMT
measurement, otherwise the measurement results may not be accurate.
3. Always confirm the IMT is correctly traced prior to entering the IMT result into the report.
8.2.8. Pediatric Measurements
No.
Measurement
Group
Measurement
Item
Description
Method
Section 1: B-mode Measurements
1.1
LLV
Left lateral ventricle
Distance in
B-mode generic
measurements
1.2
RLV
Right lateral ventricle
1.3
LT Tri
Left trigone
1.4
RT Tri
Right trigone
1.5
HIP
HIP Angle
Hip joint angle
Hip Joint(See
section 8.2.8.1)
HIP d/D
Hip joint d/D ratio

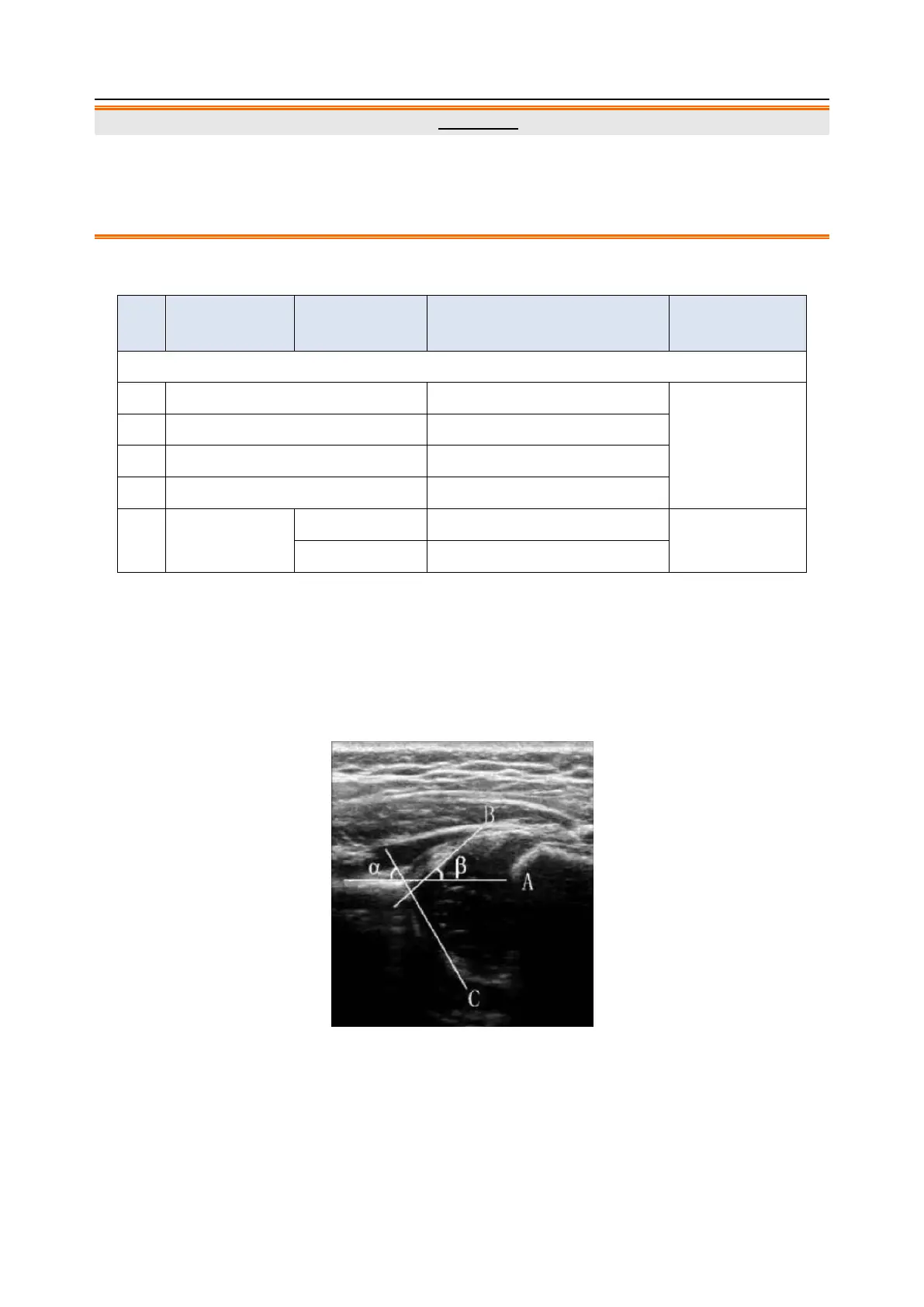

8.2.8.1. Hip Joint Measurement
Hip Joint Angle Measurement:
Hip Joint Angle Measurement is intended to evaluate the development of acetabular roof and the
subluxation of femoral head for pediatrics. This measurement is performed by adding three straight
lines on the anatomic image, thereby calculating two angles. See the illustration below.
 Line A (Baseline) connects the osseous acetabular convexity to the point where the joint capsule
and the perichondrium unite with the iliac bone;
 Line B(Inclination Line) connects the osseous acetabular convexity to the labrum acetabulare;
 Line C(Roof Line) connects the lower edge of the iliac bone to the osseous acetabular convexity.
 α is the angle between baseline and roof line.
 β is the angle between baseline and inclination line.
