5. After biopsy, press the tab release to remove the needle, and loosen the locking knob to remove
the bracket from the transducer.
 BGK-CR10UA

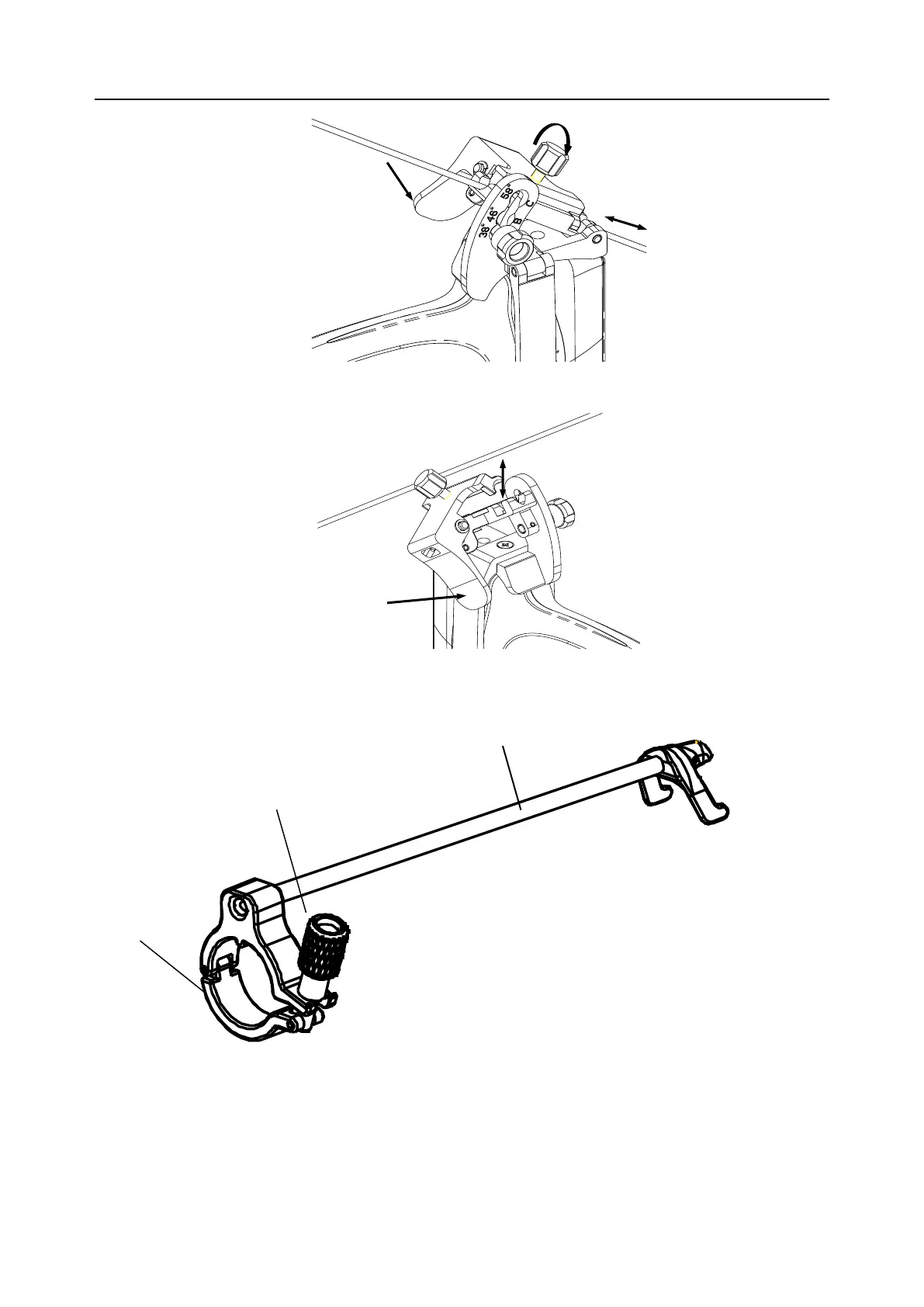

Structures:
Installation and Use Steps:
1. Place an appropriate amount of gel on transducer surface, and insert transducer into the sheath.
2. Loosen the locking knob to open the clamp of bracket. Attach the bracket to the transducer by
aligning the locating markers on the bracket and the transducer.
Clamp
Needle Guide Path
Locking Knob
