Edge-Core AS6701-32X - Figure 19: Fan Tray Status LED; Table 9: Fan Tray Status LED

Chapter 5 | Switch Management
Understanding the Switch Status LEDs
– 36 –

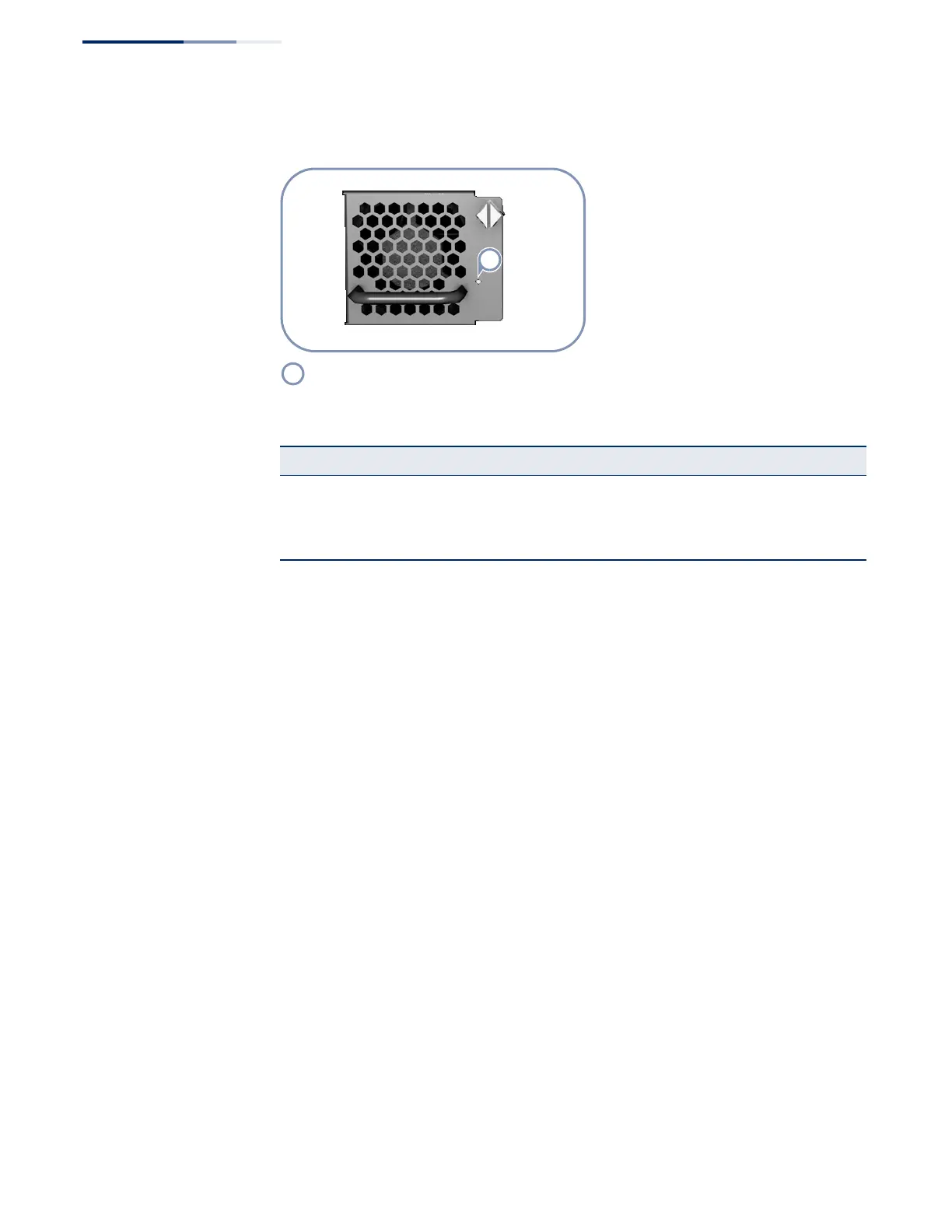

Figure 19: Fan Tray Status LED
Fan Tray Status LED
Table 9: Fan Tray Status LED
LED Condition Status
Status On Green Fan tray is operating normally.
On Red Fan tray has a fault.
Off Not properly installed or switch system is off.
