5 External Features
5.1 Meter Parts

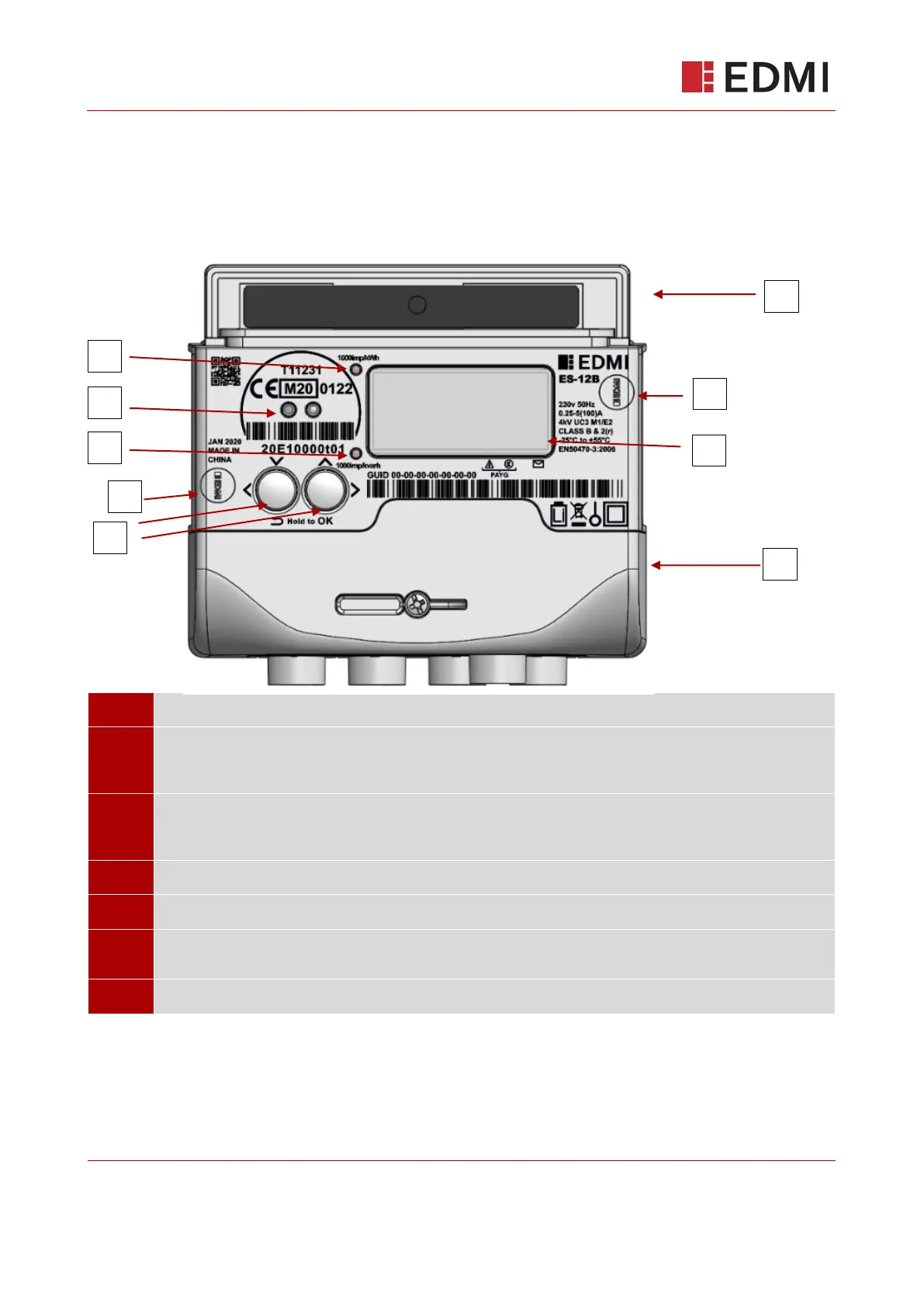

Figure 5-1: ES-12B Meter
1
Liquid Crystal Display (LCD)
2
Navigation Buttons (for menu navigation and selection):
 Left button: Press to navigate up or left (as applicable), press and hold to return.
 Right button: Press to navigate down or right (as applicable), press and hold for OK.
3
LED energy indicators:
 Top: Flashing at 1 pulse per Wh (1/1000
th
kWh)
 Bottom: Flashing at 1 pulse per varh (1/1000
th
kvarh)
4
Local optical port.
5
Tamper evident seals protecting the meter lid screws.
6
Terminal Cover. Beneath the terminal cover is the terminal block for the main supply and loads along with
the terminal block for the output 100A relay – the Load Control Switch.
7
ICHIS cover. Remove to install a Communications Hub on the meter.
1
5
2
6
4
5
3
3
7
