Edwards E2M30

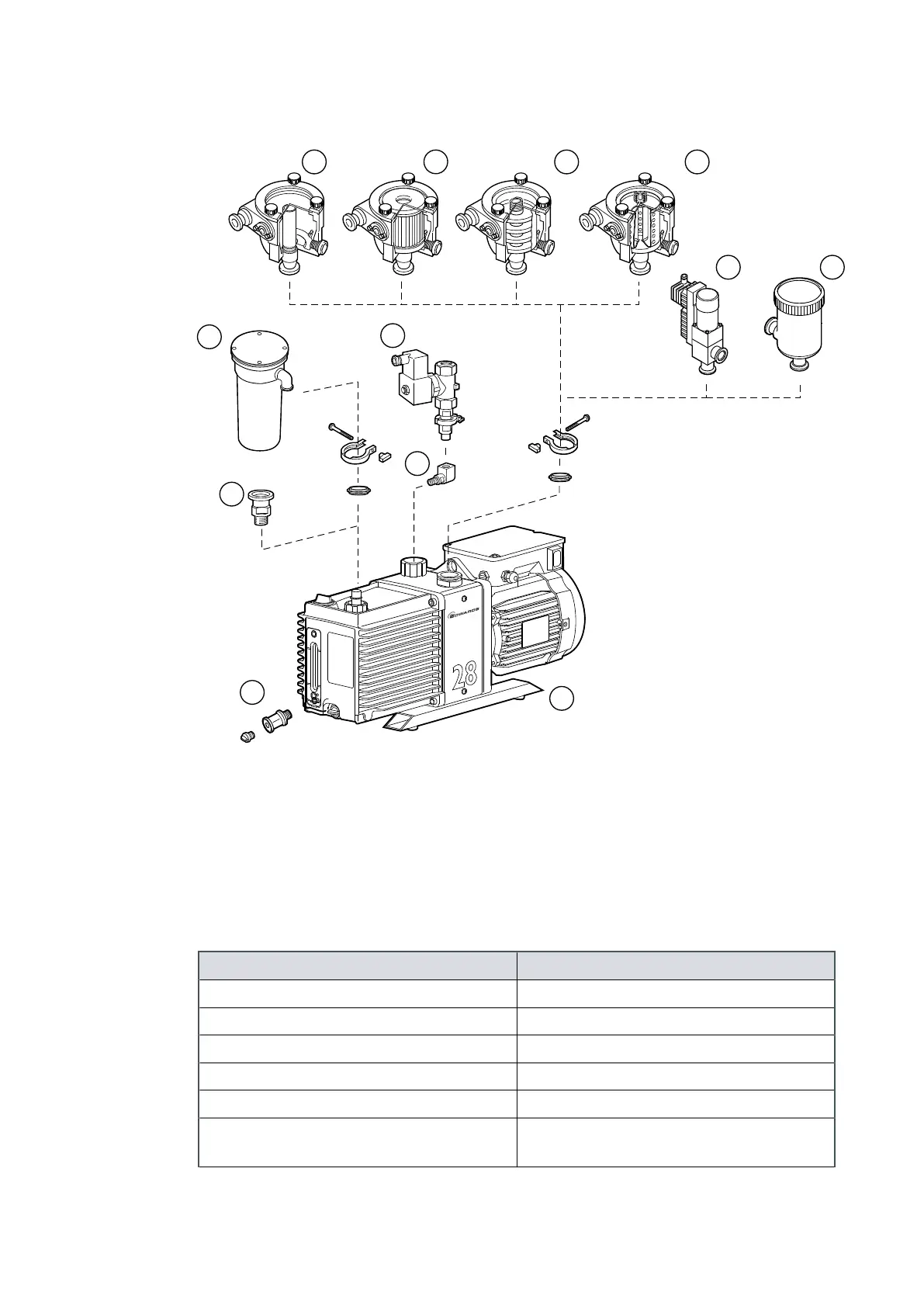

Figure 11 Accessories
1
2
3 4
5
7
10
CS/1127/A
8
9
6
12
11
1. Inlet catchpot 2. Inlet dust lter
3. Inlet desiccant trap 4. Inlet chemical trap
5. Gas ballast valve 6. Banjo/elbow assembly
7. Solenoid operated pipeline valve 8. Foreline trap
9. Outlet mist lter 10. NW25 adaptor
11. Vibraon isolators 12. Oil drain extension
1. Inlet catchpot 2. Inlet dust lter
3. Inlet desiccant trap 4. Inlet chemical trap
5. Gas ballast valve 6. Banjo/elbow assembly
7. Solenoid operated pipeline valve 8. Foreline trap
9. Outlet mist lter 10. NW25 adaptor
11. Vibraon isolators 12. Oil drain extension
Table 14
Accessory item numbers
Accessory
Item number
ITO20K Inlet catchpot A44110000
ITF20K Inlet dust
lter
A44215000
ITD20K Inlet desiccant trap A44510000
ITC20K Inlet chemical trap A44410000
EMF30 Outlet mist
lter
A46233000
PV25EK Valve: 200/240 V, 1-phase, 50/60
Hz
C41301000
