© Edwards Limited 2012. All rights reserved. Page 9
Edwards and the Edwards logo are trademarks of Edwards Limited.
Technical data
A705-61-880 Issue M

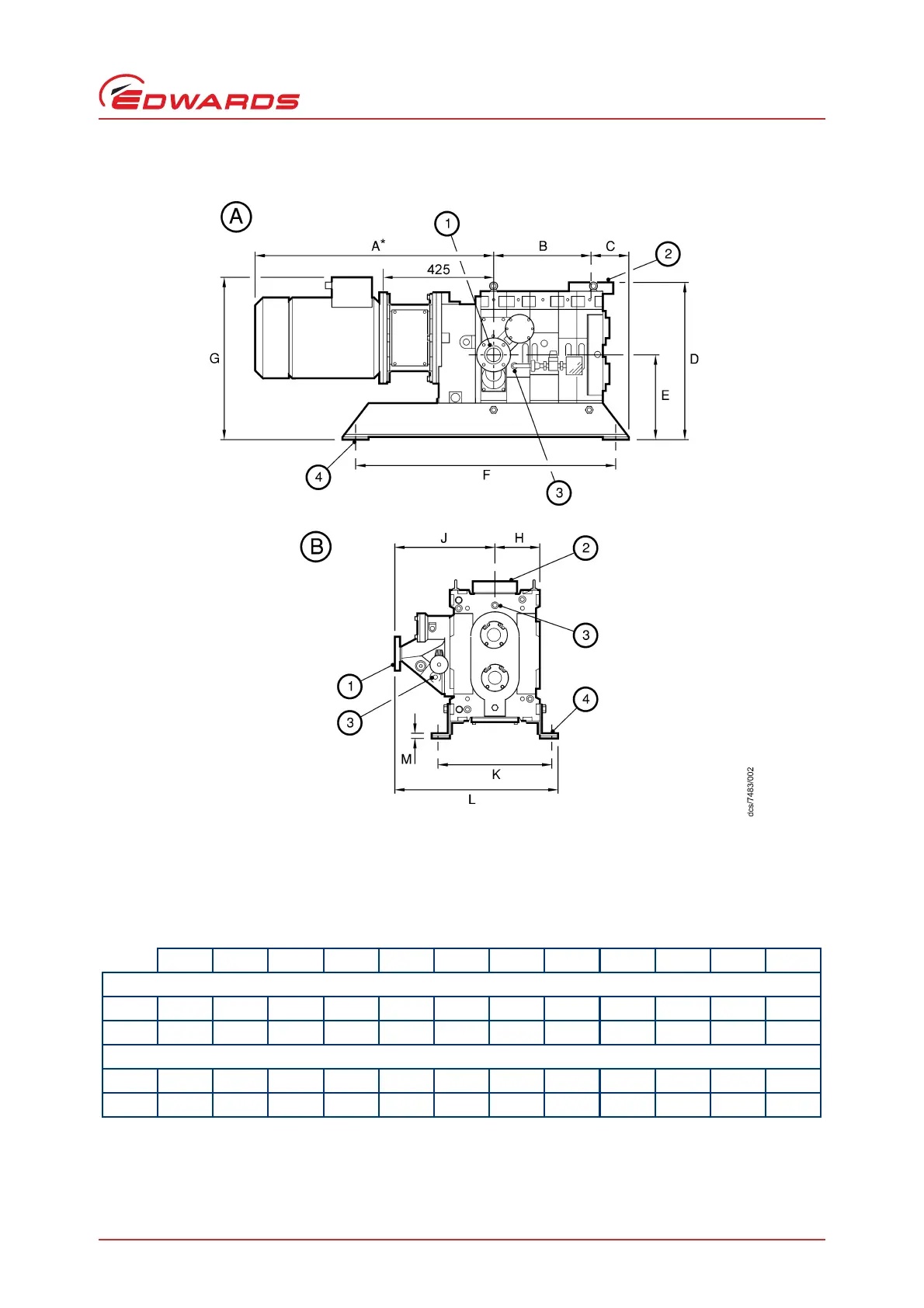

Figure 2 - Pump dimensions
A. Side view
B. Front view
1. Outlet
2. Inlet
3. Port tappings: ½ inch BSP
4. Fixing holes: Ø22 mm (0.9 inch)
A
*
*
Dependent on motor fitted i.e. Bareshaft pump supplied
BCDEFGHJKLM
380/400/415 V, 50 Hz pump dimensions (mm)
GV250 894 366 148 580 315 1000 640 180 377 460 632 13
GV400 955 414 148 580 315 1000 640 180 377 460 632 13
230/460 V, 60 Hz pump dimensions (inches)
GV250 36.96 14.41 5.83 22.83 12.4 34.37 26.22 7.09 14.84 18.11 24.88 0.52
GV400 40.16 15.91 5.83 22.83 12.4 39.37 26.22 7.09 14.84 18.11 24.88 0.52
