Maintenance

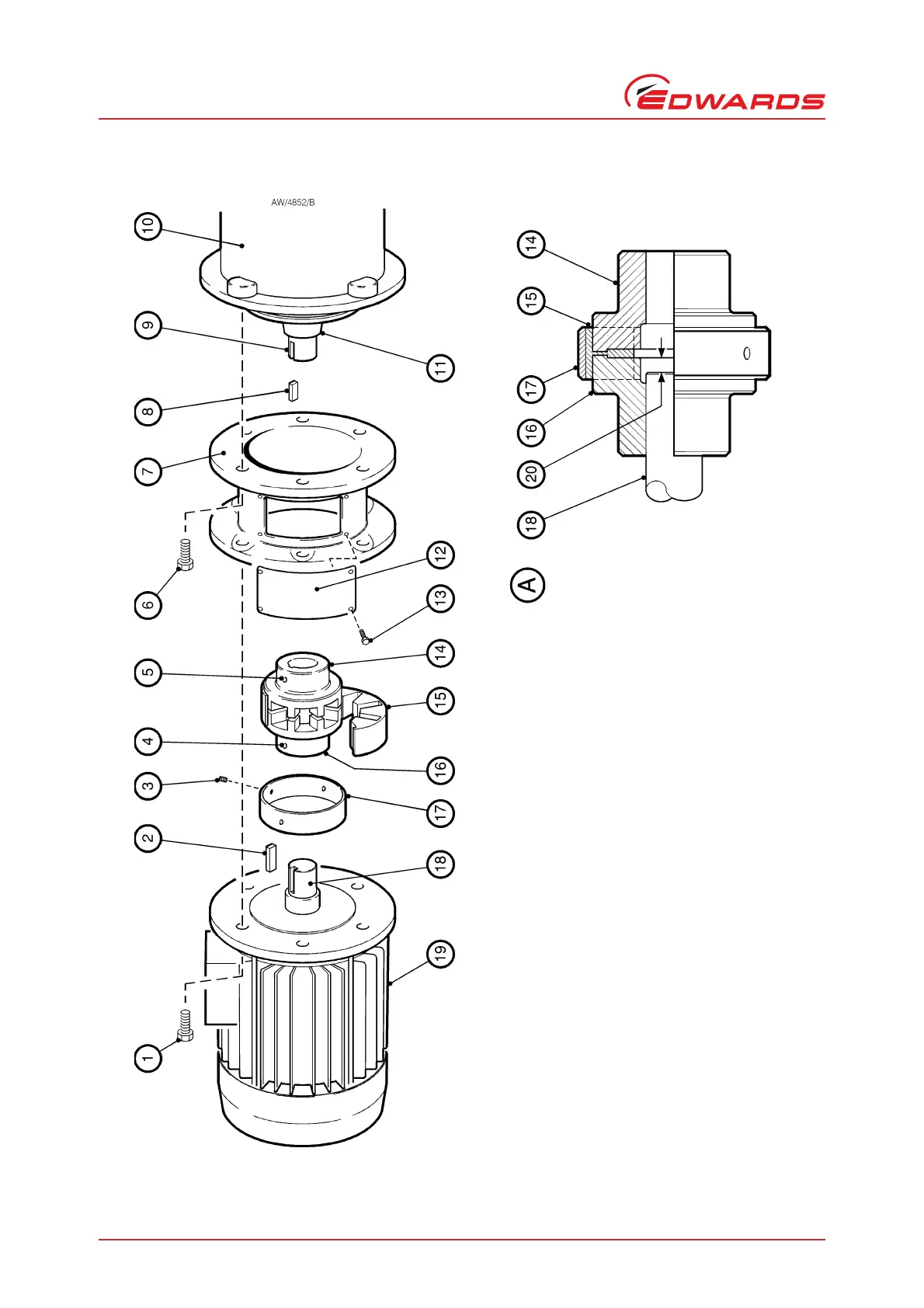

Figure 10 - Exploded view of the pump-motor, coupling drive and coupling housing
1. Bolt
2. Key
3. Set screws
4. Set screw
5. Set screw
6. Bolt
7. Coupling housing
8. Key
9. Pump shaft
10.Gearbox
11.Shaft bearing nut
12.Coupling cover
13.Bolt
14.Coupling hub
15.Coupling insert
16.Drive hub
17.Holding ring
18.Motor shaft
19.Pump-motor
20.Gap
A. Adjust the coupling on the drive shaft
