E F A P O W E R E V - PC - I N S T A L L A T I O N A N D U S E R M A N U A L
11 | 37
ETL MARKED UNITS:
• Single phase input connection for ETL marked units (two hot wires per output):

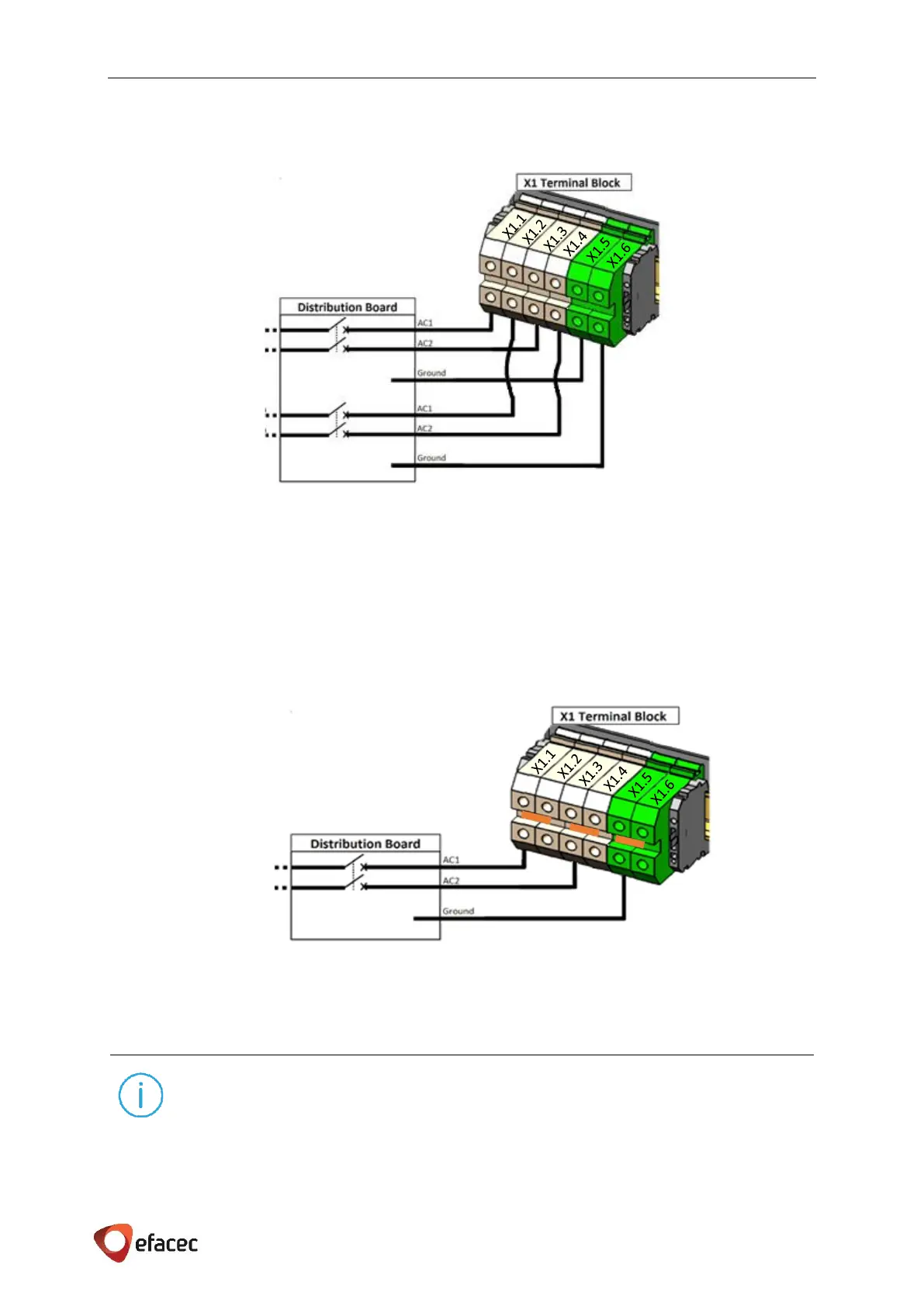

Figure 8 - EFAPOWER EV-PC UL Wiring Information (Two Hot Wires Per Output)
This Unit has only one power output rate available. This installation requires a dedicated 40A circuit
breaker 2P C curve per output.
• Single phase input connection for ETL marked units (two hot wires shared by both outputs):
For the power sharing feature, shall be placed three shunts (Weidmuller - 1053260000) across phases
and ground terminal blocks, represented in orange (X1.1 and X1.2; X1.3 and X1.4; X1.5 and X1.6).
Figure 9 - EFAPOWER EV-PC UL Wiring Information (Two Hot Wires Share by Two Outputs)
This Unit has only one power output rate available. This installation requires only one dedicated 40A
circuit breaker 2P C curve.
NOTES
In areas with frequent thunderstorms, we advise to add transient voltage surge suppression (TVSS)
at the service panel for all circuits.
A Residual Current Device is not necessary for the circuit breaker, unless it is required by local codes.
EFAPOWER EV-PC Station has already ground fault protection.
