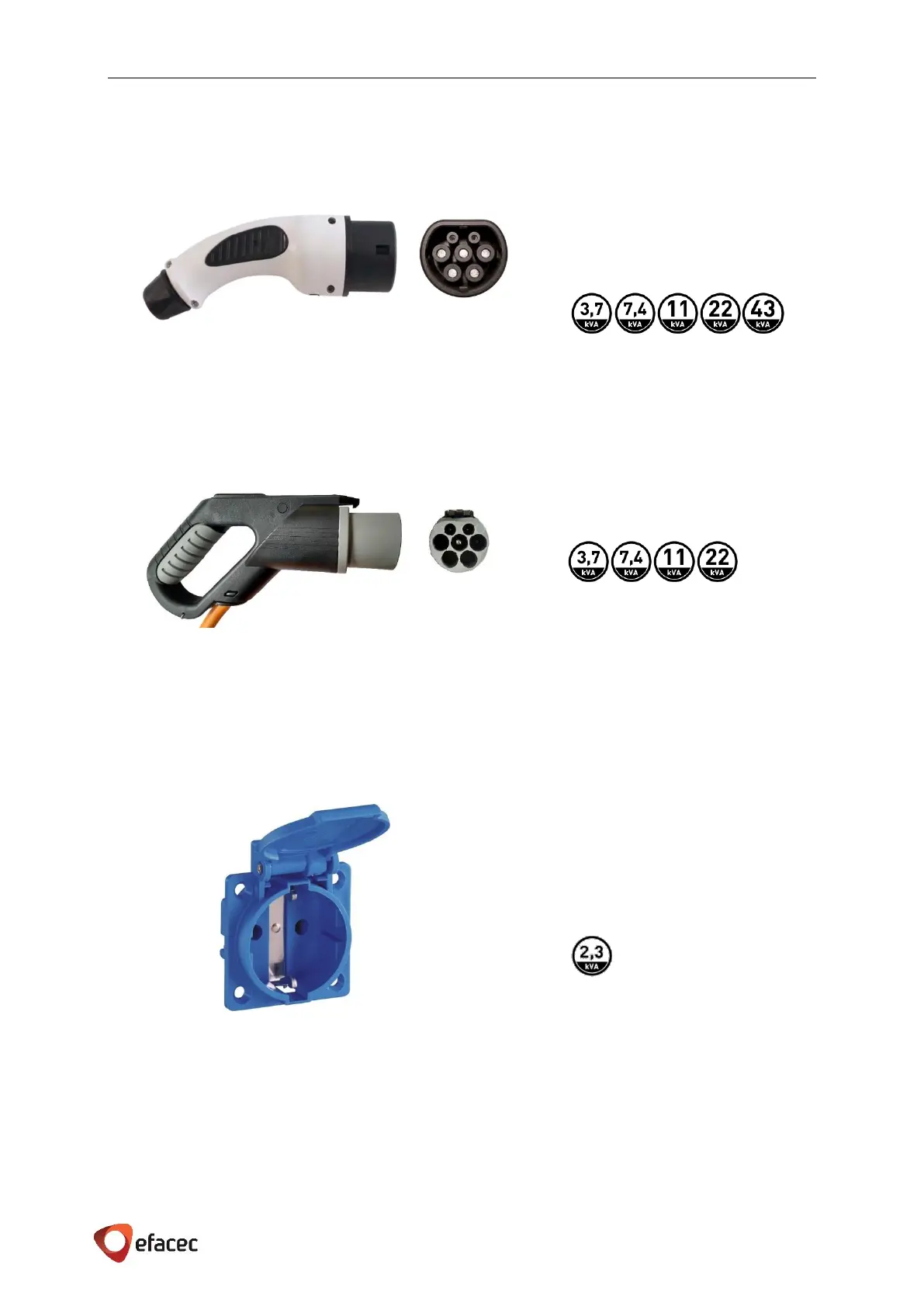

Figure 39 - Mode 3 Type GB Connector
7.1.3 TYPE 2 CONNECTOR
Mode 3
7.1.4 TYPE GB CONNECTOR
Mode 3
7.1.5 CE/7 OUTLET
Mode 2
This connector is available for the
following power output on CE
marked units:
Figure 40 - Mode 2 CE/7 Outlet
This connector is available for the
following power outputs on GB
marked units:
This connector is available for the
following power rates on CE
marked units:
Figure 38 - Mode 3 Type 2 Connector
