E F A P O W E R E V - PC - I N S T A L L A T I O N A N D U S E R M A N U A L
20 | 37
5.3.4.5 CONNECTIONS BETWEEN CENTRAL AND SATELLITE UNITS
(IF APPLICABLE)
Whenever the installation requires Central and Satellite Units, Ethernet patch cables shall be installed to
interconnect the units. Each Central Unit has the ability to connect with up to 2 (two) satellites. For a higher
number of satellites connected to the same Central it is necessary to add an additional Ethernet switch to a
satellite for every 3 (three) additional units.
The following figure represents this connection.
The AC input is independent from charger to charger (refer to previous chapter).

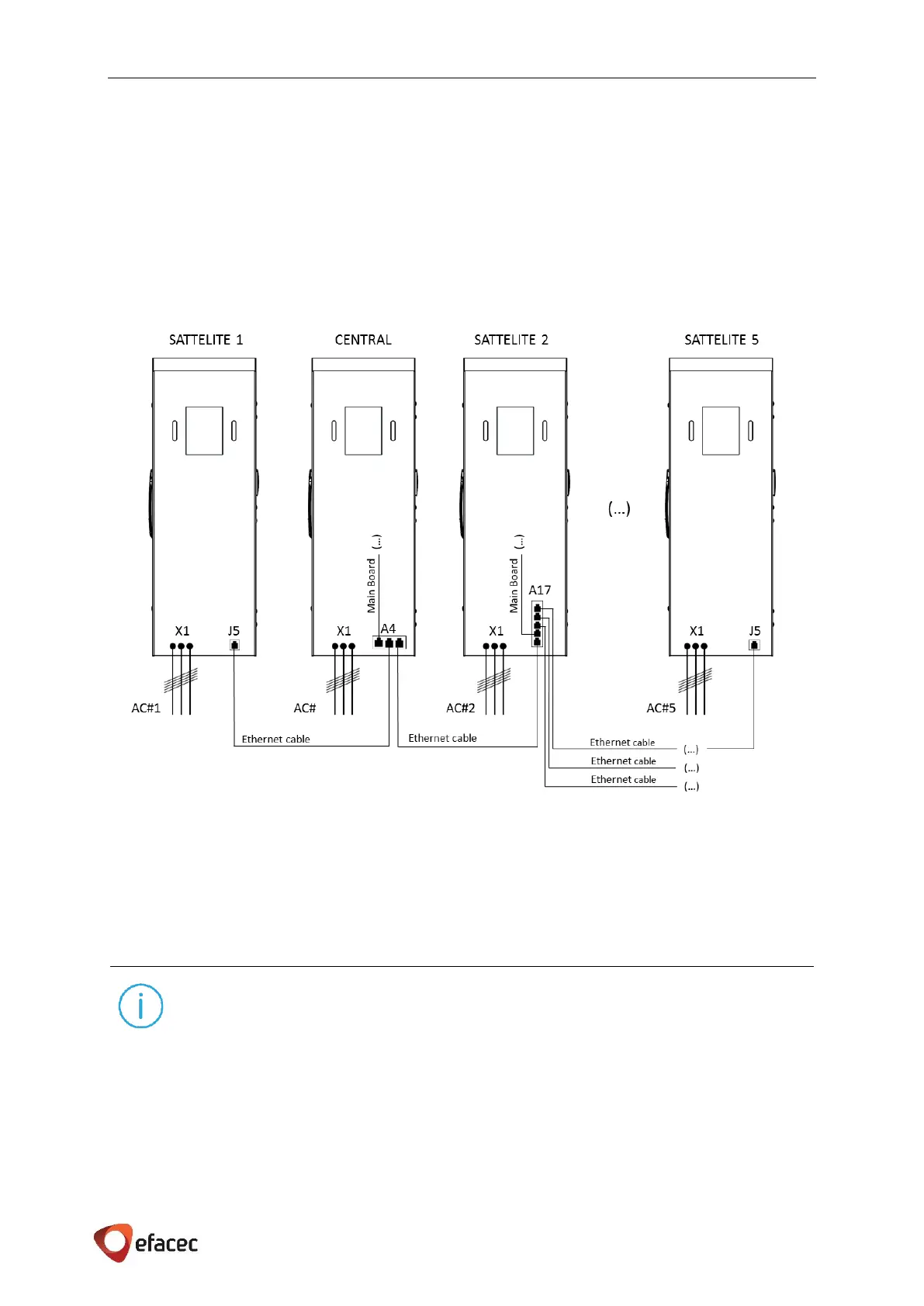

Figure 18 - Central and Satellites Connection Scheme
The cable is specified here below, and it is also listed in Chapter 5.2.3.
Communications:
▪ Ethernet patch cable STP CAT5e TIA/EIA-568B
