 Switch on all the fuses and circuit breakers in the Quick Charging Station power cabinet:
Fuses: F2, F7, F3, F4
Circuit Breakers: Q1, Q2, Q7, Q3, Q4, Q10, Q11 (only if cold option), Q6, Q12 (auxiliary supply for
maintenance), Q14 (only if AC43 or AC22 outputs), Q20 (only if AC43 output), Q15 (only if AC22S output)

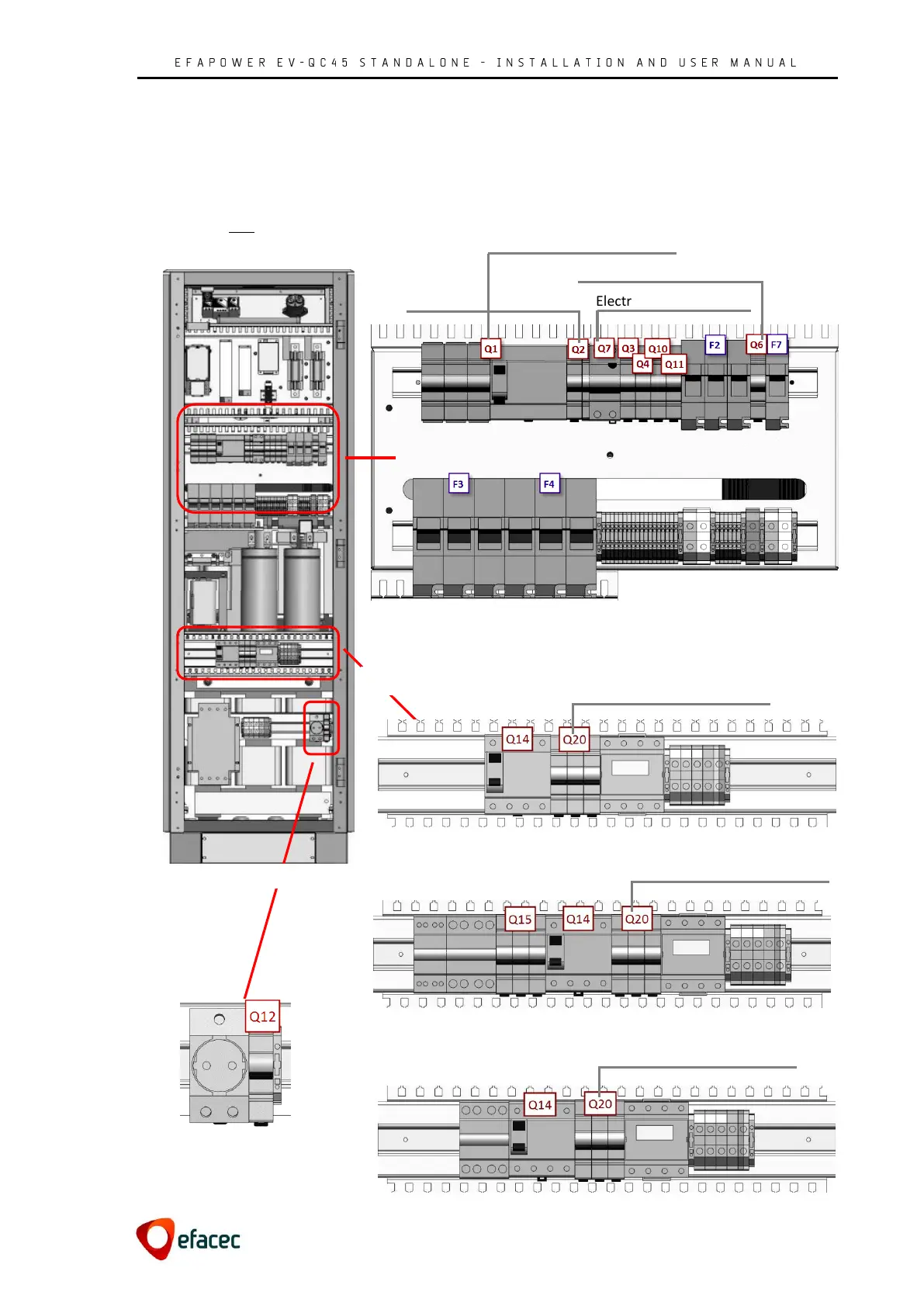

EV-QC45 CE components layout
DC output – power main input
or
If AC output connections:
Figure 16 – Auxiliary supply
for maintenance
Figure 12 – CE Input Plate
Figure 13 – AC43 Plate
Figure 15 - AC22S Plate
Output contactors command
Electronics power supply
AC output – power main input
AC output – power main input
or
AC output – power main input
Figure 17 - AC22P Plate
230V auxiliary power supply
Figure 14 - EV-QC45 interior front view
