19/32

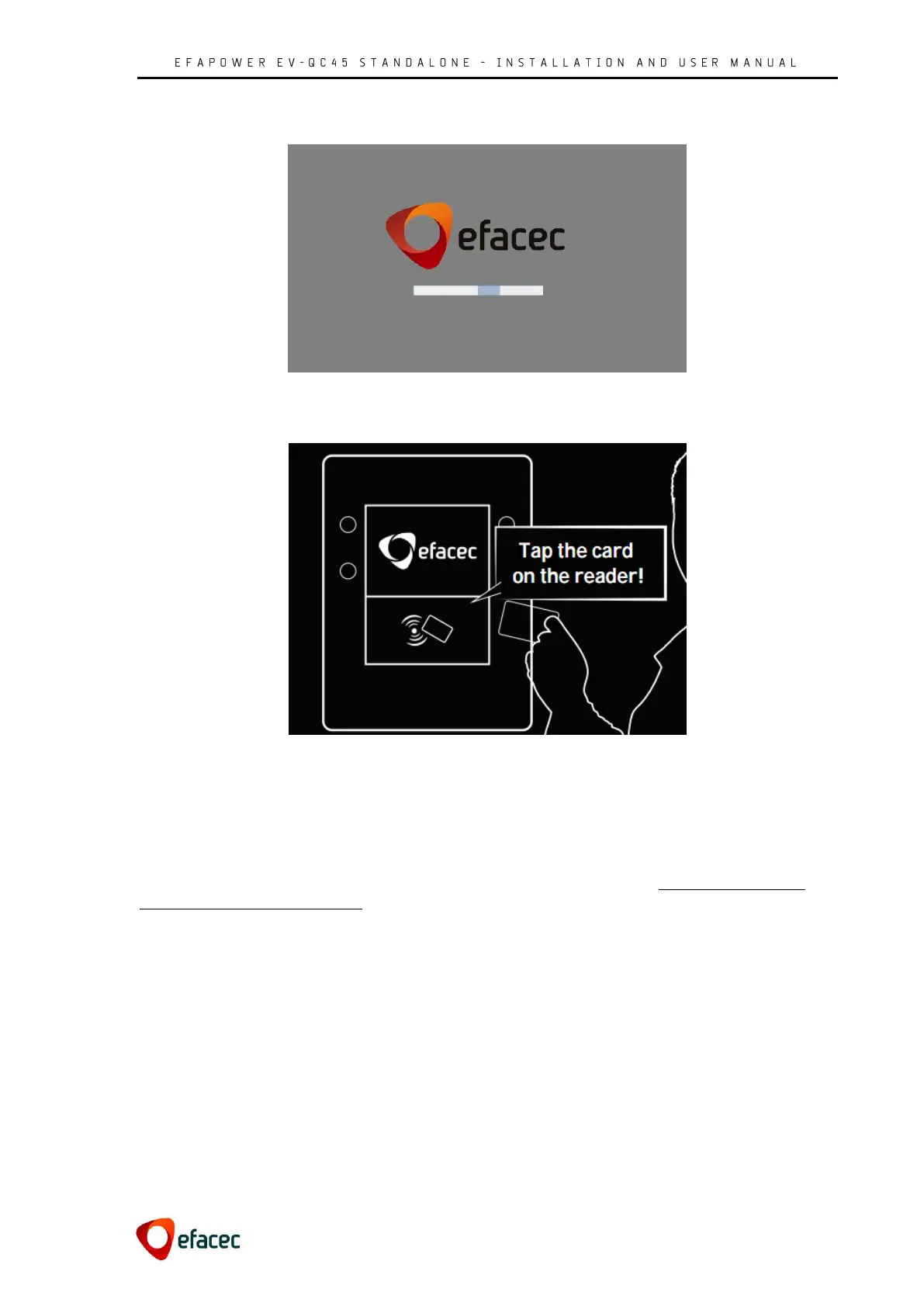

Wait for around 2-3 minutes. The display will present a picture as below:
Figure 22 - EFAPOWER EV-QC45 Initialization (continue)
Finally the display will present the following screen saver:
Figure 23 - EFAPOWER EV-QC45 Screen Saver
The EV-QC45 shall be ready to charge any car that has a charging system according to the EFAPOWER EV-QC45
configuration. Although, is highly recommended to test the charger station with a car or a simulator. See how
to operate the charger station in chapter 7.
AT THIS POINT THE COMMISSIONING CHECK LIST REPORT, WHICH WAS PROVIDED WITH THIS MANUAL, SHALL
BE FILLED IN AND SENT AFTERWARDS TO EFACEC FOR THE E-MAIL: APV-SA@EFACEC.COM OR
SUPPORT.EEM.USA@EFACEC.COM (FOR USA MARKET).
