EFD 780S Series User Manual

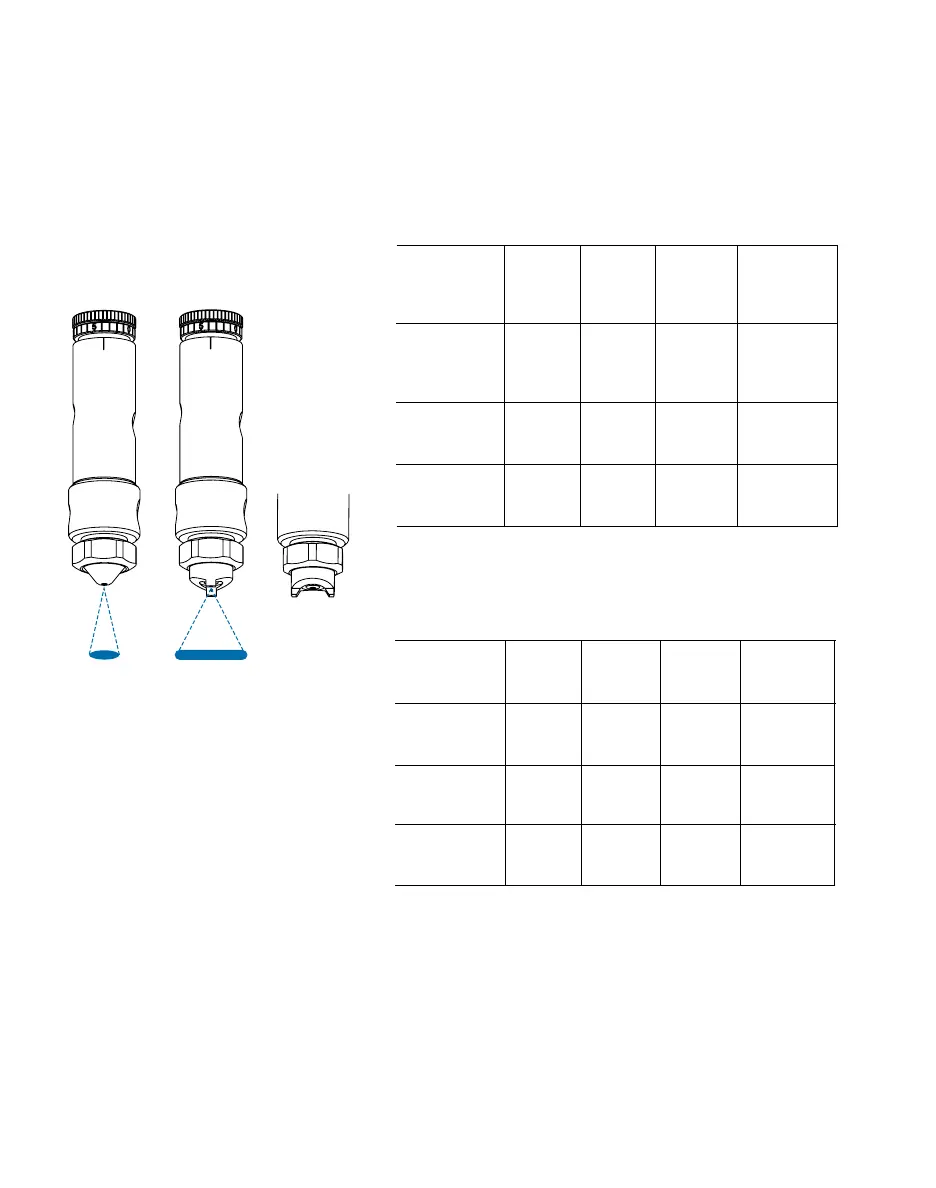

Spray Patterns
Nozzle Distance from the Work Surface:
Nozzle Distance from the Work Surface:
Fan Pattern Spray Area Coverage
Round Pattern Spray Area Coverage
11 / Spray Patterns
1" 2" 3" 6"
Nozzles 25.40 mm 50.80 mm 76.20 mm 152.40 mm
#7857-46SS
Standard
0.046" 0.250" 0.500" 0.750" 1.500"
(1.17 mm) 6.35 mm 12.70 mm 19.05 mm 38.10 mm
#7857-46WA-SS
Wide-angle
0.046" 0.750" 1.500" 2.000"
Not
(1.17 mm) 19.05 mm 38.10 mm 50.80 mm Recommended
#7857-28SS
0.028" 0.200" 0.400" 0.600" 1.200"
(0.71 mm) 5.08 mm 10.16 mm 15.24 mm 30.48 mm
#7857-14SS
0.014" 0.170" 0.340" 0.500" 1.000"
(0.36 mm) 4.32 mm 8.64 mm 12.70 mm 25.40 mm
1" 2" 3" 6"
Nozzles 25.40 mm 50.80 mm 76.20 mm 152.40 mm
#7857F-46SS
0.046" 1.000" 1.500" 2.000" 3.250"
(1.17 mm) 25.40 mm 38.10 mm 50.80 mm 82.60 mm
#7857F-28SS
0.028" 0.400" 0.800" 1.200" 2.400"
(0.71 mm) 10.16 mm 20.32 mm 30.48 mm 60.96 mm
#7857F-14SS
0.014" 0.340" 0.680" 1.000" 2.000"
(0.36 mm) 8.64 mm 17.27 mm 25.40 mm 50.80 mm
#7857-46WF-SS
0.046" 1.500" 2.500" 3.250" 6.500"
(1.17 mm) 38.10 mm 63.50 mm 82.60 mm 165.10 mm
Round
Fan
Side view of
fan air cap
