EFD 780S Series User Manual

1. Cycle
Press to initiate one complete dispense
cycle. Press this button again to interrupt a
timed cycle. Press and hold while in the time
override mode for continuous cycle. Release
to stop.
2. Time override
Press to override time control. Display will
show (---). While in this mode, dispensing is
manual using the cycle button, voltage initi-
ate source or foot pedal (optional, #2015A).
3. Decimal
Press to move decimal and change time
range maximums from .999 to 9.99 or 99.9.
Decimal does not appear in the display while
in the .999 second range.
4. Program
Press to clear display to zeros. Display
flashes bright/dim while in program mode.
Press cycle button and hold until proper
amount is sprayed. Total spray time will be
displayed. Press program button again to
lock in spray time.
5. Time set
Press to change time setting up or down.
Press and release to advance one digit at a
time, or press and hold to scroll quickly.
6. Foot pedal connector
If using the optional foot pedal, press the
pedal momentarily to initiate the 7040 con-
troller. To interrupt a timed dispense cycle,
press the pedal again.

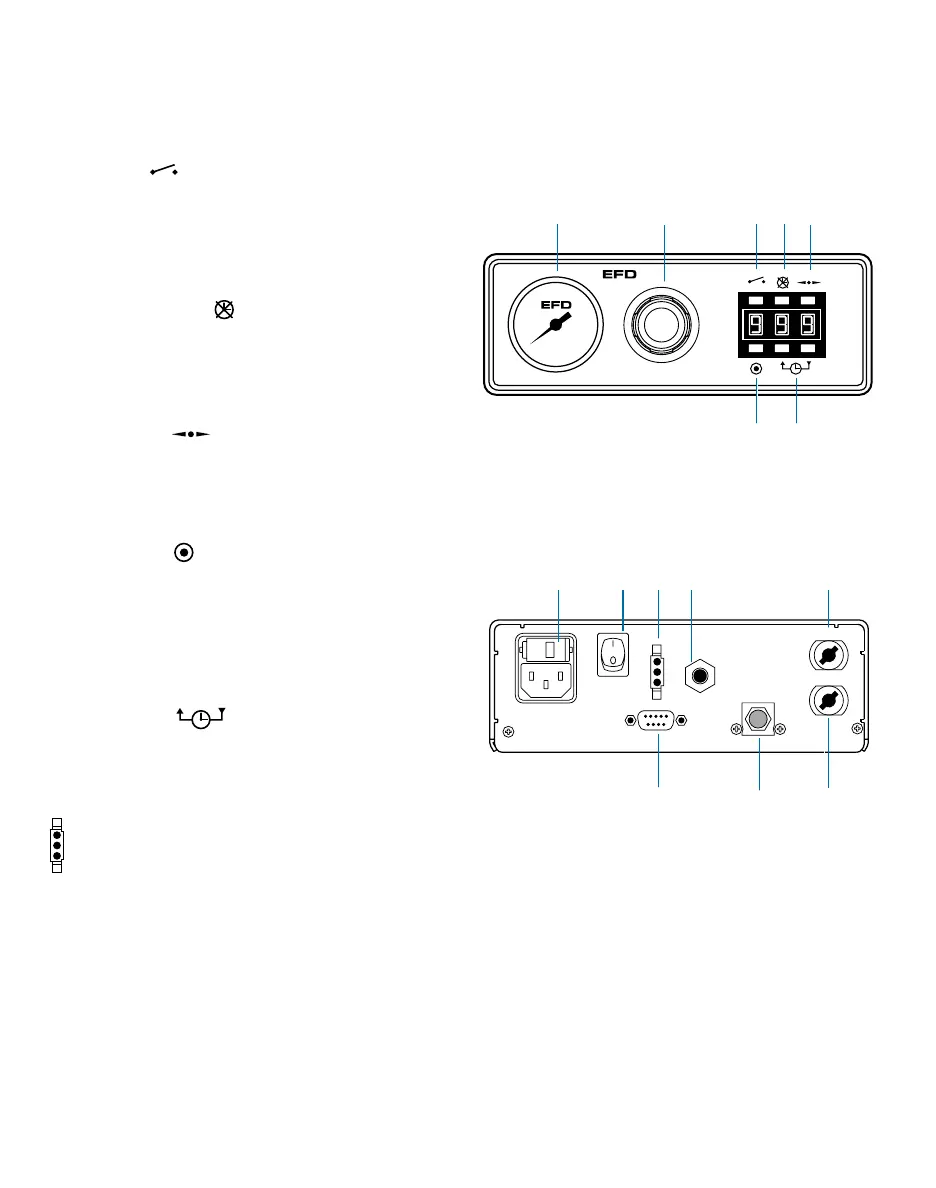

Controller Operating Features
5 / Controller Operating Features
Nozzle
air regulator
Nozzle
air gauge
12
3
5
Power
switch
6
Air input
quick-coupler
70 psi (4.8 bar)
minimum input
pressure
Valve
operating
air output
(white)
Nozzle
air output
(black)
Output A
Output B
Air
exhaust
9 pin D connector
I/O interface
(see page 18 for details)
Input power
cord receptacle
(see page 7
for details)
120
4
VALVEMATE
7040
