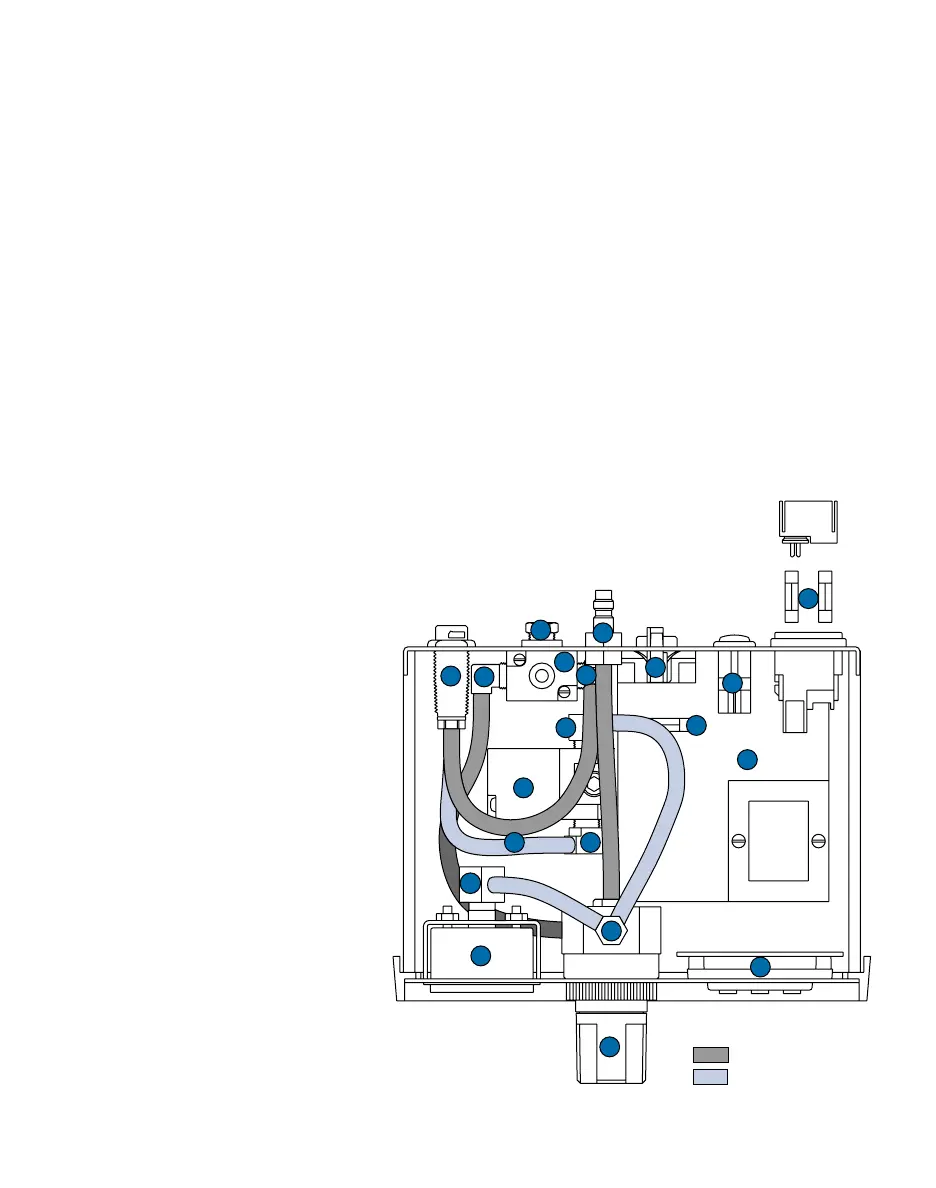

Replacement Parts for the 7040 Controller
1. 2-2002-7040 Regulator assembly
0 to 30 psi, 0 to 2.07 bar
2. 2-2003-7040A Control solenoid assembly
3. 2-2003-7040B Nozzle air solenoid assembly
4. 2-2006DB-VC Display PCB assembly
5. 2-2006PS-VC Power supply PCB assembly
6. 2-2017-1500 Foot pedal receptacle assembly
7. 2001A Gauge 0 to 30 psi, 0 to 2.07 bar
8. 2004B Female quick-connect - black
(hidden from view - below item #9)
9. 2004B-W Female quick-connect - white
10. 2024-160 1/4" OD x .160" ID tubing
11. 2081A Air input quick-connect
12. 2085 1/8 NPT x 1/4 barb - low profile
13. 2086 1/8 NPT x 1/4 barb 90° - brass
14. 2087 1/8 NPT x 1/4 barb elbow - brass
15. 2088 Fitting - 1/8 NPT x 1/4 barb - brass
16. 7108 Exhaust muffler
17. 7109 Power switch
18. 7111 Fuse - .125A
19. 7143-01 Output circuit fuse
21 / 7040 Schematic and Replacement Parts
14
2
7
5
15
9
17
18
6
11
16
12
4
1
19
14
14
13
10
3
Regulated Air
Input Air
