EFD 780S Series User Manual

Caution: Always depressurize the reservoir before
opening. To do this, slide the shutoff valve on the
air line away from the reservoir. If using an EFD
tank, open the pressure relief valve as well. Before
opening the reservoir, check the pressure gauge to
verify that pressure is zero (0).
On all EFD cartridge reservoirs, the unique thread-
ed design provides fail-safe air pressure release
during cap removal.

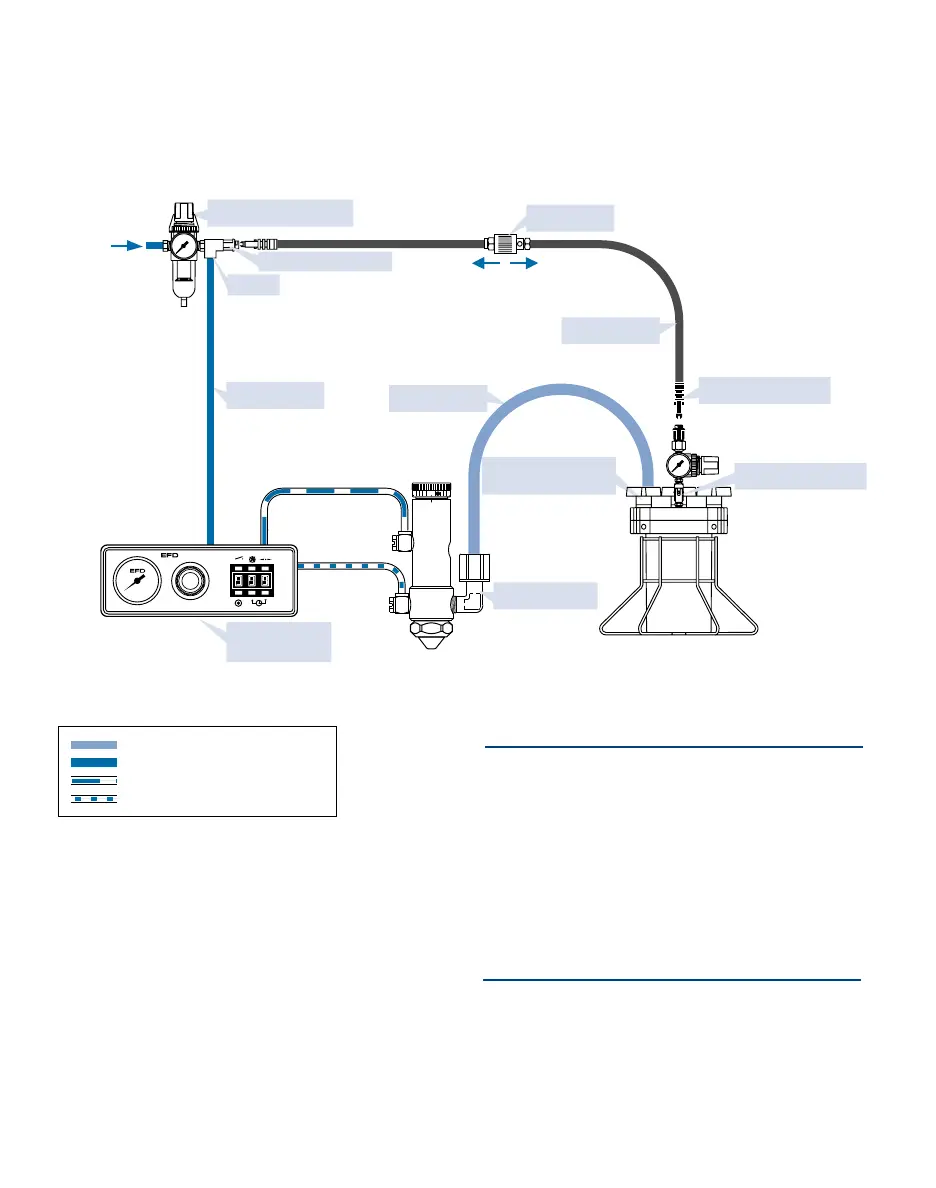

Typical Setup
6 / Typical Setup
5 micron filter regulator
Fluid feed hose
#7543BP (installed)
for 1/4" OD tube
Pressurized reservoir
with air regulator
ValveMate™
7040 Controller
Plant air
70 psi (4.8 bar)
minimum
Material
Constant air
Pulsed air for valve operation
Pulsed nozzle air
VALVEMATE
7040
20
0
5
Control air line
Air tee
White quick connect
Flexible air line
Fluid inlet fitting
Pressure relief valve
Black quick-connect
Shutoff valve
To pressurizeTo exhaust
#7610BP (included)
for 3/8" OD tube
