UPS: MKD 700 – 3000 VA RT (XL) UPS Device Description
3.3 The device components and connection areas
The MKD series is based on 19” rack housing. All device components for
operation are arranged on the front of the device and those for the connection
are on the back of the device. The only exception to this is the external battery
bank connection which is found under the respective front panel on both of the
devices (UPS and battery bank). Additionally, some differences exist in the
respective XL variants in comparison to the standard versions. This concerns
varying assemblies and functionalities. For this, see the following figures and
descriptions:

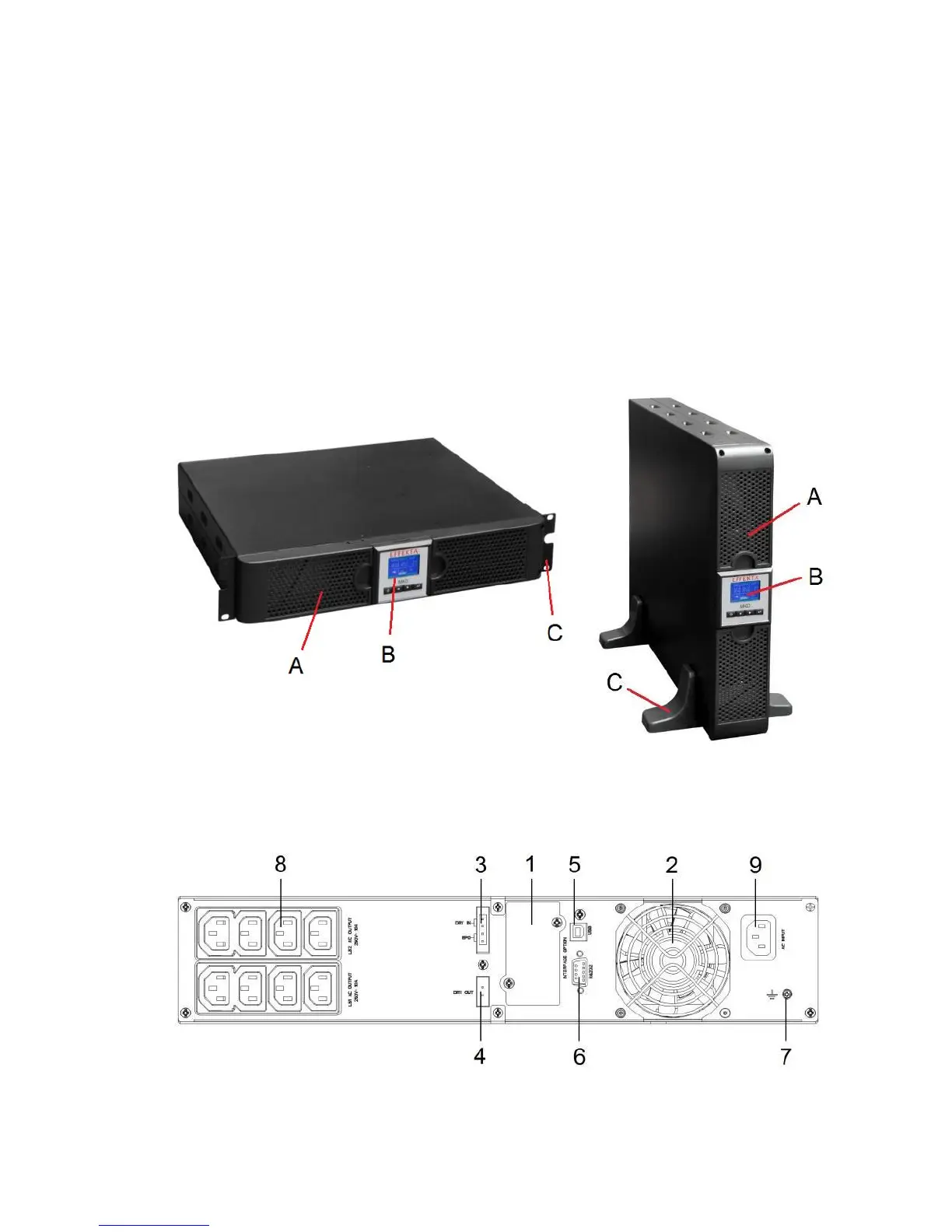

Fig. 3-8 Perspective view of the MKD 700 - 3000 VA series (Standard and XL
Version).
Fig. 3-9 View of the back side of the MKD 700 - 2000 VA (Standard) and 700 -
1500 VA (XL version).
