UPS: MKD 700 – 3000 VA RT (XL) Installation and Connection
Ensure here that the PE connection and the corresponding fuse for the loads
are also present.
In the event that a fixed connection for the UPS occurs (e.g. MKD 3000 XL),
please observe the following connection diagram and the connection values
listed.

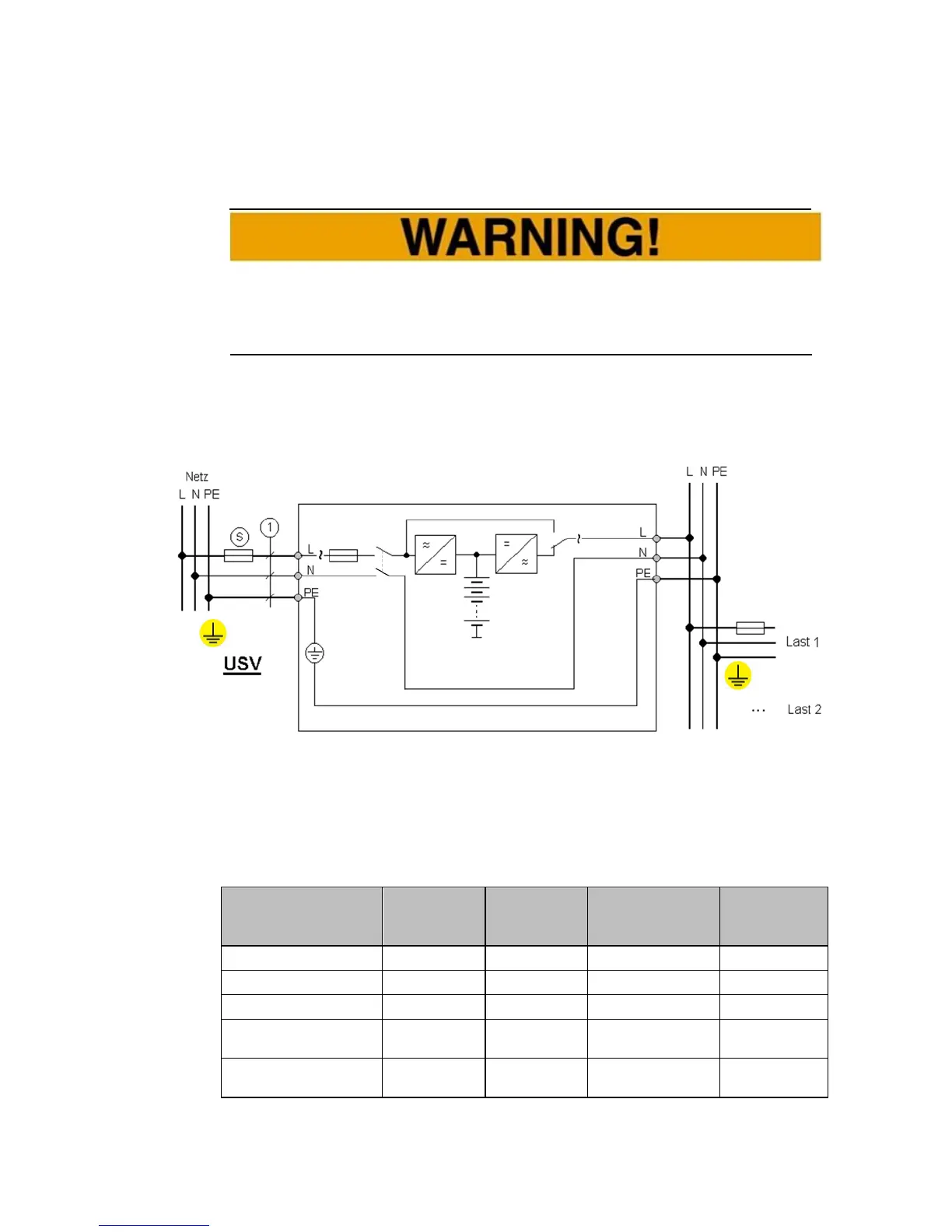

Fig. 5-12 Connection diagram for the MKD 3000 XL on the power supply and
the loads.
The following table generally depicts the possible connection variants as well as
the necessary fuse:
Device:
Input
connection:
Conductor
diameter
(1):
Circuit breaker
(S):
Output
connection:
MKD 700 - 2000
IEC C14
1.5 mm²
10 A
8x IEC C13
MKD 700 - 1500 XL
IEC C14
1.5 mm²
10 A
8x IEC C13
MKD 2000 XL
IEC C20
2.5 mm²
16 A
8x IEC C13
MKD 3000
IEC C20
2.5 mm²
20 A
8x IEC C13
1x IEC C19
MKD 3000 XL
Fixed
connection
2.5 mm²
25 A
8x IEC C13
1x IEC C19
