UPS: MKD 700 – 3000 VA RT (XL) Installation and Connection
5.4.4 Connecting the relay contact extension card (DRY CONTACT)
The relay card is an intelligent extension card.
All inputs and outputs have protective insulation
(potential-free). The relay card can easily be
slid into the adapter slot (INTELLIGENT SLOT)
of the UPS and couples via a signaling cable
with the superior control system. For the
connection of the relay contact card, please see
the versions in the card operation manual. This
chapter also provides a summary of the
functionality 15.1 Communications adapter:
Relay card (AS400) here in this manual.

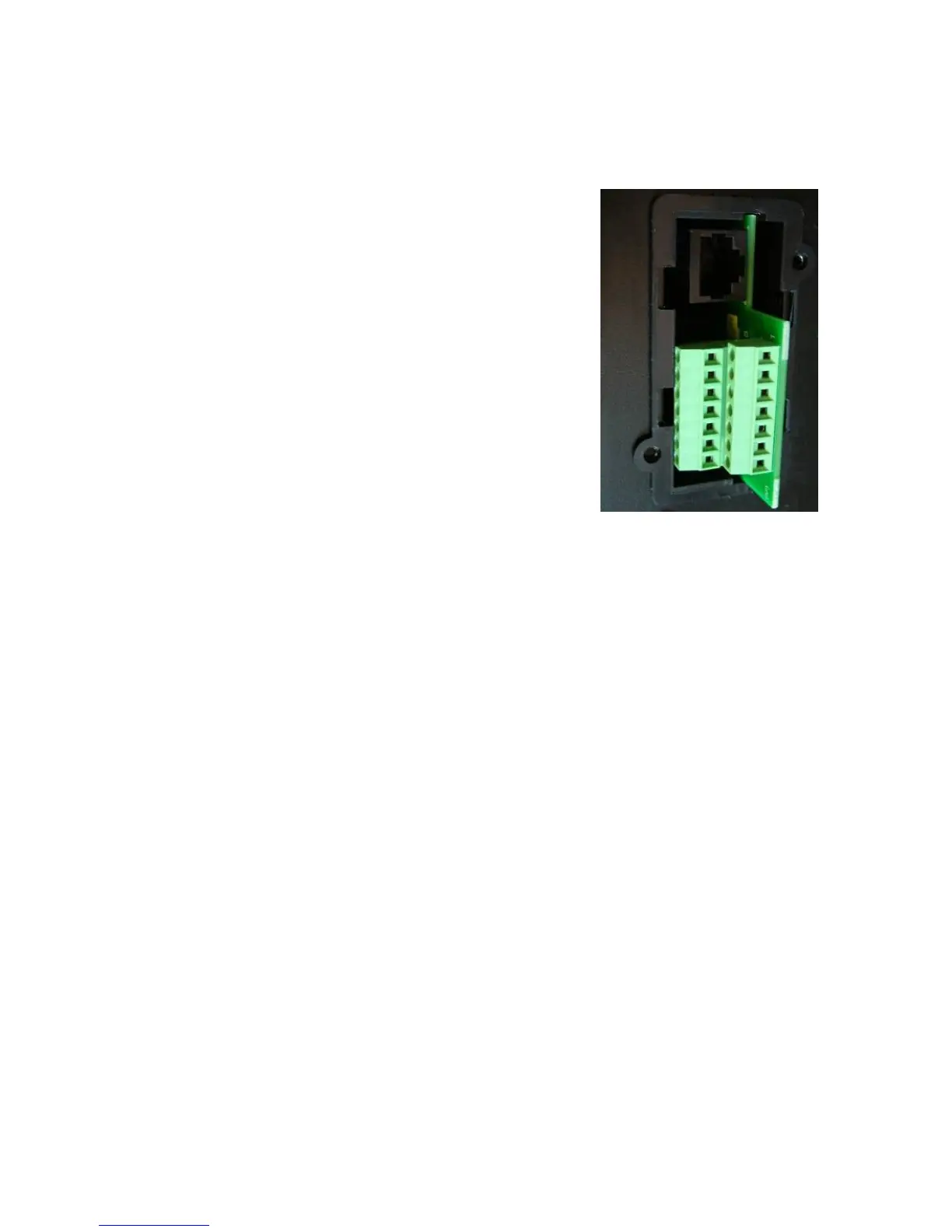

Fig. 5-18 View of a model relay card inserted.
5.4.5 Connecting the SNMP adapters
The SNMP adapter can likewise easily be slid into the adapter slot
(INTELLIGENT SLOT) of the UPS and only needs to be connected with the
network via a network cable (patch cable, category 5e or better). Further
information for connection configuration is found in the respective adapter
manual. A rough summary of the functionality is provided in chapter 15.2
Communication adapter SNMP in this manual.
