Hardware Overview
Document ID: OMM-00174 Rev. D Pro 30f Operations Guide 19
3.1.3 Table Vacuum Adjustment Controls
A detail of the vacuum zones and their control valves is provided in Figure 3-7, below.
3.1.3.1 Vacuum Foot Pedal
The media vacuum foot pedal controls the media belt vacuum. With the main vacuum
breaker in the on position and the vacuum control valves open, stepping on this pedal
turns the vacuum motors on and creates the vacuum in the platen that holds media in
place when printing.

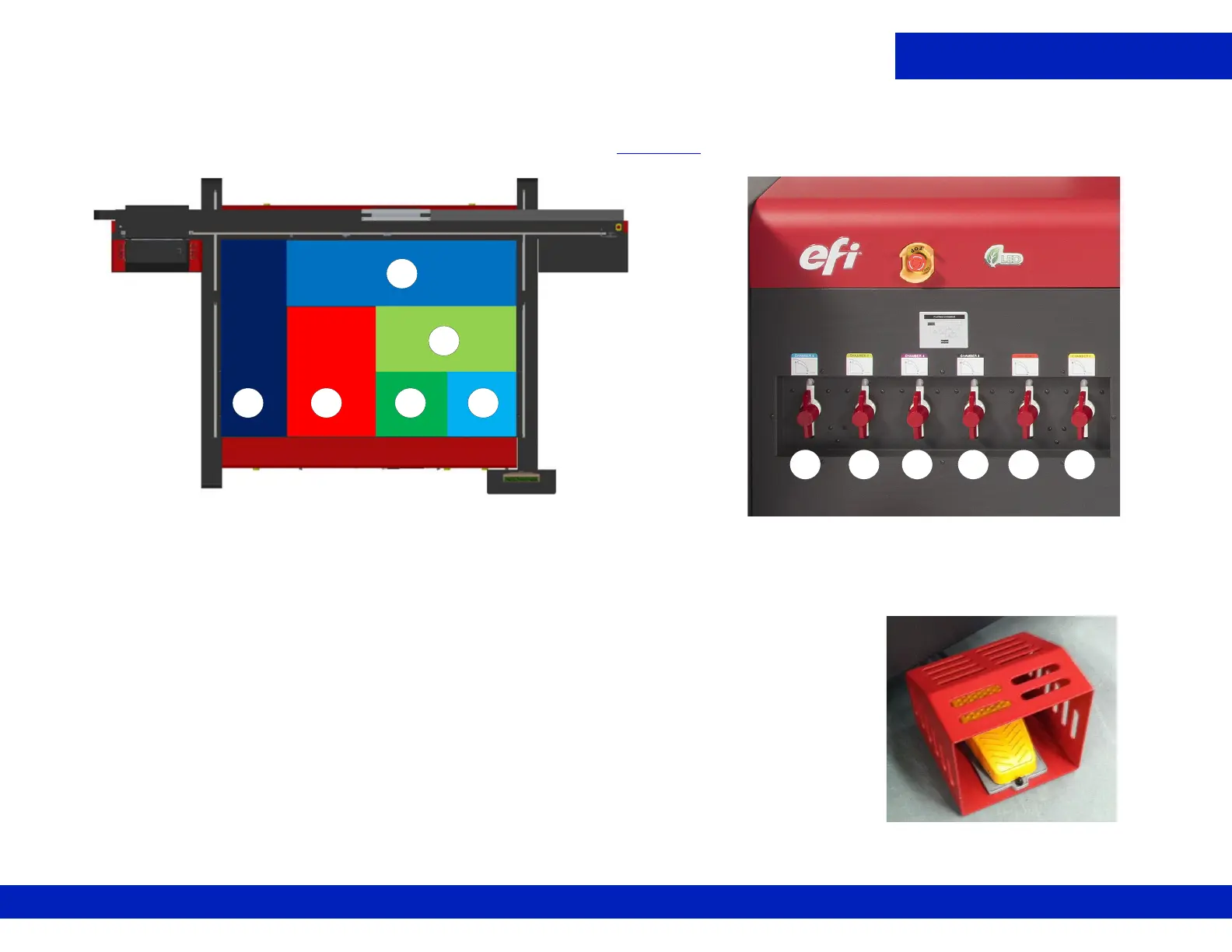

Figure 3-7 : Vacuum Controls
Vacuum Zones
12
3
4
5
6
123456
Figure 3-8 : Media Belt Vacuum Foot Pedal
To Next Page
