Eickemeyer EICKTRON 120 - Frontal Panel Controls Description

EN‐30
MA510a_EN

Instruction’sManual




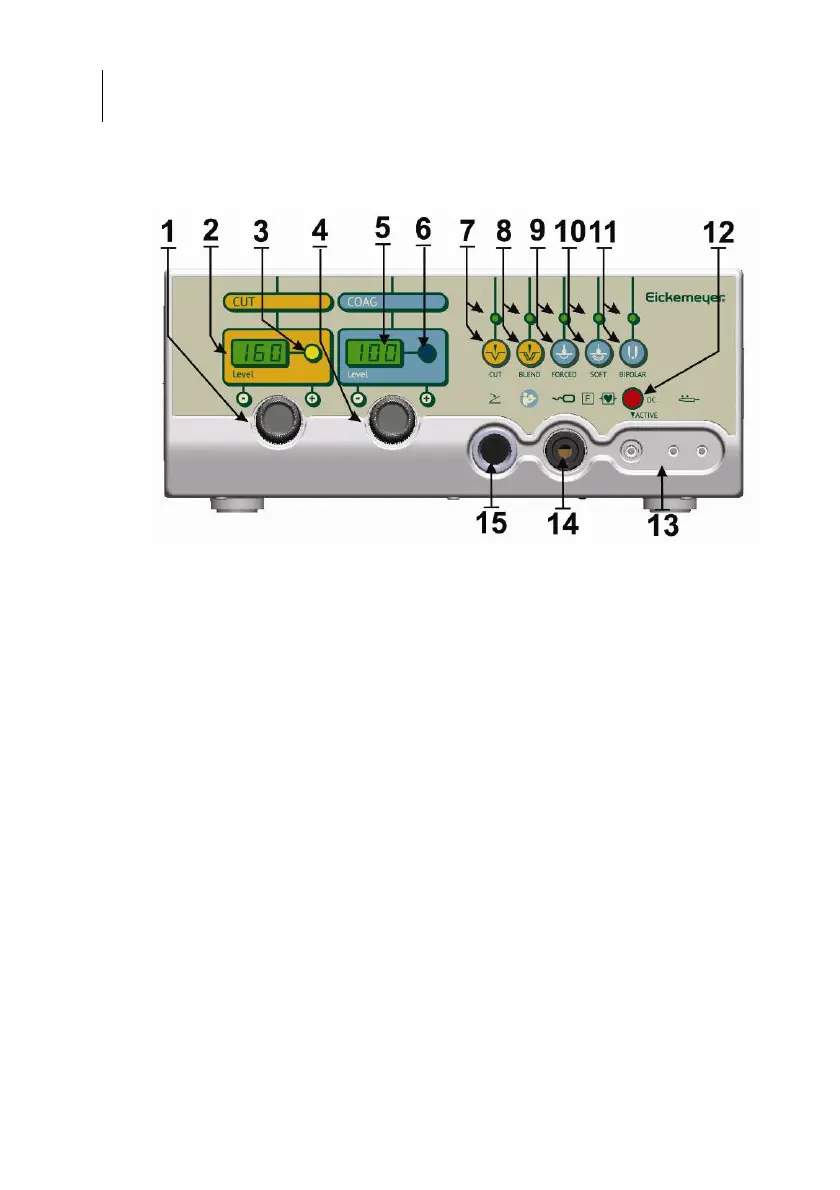

FrontalPanel
1Levelcontrolforcutcurrent
2Levelindicationforcutcurrent
3Outputindicationforcutcurrent
4Levelcontrolsforcoagulationcurrent
5Levelindicationsforcoagulationcurrent
6Outputindicationsforcoagulationcurrent
7SelectionkeyandlightforCUTfunction
8SelectionkeyandlightforBLENDfu
nction
9SelectionkeyandlightforFORCEDCOAGfunction
10SelectionkeyandlightforSOFTCOAGfunction
11SelectionkeyandlightforBIPOLARfunction
12Alarm
indicatorforexcessiveimpedanceintheneutralelectrodecircuit
13Handleconnectorforactiveelectrode‐holder
14Connectorforneutralelectrodeconnection
15Foot‐switchconnector
