5.1 System Installation
Please carefully read through and fully understand the method of use before installing the system, and check the components
for their completeness according to the packing list furnished. This system provides the following several usages, for the user
to select:

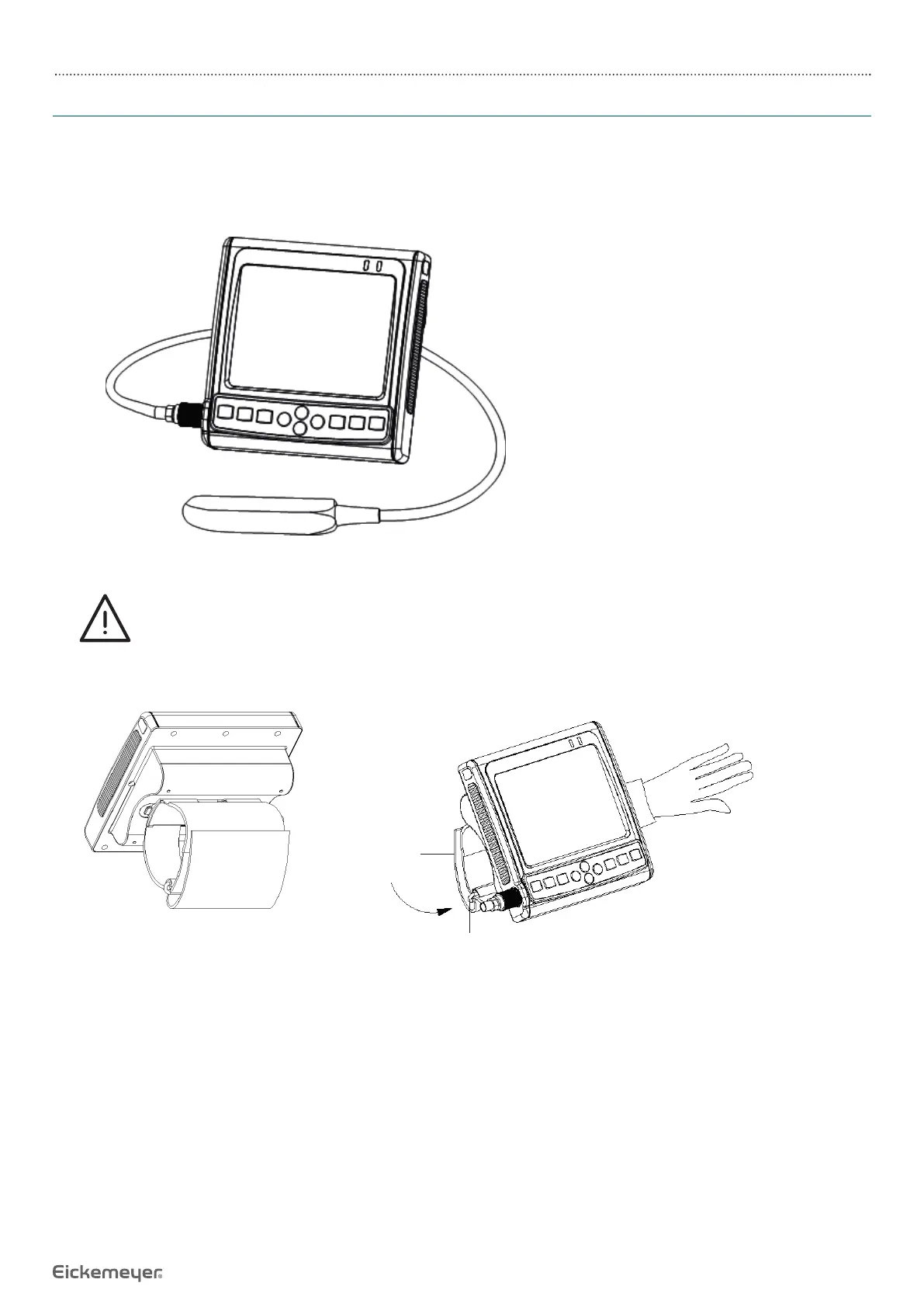

1. Place the instrument on a desktop to use.
2. Instrument fi xed in the arm to use.
Attention!
When using the armband, if allergy, please consult a doctor immediately and increase protective measures (e. g.
wear gloves before use).
Armband back ring
Armband
• Extend your arm into the armband according to arrow direction, or disconnect the armband to put on your arm, the
long end through the back ring.
• Strain the armband and stick it fi rmly on the Velcro.
3. Instrument used with the soft leather bag and hanging on the chest to use.
Installation
• Take out the instrument and accessory, put the instrument into the soft leather bag.
• The probe connector passes through the oval hole of the leather bag. Then install the probe.
• Install the straps on the rings of leather bag.
• Adjust the strap length, the one hung on the neck, the other one fi xed on the waist, you can also use a strap around
your neck or diagonal used in your shoulder.
