Eighteeth UltraMint - 4.4 Handpiece installation and removal

4 Installation
Page 12 / 35

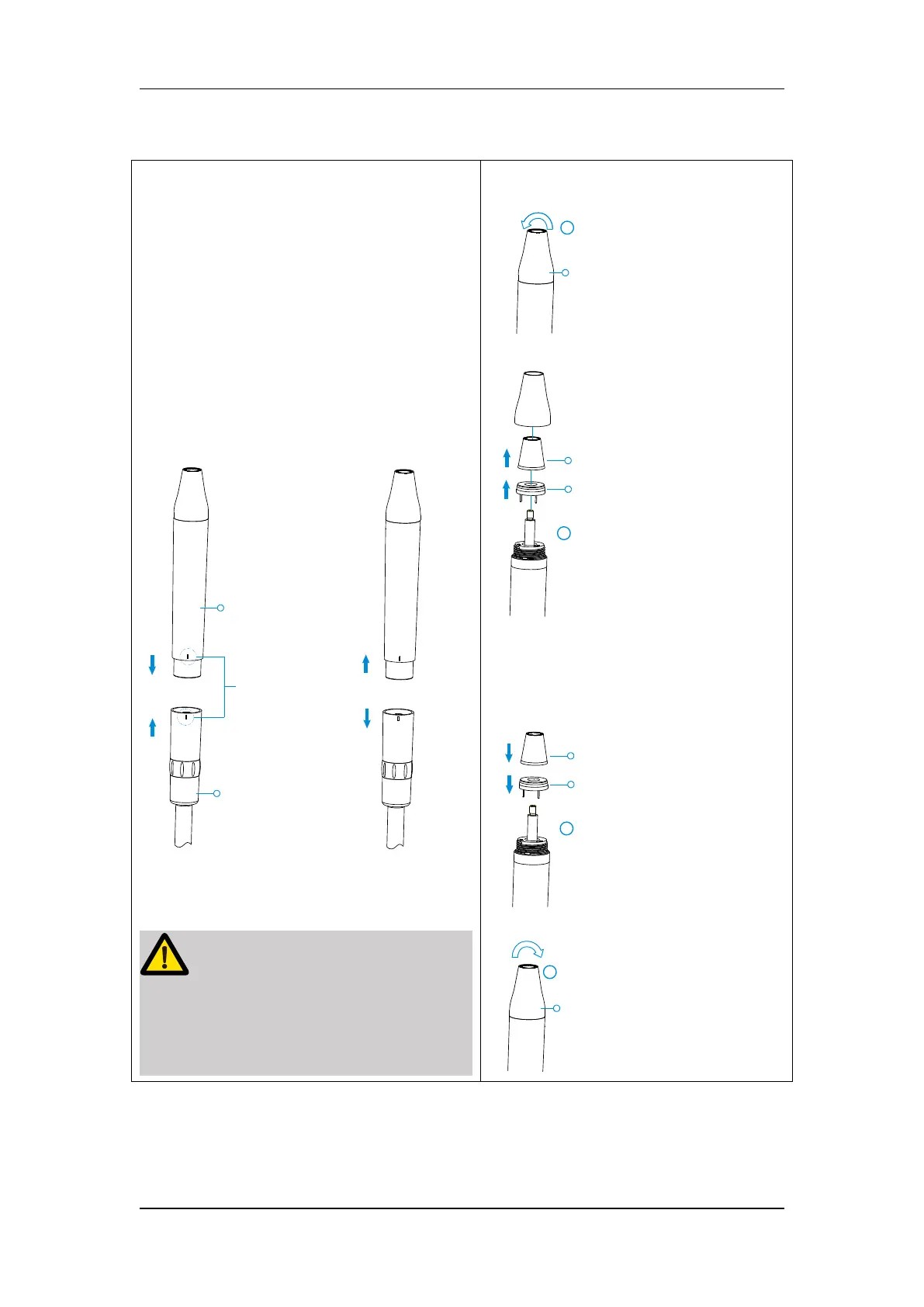

4.4 Handpiece installation and removal
4.4.1 Handpiece installation and
removal
Install and remove the handpiece as
shown below.
Note that before installation, align the
direction mark on the handpiece with the
direction mark on the connector of
handpiece cord, and then insert the
handpiece into the connector of the
handpiece cord.
Handpiece
Handpiece cord
Align
Removal
Installation
4.4.2 Lamp bead protective
shield and light guide and lamp
bead removal and installation
WARNING
Disassemble the light guide and lamp
bead from the handpiece, before
Cleaning, disinfection and sterilization
handpiece.
Light guide
Lamp bead
Take out lamp bead
protective shield by
r ing it counterclockwiseotat
Lamp bead
protective shield
1
Take out light guide and
lamp bead in order
2
Removal
Light guide
Lamp bead
Install light guide and
lamp bead in order
1
Installation
Install lamp bead protective
shield by r ing it clockwiseotat
Lamp bead protective shield
2
