Eighteeth UltraMint - 4.5 Tip installation and removal

4 Installation
Page 13 / 35

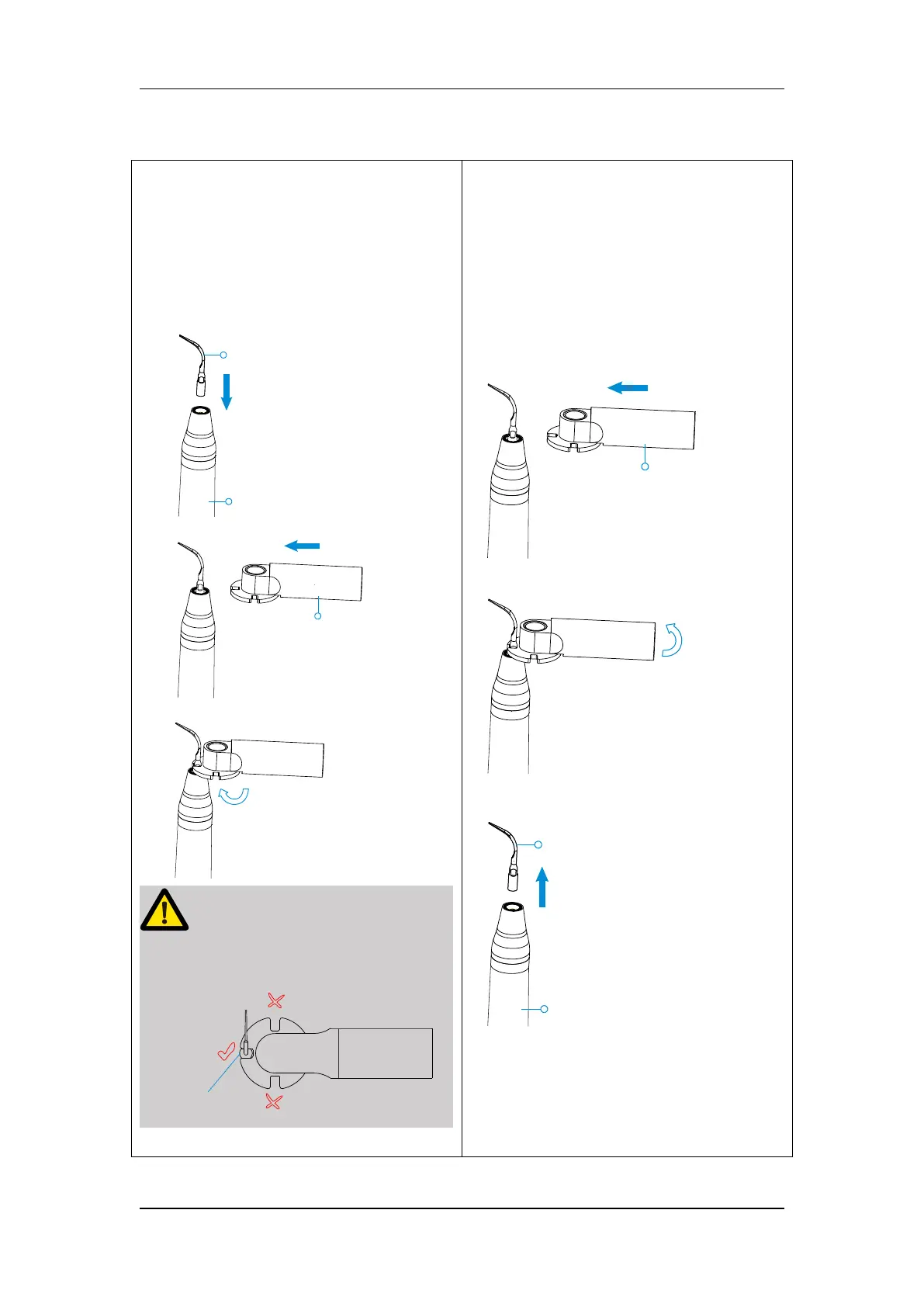

4.5 Tip installation and removal
4.5.1 Tip installation
1) Screw the tip to the handpiece.
2) Align the gap of the wrench with
the tip.
3) Rotate the wrench clockwise until
it turns 90 degrees.
Handpiece
Tip
Wrench
Rotate the wrench until
it turns 90 degrees
NOTE
1. Pay attention to the gap of the
wrench.
Use this gap
4.5.2 Tip removal
1) Align the gap of the wrench with
the tip.
2) Rotate the wrench
counterclockwise until the tip
becomes loose.
3) Unscrew the tip from the
handpiece
Handpiece
Tip
Wrench
Rotate the wrench until
the tip becomes loose
