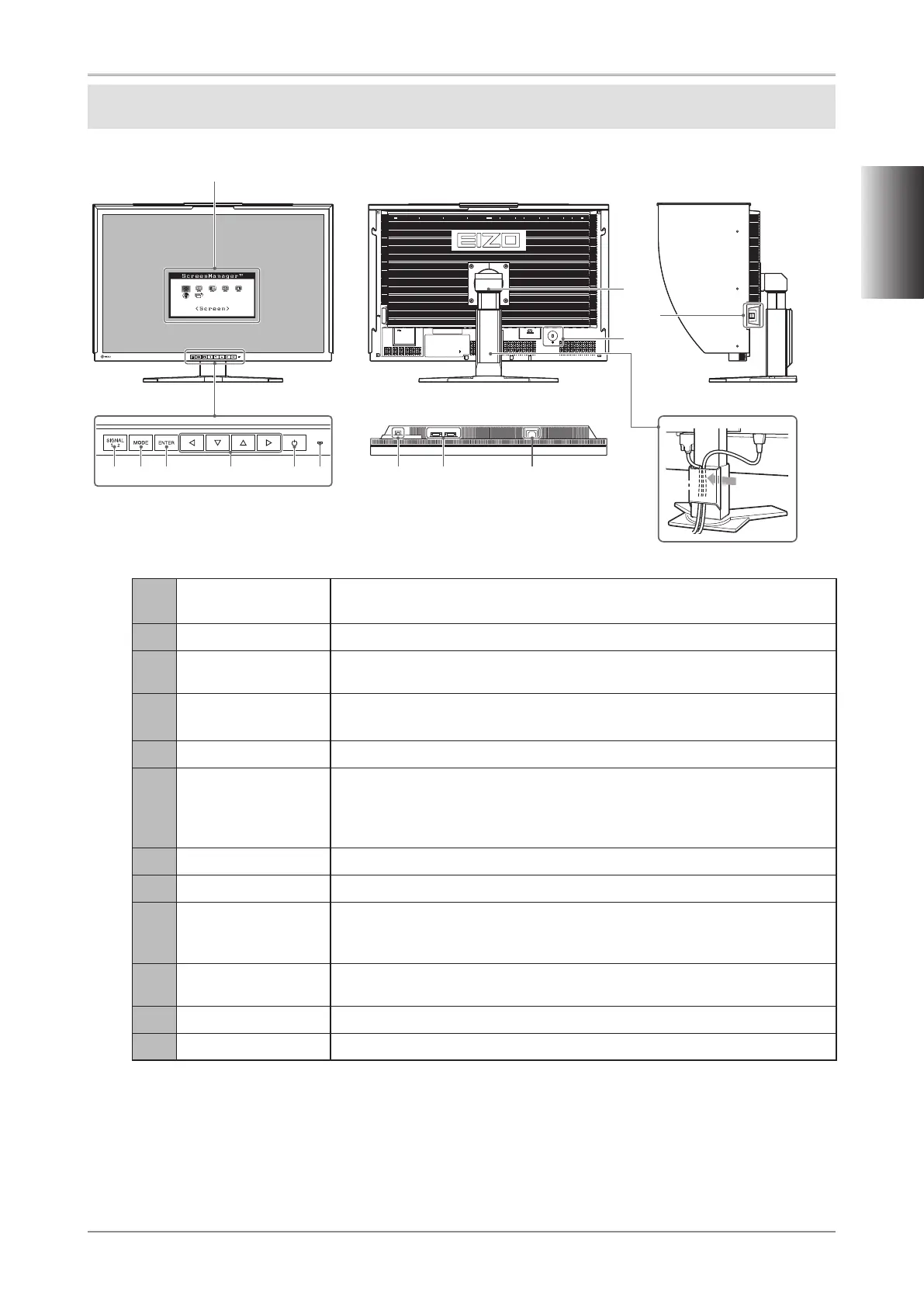

Controls and Functions
1
Input Signal Selection
button
Switches input signals for display when two PCs are connected to the monitor.
2 Mode button
Displays the Fine Contrast menu.
3 Enter button
Displays the Adjustment menu, determines an item on the menu screen, and
saves values adjusted.
4
Control buttons
(Left, Down, Up, Right)
Chooses an adjustment item or increases/decreases adjusted values for
advanced adjustments using the Adjustment menu.
5 Power button
Turns the power on or off.
6 Power indicator
Indicates monitor’s operation status.
Blue: Operating Orange: Power saving Off: Power off
When the timer is set for ColorNavigator, notifies that a recalibration is required
(for CAL mode or EMU mode).
7 Stand
Used to adjust the height of the monitor.
8 Security lock slot
Complies with Kensington’s MicroSaver security system.
9 USB port (UP)
Connects the USB cable in order to use the provided software. For how to use
it,
refer to the User’s Manual on the CD-ROM.
10 Input signal connectors
Left: DVI-D connector (SIGNAL1 DUAL LINK) / Right: DVI-D connector
(SIGNAL2)
11 Power connector
Connects the power cord.
12 USB port (DOWN)
Connects peripheral USB devices.
* S
creenManager
®
is an EIZO’s nickname of the Adjustment menu. (For how to use ScreenManager, refer to the User’s Manual on the
CD-ROM.)
Adjustment menu (ScreenManager
®
*)
1 2 3 4 5 6 9 10 11
7
8
12
