39
Chapter 7 Reference
Chapter 7 Reference

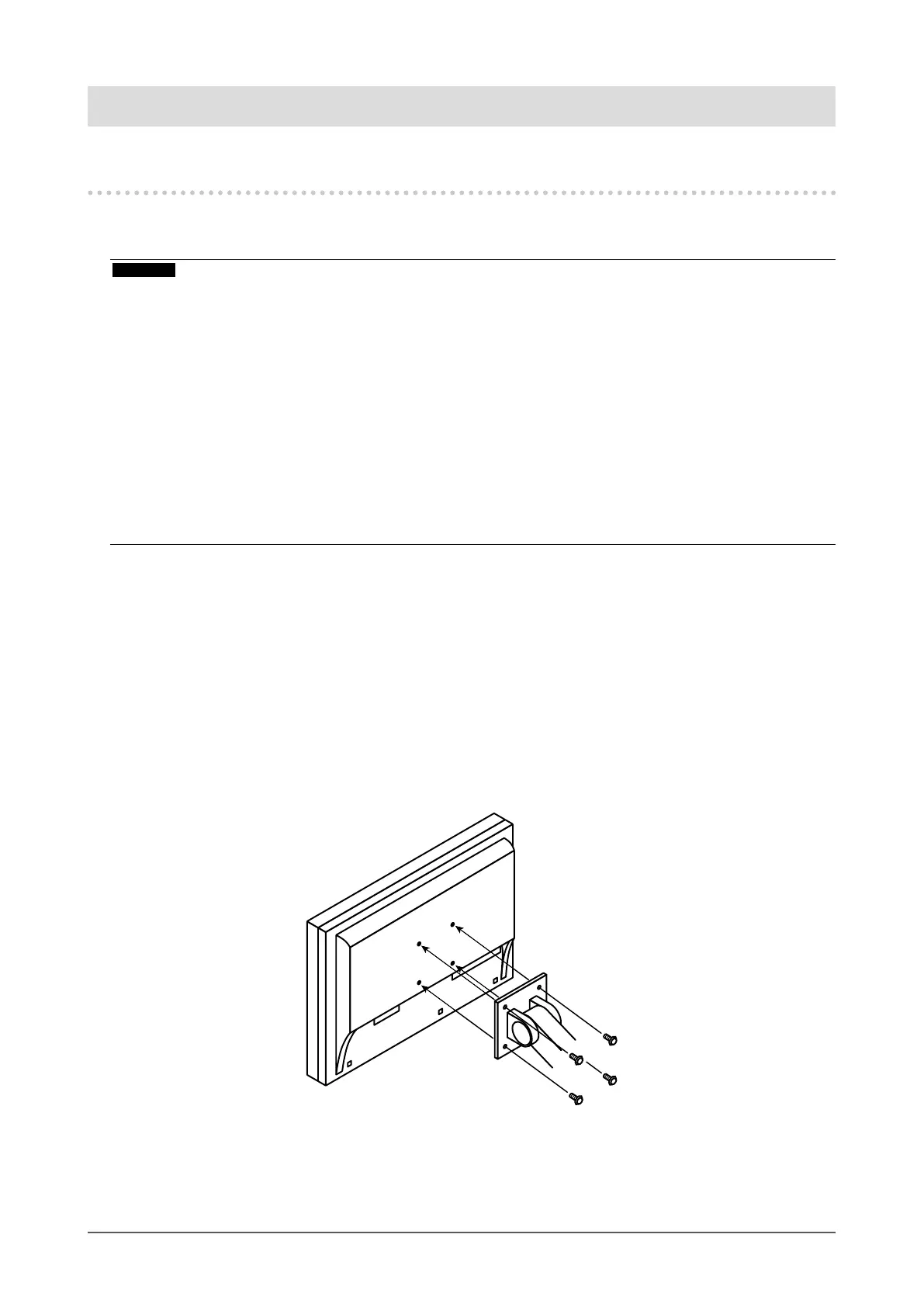

7-1. Attaching the Arm
This monitor can be installed with another compatible arm or stand by removing the standard stand section. Please
refer to our web site for corresponding arms (or stands). http://www.eizoglobal.com
Attention
When attaching an arm or stand, follow the instructions of their User’s Manual.
When using another manufacturer’s arm or stand, conrm the following in advance and select one conforming to the VESA
standard.
- Clearance between the screw holes: 100 mm × 100 mm
- Thickness of plate: 2.6 mm
- Strong enough to support weight of the monitor unit (except the stand) and attachments such as cables.
When using another manufacturer’s arm or stand, use the following screws to secure it.
- Screws xing the stand to the monitor.
When using an arm or stand, attach it to meet the following tilt angles of the monitor.
- Up 4, down 45˚
Connect the cables after attaching an arm or stand.
Do not move the removed stand up and down. Doing so may result in injury or device damage.
The monitor and arm or stand are heavy. Dropping them may result in injury or equipment damage.
When setting the monitor to the portrait style, turn the monitor screen 90˚ in clockwise direction.
Procedure
1.
Lay the LCD monitor on a soft cloth spread over on a stable surface with the
panel surface facing down.
2.
Remove the stand.
Prepare a screwdriver. Loosen the screws (four) securing the unit and the stand with the screwdriver.
3.
Attach the arm or stand to the monitor.
Secure the monitor to the arm or stand using the screws xing the stand to the monitor.
