Eizo CuratOR EX3242-3D Installation Manual

20
Chapter 4Chapter Reference

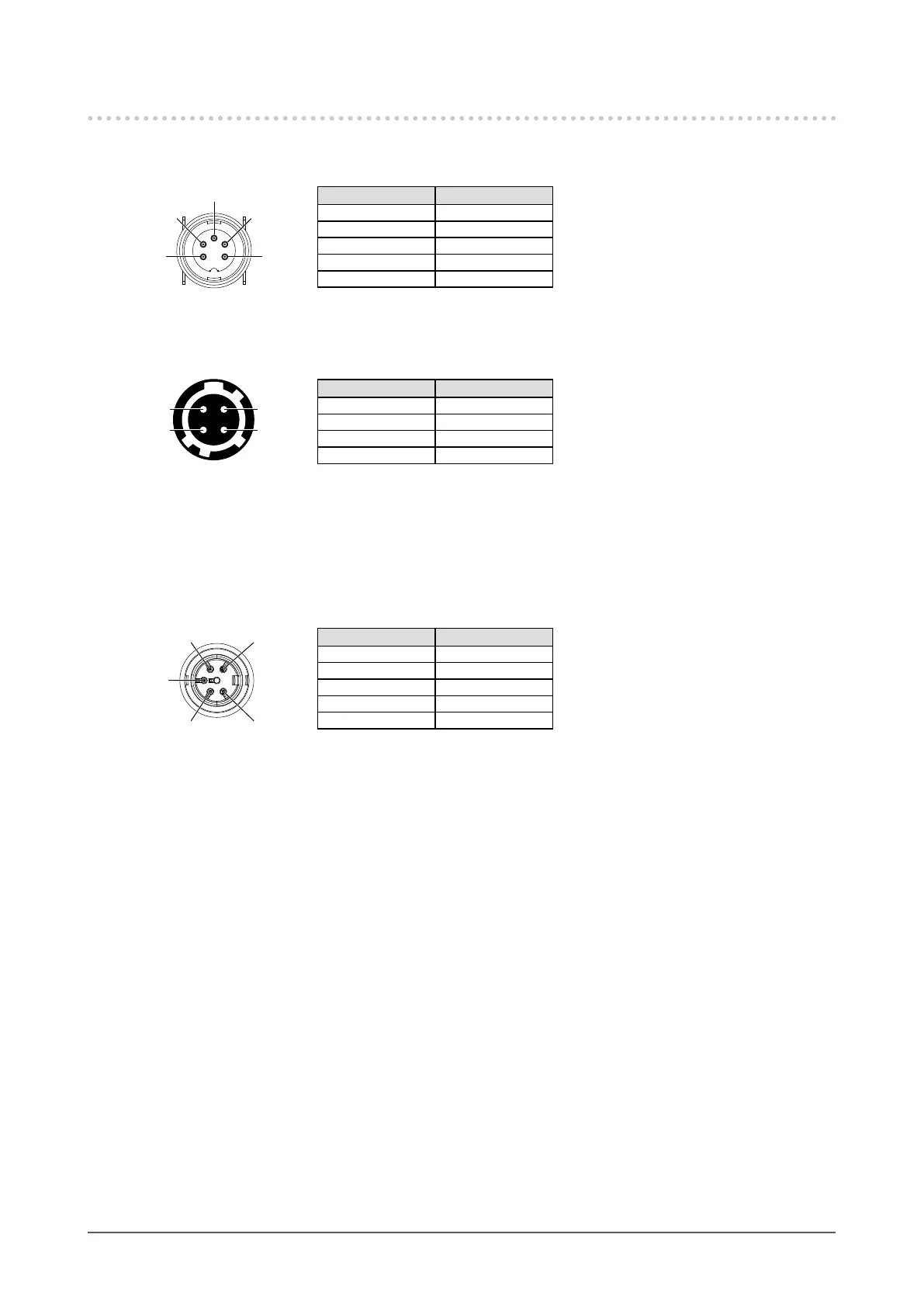

4-2. Pin Specications
●
DC IN terminal
1
2
3
4
5
Pin No. Signal name
1 GND
2 GND
3 F.E
4 DC 48V
5 DC 48V
●
DC OUT terminal on the main unit
1
23
4
Pin No. Signal name
1 GND
2 GND
3 DC 5 V
4 DC 5 V
HIROSE P/N: HR10A-7R-4S(74)
Recommended plug
HIROSE P/N: HR10A-7P-4P(74)
●
DC OUT terminal of AC adapter
3
2 1
54
Pin No. Signal name
1 GND
2 GND
3 F.E
4 DC 48V
5 DC 48V
