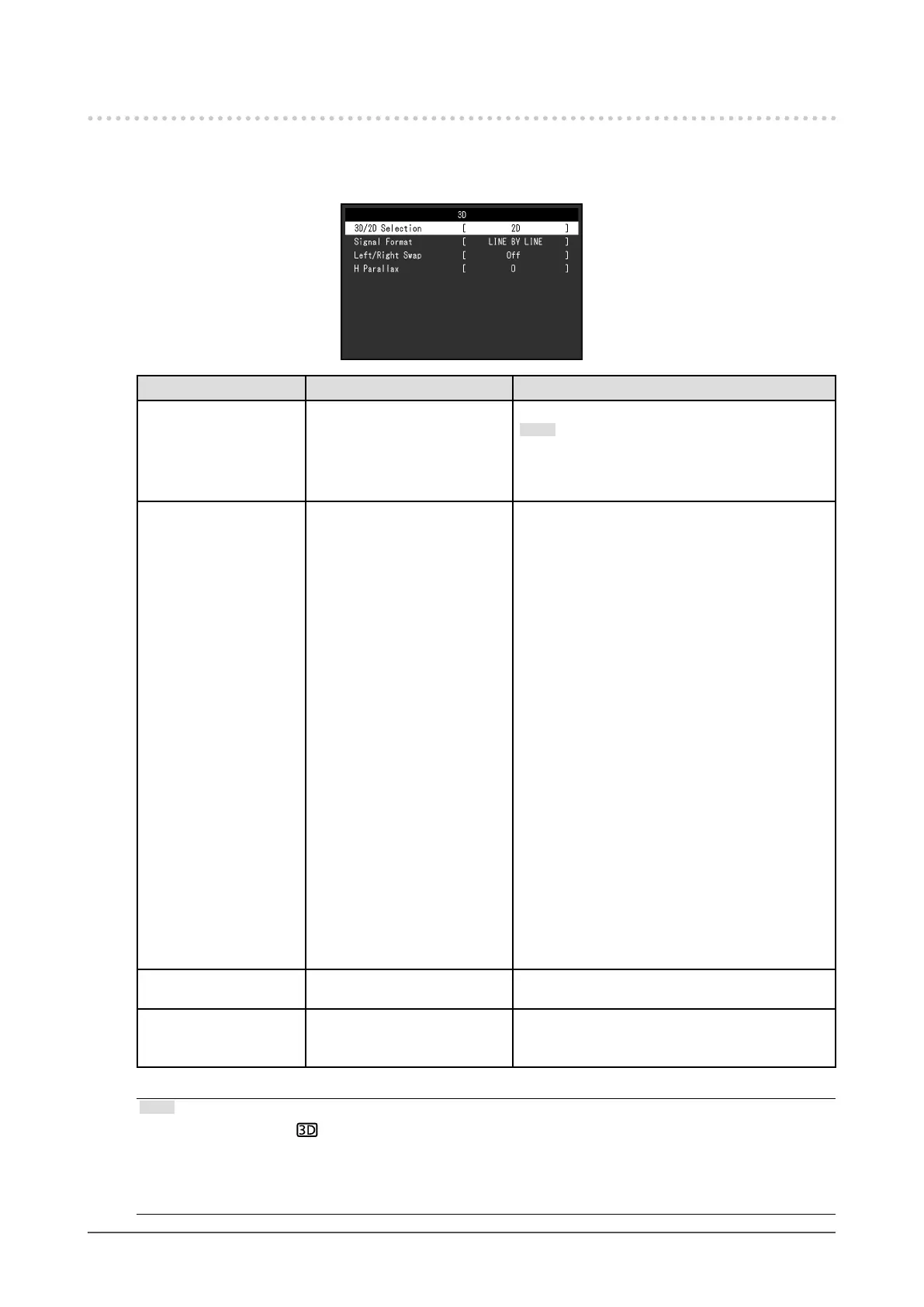

Chapter 2Chapter Advanced Adjustment / Setting
2-2. Setting Menu Functions
●
3D
Adjustments / settings for 3D display.
Function Setting Description
3D/2D Selection 3D
2D
Switches 3D/2D display.
Note
• Selecting "3D" will enable "Signal Format", "Left/
Right Swap", and "H Parallax".
• Fixed at "2D" during PbyP display.
Signal Format SIMUL
TOP AND BOTTOM
SIDE BY SIDE
LINE BY LINE
LEVEL B
Sets the signal format in 3D mode.
• "SIMUL"
Inputs left-eye signals from SDI 1 and right-
eye signals from SDI 2.
When using one screen:
This can only be set when "SDI 1" has been
selected in the input port menu.
During PinP:
This can only be set when "SDI 1" has been
selected in the "Large Window" for PinP
settings and when something other than "SDI
1" has been selected in the "Small Window".
• "TOP AND BOTTOM"
Inputs TOP AND BOTTOM signals.
• "SIDE BY SIDE"
Inputs SIDE BY SIDE signals.
• "LINE BY LINE"
Inputs LINE BY LINE signals. During PinP, if
the input signal is DisplayPort, HDMI, or DVI,
then it is xed at "LINE BY LINE".
• "LEVEL B"
This can only be set when "SDI 1" or "SDI 2"
has been selected in the input port menu. The
SIMUL method signal is input to SDI 1 or SDI
2 using dual stream.
Left/Right Swap O󰀨
On
Switches the displays of the left-eye signal and
the right-eye signal.
H Parallax -62 to 62
Adjusts horizontal o󰀨set of the left-eye signal and the
right-eye signal. If you do not experience a 3D e󰀨ect,
this may be improved by adjusting the parallax.
Note
• The 3D mode indicator is displayed on the upper left of the screen in 3D mode.
• When displaying 3D in PinP, be sure to observe the following:
- Only the large window will display the 3D image. The small window cannot display in 3D.
- The signal formats that can be selected may be di󰀨erent, depending on the input signal (PinP setting “Large
Window*1” (page 16) setting).
