EKOM DK50 2V/50 - 12. ELECTRICAL CONNECTION

INSTALLATION
NP-DK50 2V 50, 2x2V 110-A-5_06-2020-MD 32 06/2020
 Route the hose through the opening in the rear wall of the cabinet for compressor models with
a dryer and connect it to the vessel.
Risk of damage to pneumatic components.
Air hoses must not be broken.
12. ELECTRICAL CONNECTION
 The product is delivered with a cord equipped with a plug with earthing pin.
 Keep the socket easily accessible to ensure that the device can be safely disconnected from
the mains.
 Connection to the power distribution cabinet must be max.16 A
Risk of electric shock.
it is necessary to follow all local electrotechnical regulations. The mains voltage
and frequency must comply with the data stated on the device label.
Risk of fire and electric shock.
Electrical cable must not be in contact with hot compressor components.
Risk of fire and electric shock.
Electrical cord must not be broken.

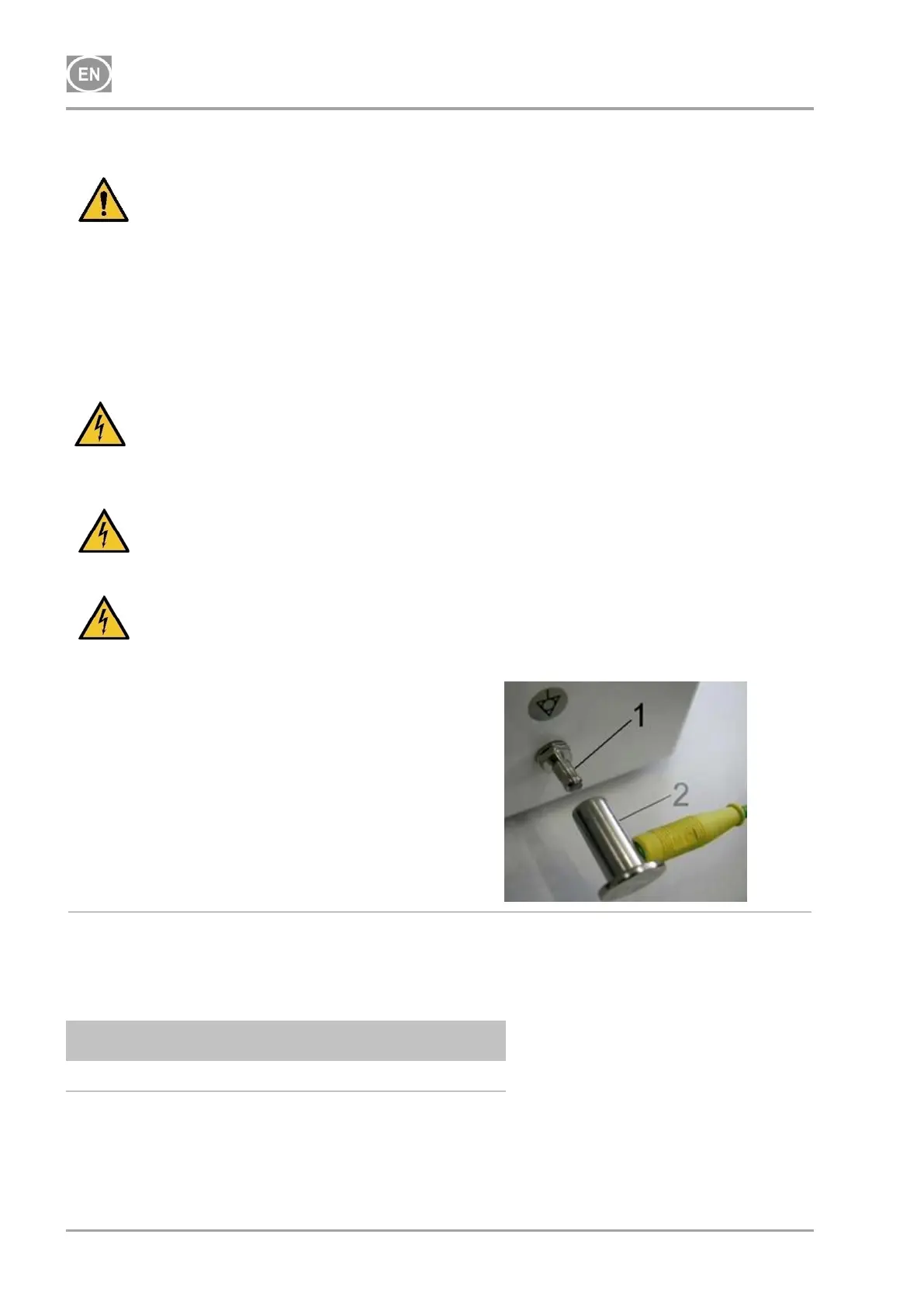

 Connect the pin for equipotential
bonding 6 mm (1) to the electrical
circuit using the defined method under
valid electrical engineering regulations
 The socket for equipotential bonding (2)
is an accessory and is not provided in the
basic package.
Fig. 11: Equipotential bonding
 Mount the connector of the grounding conductor on the door and screw on the cabinet.
Power supply connection – DK50 2x2V/110
Supply mains
Type of electrical
conductor
230V/50 (60) Hz
3Gx1.5x4000
400V/50 (60) Hz
5Gx1.5x4000
12.1. Connecting a compressor not installed in a cabinet
 Insert the mains plug into a rated mains socket.
