EKOM DK50 2V/50 - 11. PNEUMATIC CONNECTION

INSTALLATION
06/2020 31 NP-DK50 2V 50, 2x2V 110-A-5_06-2020-MD

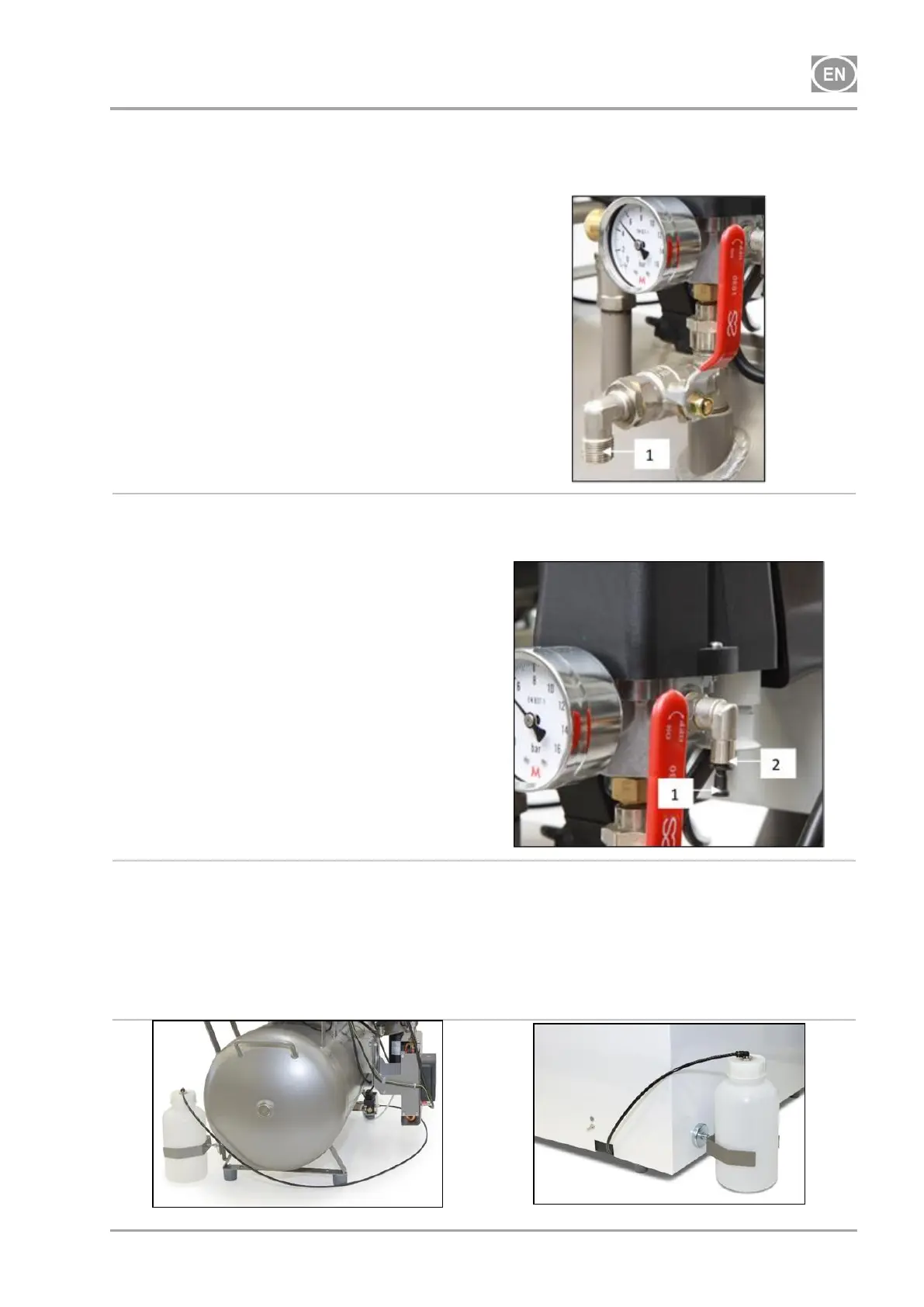

11. PNEUMATIC CONNECTION
11.1. Connecting to the compressed air outlet
 Route the pressure hose from the
compressed air outlet (1) to the
connected equipment.
 When the compressor is in the cabinet,
route out the power cord through the
opening in the rear wall of the cabinet.
Fig. 8: Connection of pressure hose
11.2. Connecting the cabinet pressure gauge to the compressor
 Remove the plug (1) from the threads (2)
on the pneumatic block of the
compressor
 Connect the cabinet pressure gauge
hose to the threaded fitting
Fig. 9: Connecting the cabinet pressure gauge to the compressor
 Route the pressure hose through the opening in the back wall of the cabinet (Fig. 10) on
compressors in cabinet.
11.3. Connecting the condensate vessel
 Connect the drain hose (1) to the condensate vessel on compressors with dryers (Fig. 10)
Fig. 10: Connecting the condensate vessel
