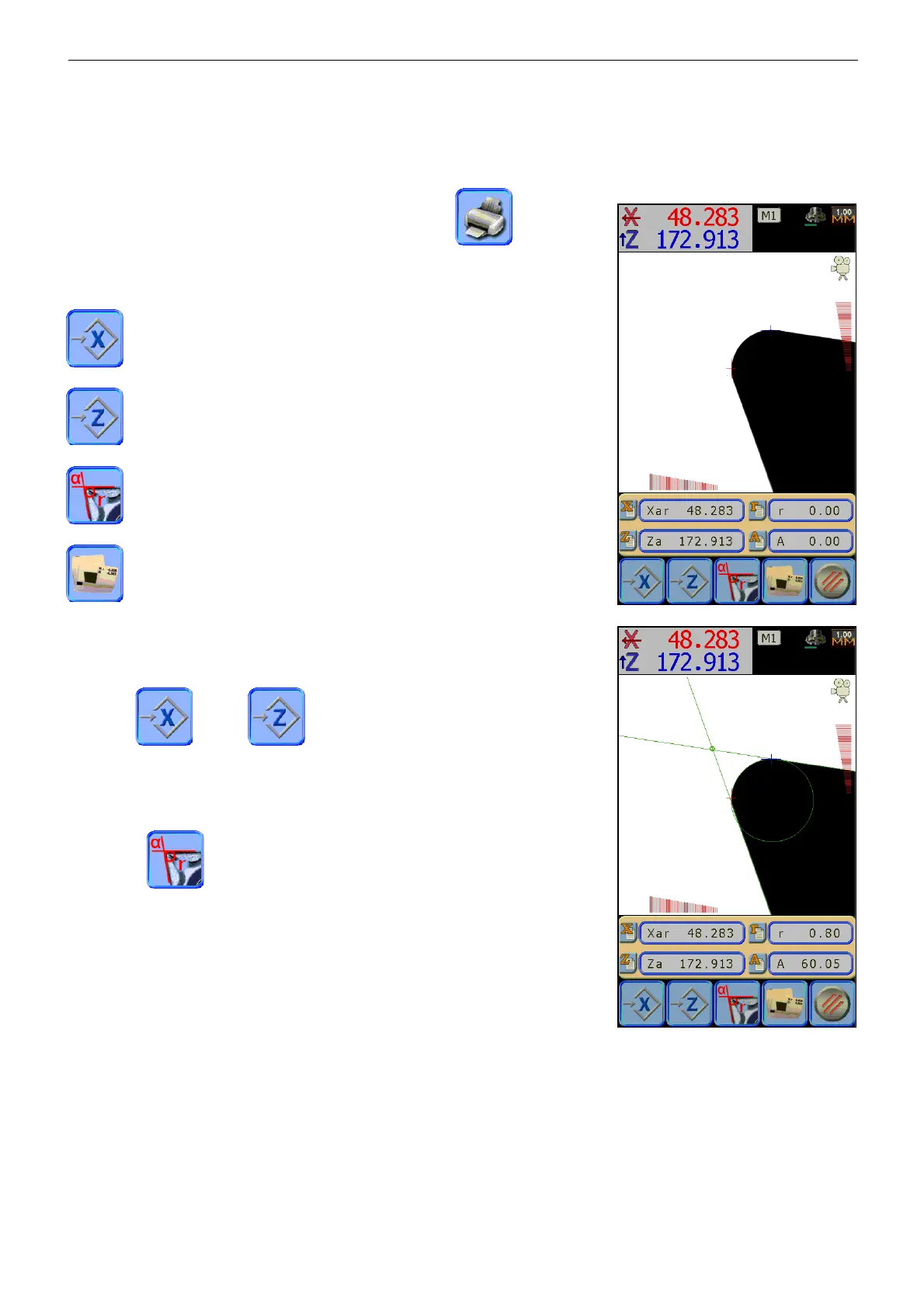

8.5 GEOMETRICAL CALCULUS AND LABEL PRINTING
By connecting the specific optional label printer s’Print-S, it is possible to transfer the measures of the tool
and its geometry onto adhesive thermal paper, including a small image with the shape of the tool.
To access the menu “print”, press the icon with the icon
.
The print menu includes the following commands:
Command to store the X axis dimension to be printed;
Command to store the Z axis dimension to be printed;
Command to carry geometric analysis of the tool profile and to
detect an inserts angle and radius;
Label printing icon.
In order to print the label at least one of the three settable data (dimension
X, dimension Z or insert angle/radius) has to be present.
Press the and/or icons, to memorize the tool dimensions;
the stored dimensions will be displayed in the area on top of the two
icons.
In case of error or inaccuracy you can press the icons repeatedly until the
stored measurement is correct.
Press the icon to carry out the analysis and the geometric
calculus of the tool profile: with the automatic measurement mode
activated, it will search for all the angles and radii to be found in the
profile. The result that can be printed on the label includes the first radius
and the first angle being found or, when detected, the included angle.
On the screen, there will be drawn, with the colour green, the detected
geometrical figures to carry out a quality control of the result.
When two or several angles are detected, the included angles being
calculated are highlighted with a circle, which is displayed on top of the geometry icon.
þ In case of the result wasn’t satisfied, verify the tool cleaning, therefore try to lightly rotate the spindle
and/or carry out short movement.
