11. TD236+ SOFTWARE ELBO CONTROLLI srl
Preset E236+
64

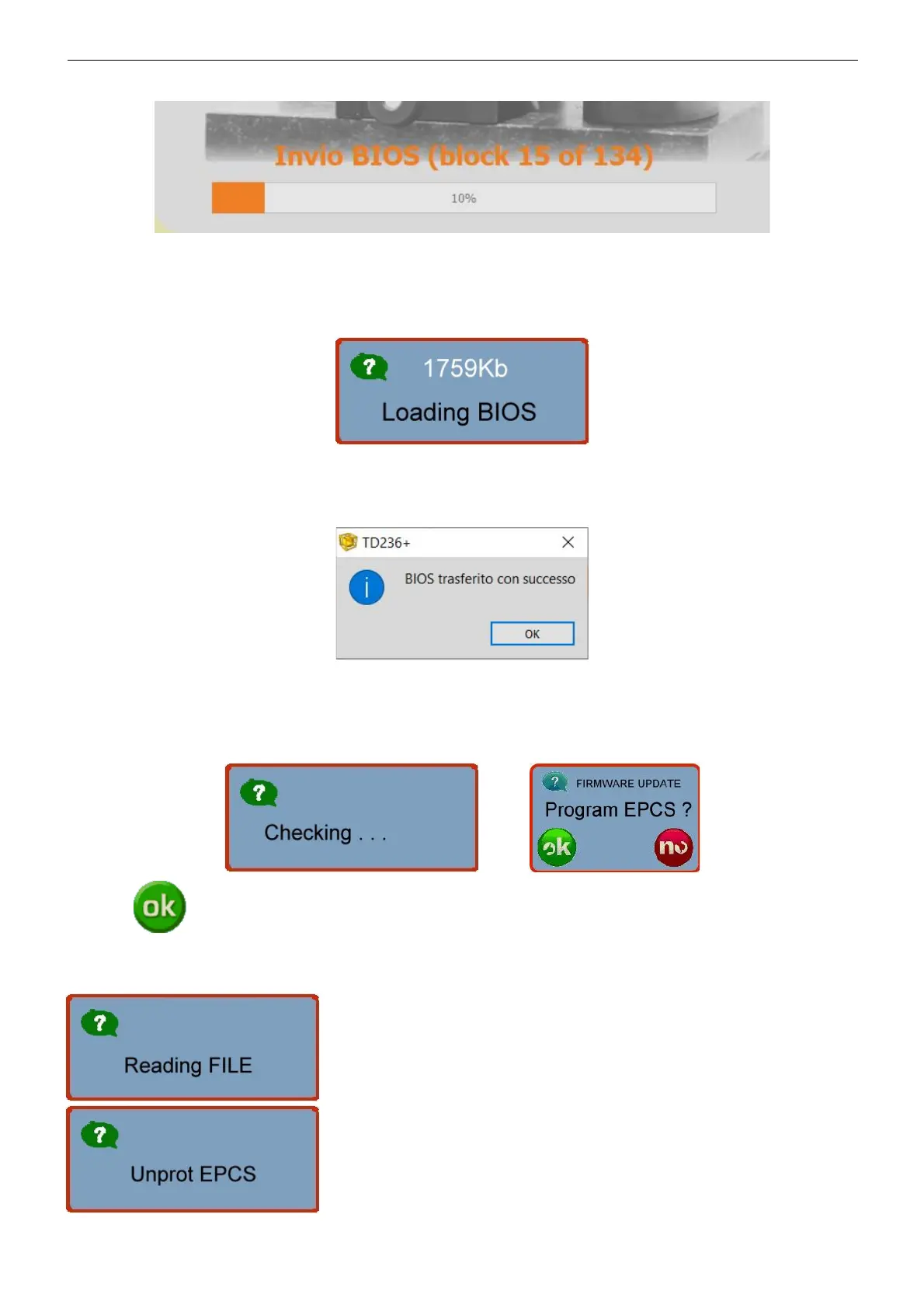

It will initialize the transmission of the file from the PC to the presetter; wait until the file transmission is
complete.
At the same time, also on the screen of the E236+ you can follow the flow of the data from the PC to the
presetter.
At the end of the data transfer, press OK on the window of TD236+.
At the finished reception E236+ will affect a check on the integrity of the file received, then ask to proceed
with the installation of the new software.
Pressing on the Presetter will initiate the installation of the new Bios and you’ll see in sequence the
following messages:
Reading the file received from TD236+
Overlooking the internal Flash memory
