Air in
Air out

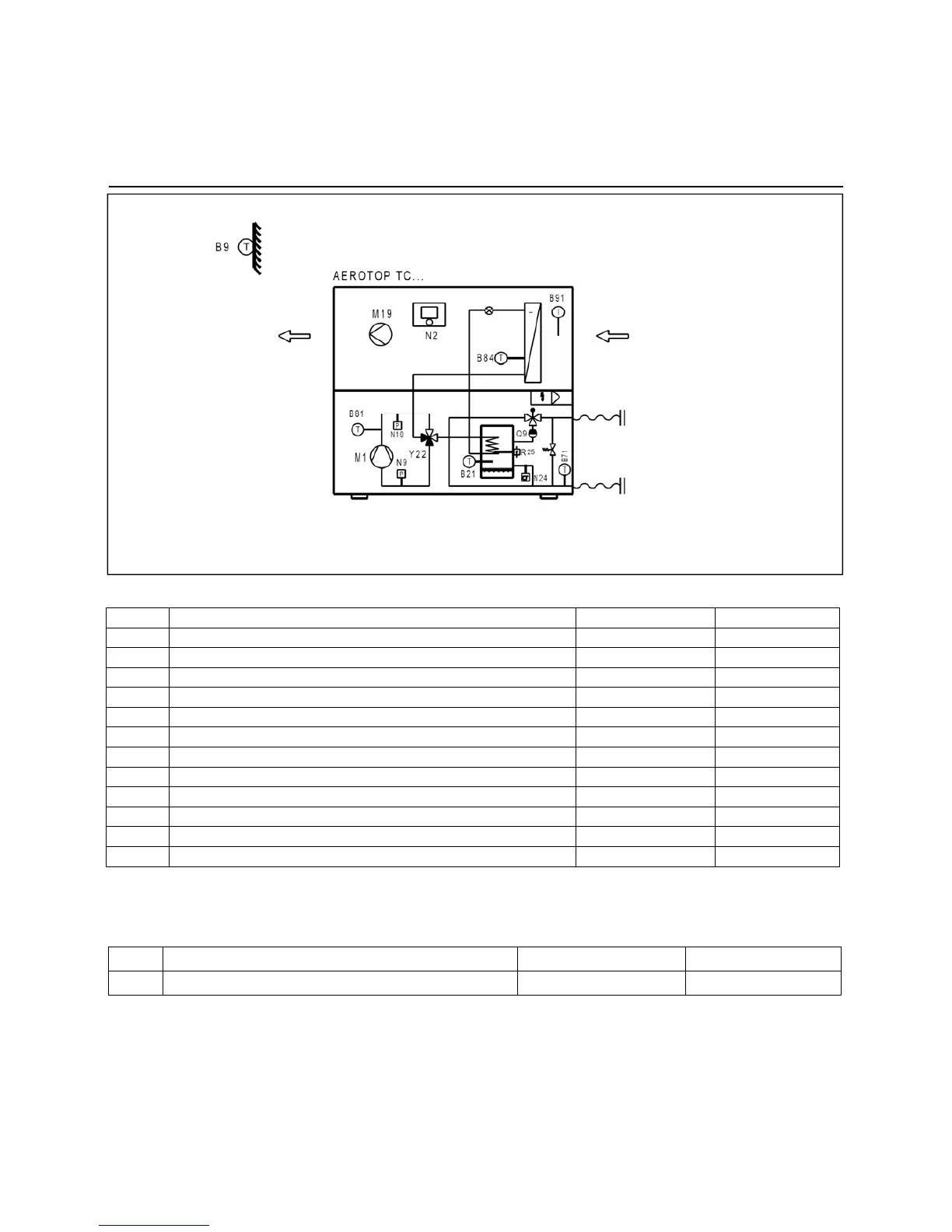

AEROTOP T..C..
Electrical Connections
Unit Design, Terminal Assignment
Description RVS61 Slot RVS61 Output
N9
Low pressure K E9
N10
High pressure K E10
Y22
Process reversal valve Y22 W QX1
R25
Electrical heater element 1 flow W QX2
B81
Hot gas temperature sensor 1 f B81
B21
Heat pump flow temp. sensor n B21
B71
Heat pump return temp. sensor q B71
B91
Source intake temp. sensor r B91
B84
Evaporator temp. sensor s B84/B92
M19
Fan z UX
N24
Flow monitor consumer P EX3
Q9
Condenser pump V Q9
Controller terminal assignment of components wired at the factory:
Description RVS61 Slot RVS61 Output
B9
Outdoor temperature sensor k B9
Other important components to be wired in the system
Please consult the electrical diagram of the heat pump for complete terminal assignments and electrical connections.
10
